Thread: The trailer thread

  1. #1
    Platinum Member Platinum Member ICDEDPPL's Avatar
    My Boats:
    38 Flatdeck
    Join Date
    Jun 2009
    Location
    Chicago
    Posts
    5,415

    The trailer thread

    I wouldn`t think the manufacturers would mind the info on here as it is public information.

    Some results of Trailer shopping for a 38 Fountain EC

    Good price but a screwed together trailer is ultimately not something I wanted.:

    Link to old web page http://www.mcclaintrailers.com/products.html


    Upgraded based on our conversation to an aluminum trailer model ATTRI-3818. This trailer comes with triple UFP torsion axles that have UFPs Vault, no maintenance for 5 years, sealed lubrication system, surge disc brakes on two axles. LED lights and PVC guides are standard. This trailer has a GW on 18K and carrying capacity of 15.5K The base price is $8580.
    Add the following for upgrades:
    $600 to upgrade to a trailer with 21K GW (if you prefer)
    $850 Electric over hydraulic
    $450 Spare & mount w/o hub
    $650 colored I-beam (black) if available from supplier
    $1155 7 @ $165 ea aluminum wheels
    $650 I would have to have boat to weld the bunks (not recommended)
    $100 Slicks Center board only
    $400 Classic package includes large classier steps and teardrop fenders

    Best load capacity, with EOH brakes , Electric jack , some bling, spare tire etc , closer to $18k and I did not like the look of the C channel or adjustable bunks


    Thank you for our inquiry of a Loadmaster Trailer for your 2002 Fountain 38 EC. We have quite a bit of experience with that boat and the trailer model that we have used with great success is our model 380R817.5SHR, which will be explained below.

    All of our trailers are made to order which means that every aspect of the trailer is custom for you and your boat. The axle placement is set properly to ensure good tongue weight, the bunks are set to support the boat and make loading and unloading effortless, and even the winch stand is designed for the boat. Our frames are constructed out a C-channel steel instead of aluminum or tubing steel that makes our frames stronger than aluminum and longer lasting than tubing steel because we can paint the inside of the frames so they dont rust from the inside out.

    Instead of the more common surge or hydraulic brakes Loadmaster uses electric drum brakes which are 50 state and Canadian legal unlike the surge. All our lights and electrical connections are sealed and submersible so when you back down into the water the brakes will work and not short out. We use all PPG products in our paint process and we start off with self-etching epoxy primer, then a coat of paint, followed by a coat of paint mixed with clear coat to give the showroom shine everyone likes.

    Your trailer model 380R817.5SHR
    Trailer constructed out of an 8 channel steel with bridgework
    Axles: three 8,000 lbs. drop center, sealed and submersible torsion with EZ Lube bearing system
    17.5 load range H tires rated at 4,805 lbs. per tire
    GVWR of 25,200 lbs. (this is max combined boat and trailer weight)
    Max Carry Capacity 21,825 lbs. (this is how much weight you can put on the trailer)
    Price not including tax or delivery $14,500.00

    Our current lead time is 3 weeks from the date of deposit and upon receiving this email if you have any further questions or would like any further information please let me know and I will be happy to help you out.


    Great service and follow up, good pricing, willing to do some custom lights etc, liked the lighter weight aluminum option... my second choice.

    Hi , hope things are going well and thanks for the interest in a Manning Marine trailer. A steel trailer to fit a 38 Fountain express cruiser would include the following:
    ------------------------------------------------------------------------------------------------------------------------------------------------
    all welded 8" x 3" steel tube frame
    3-7,000 galvanized torsion axles
    electric/hydraulic disk brakes on all 3 axles
    Kodiak disk brakes
    16" 8 lug aluminum wheels
    235/85/R16 E range 10 ply tires
    fit to boat
    LED lights-4 amber and 1 red clearance light per side- all clear lens
    stainless steel hardware
    v block bow stop
    7,000 lb jack
    Fulton 3,200 lb F2 winch
    fender steps
    sandblasted
    painted solid color of choice(a few colors may have small upcharge)
    -----------------------------------------------------------------------------------------------------------------------------------------------------
    $12,400 fender enclosures- $200 Matching mounted spare- $290

    Same specs as above but all welded aluminum trailer(galvanized torsion axles and plated rotors and calipers
    add $1,300)


    upgrade to 235/85/R16 F range 12 ply or G range 14 ply tires- $40 a wheel(8 lug wheels, tire would be
    based on rim style)

    upgrade to 10" steel tube frame- add $500


    (cheaper wheel and brake options are also available)


    Some other options- diamond plate toolbox- $375
    drive guard- $650
    dacromet plated rotors and stainless calipers- $600
    stainless brake lines- $300
    reverse lights- $200
    under hull lights-$450(choice of red,amber,white,blue, or green)
    electric jack- $575
    Goodyear tire- Unisteel tires- $190 a wheel
    air tight hubs- $600
    spare hub assembly mounted with spare tire- $250
    Custom stickers for side of trailer- quoted based on length,color, design,ect
    front ladder- $450
    gooseneck/fifthwheel- $2,500(steel trailer)

    Eagle per conversation $18k

    Evolution: After a nice conversation , never received a quote.

    Myco: Didn`t bother due to pricing



    Ultimately it came down to having the trailer measured and made for the boat, consensus with the above familiar with the Fountains was that Reggie kept changing the bottoms and no 2 boats fit on a trailer the same.I do not want adjustable bunks or fitment issues.
    Haul Rite is right in ROTO they will come out and fit the trailer to boat and Ed Champion (eddie) from Big Thunder marine can do all that without me coming down.
    He also had the best pricing easy to work with . They also use Vault axles.

    DVT38TRIPLE-HD************************************$10,020.00
    DISC BRAKES 3 AXLES
    EOH
    LED LIGHTS
    EXTRA LED CLEARANCE LIGHTS
    V-BLOCK
    ALUMINUM WHEELS
    16" RADIALS, 14-PLY
    7000# AXLES
    15,000# CAPACITY

    The trailer will not have the grommet style brake lights, they are rectangle and you can add the clear back-up lights for an additional $125.00

    I'll also have a few hours into pulling the boat and putting it on our trailer to be patterned.

    Not making any power with an off the shelf cam.

  2. #2
    Platinum Member Platinum Member ICDEDPPL's Avatar
    My Boats:
    38 Flatdeck
    Join Date
    Jun 2009
    Location
    Chicago
    Posts
    5,415
    I can go 8x2 frame with bridging:



    or 10x2 no bridging..






    I like the bridging .
    Not making any power with an off the shelf cam.

  3. #3
    bck
    bck is offline
    Charter Member#568 Charter Member bck's Avatar
    Join Date
    Dec 2000
    Location
    Western N.Y.
    Posts
    1,779
    Quote Originally Posted by ICDEDPPL View Post
    I wouldn`t think the manufacturers would mind the info on here as it is public information.

    Some results of Trailer shopping for a 38 Fountain EC

    Good price but a screwed together trailer is ultimately not something I wanted.:




    Best load capacity, with EOH brakes , Electric jack , some bling, spare tire etc , closer to $18k and I did not like the look of the C channel or adjustable bunks





    Great service and follow up, good pricing, willing to do some custom lights etc, liked the lighter weight aluminum option... my second choice.




    Eagle per conversation $18k

    Evolution: After a nice conversation , never received a quote.

    Myco: Didn`t bother due to pricing



    Ultimately it came down to having the trailer measured and made for the boat, consensus with the above familiar with the Fountains was that Reggie kept changing the bottoms and no 2 boats fit on a trailer the same.I do not want adjustable bunks or fitment issues.
    Haul Rite is right in ROTO they will come out and fit the trailer to boat and Ed Champion (eddie) from Big Thunder marine can do all that without me coming down.
    He also had the best pricing easy to work with . They also use Vault axles.




    Full width
    Straight bottoms and flat decks

  4. #4
    Registered
    My Boats:
    Progression 24 SOB
    Join Date
    Sep 2013
    Location
    Southeast Michigan
    Posts
    1,545
    In all those quotes, nowhere do I see "gold-plated trucker girl mud flaps". This disappoints me.

    I like the unbridged, but I'm not the one writing the check. The bridges look like 4 more flat surfaces to wipe down.

    What color are you getting?

  5. #5
    Gold Member Gold Member jbraun2828's Avatar
    My Boats:
    39 Lip-Ship Top Gun
    Join Date
    Oct 2007
    Location
    Grand Haven, MI
    Posts
    1,140

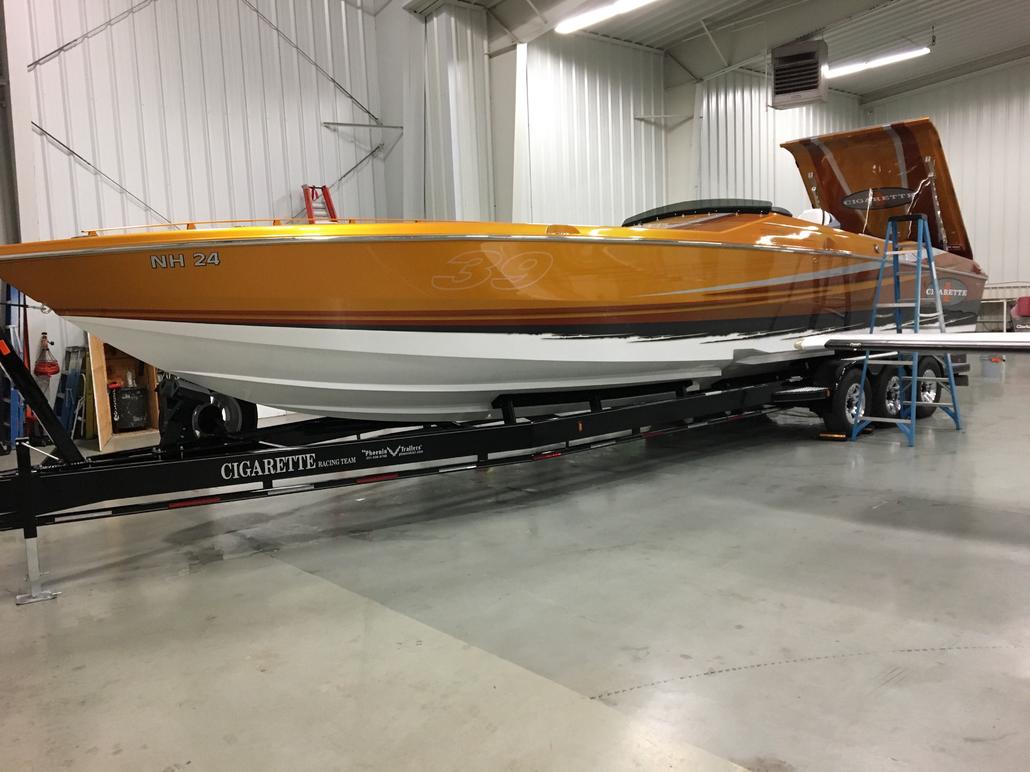

    Call Phoenix trailers and give them a shot. They're built in northern Mi. They built one for me a couple months ago, they even flew down to Miami to measure the boat. It fit perfectly and hauled great all the way from fl to Mi

  6. #6
    Platinum Member Platinum Member ICDEDPPL's Avatar
    My Boats:
    38 Flatdeck
    Join Date
    Jun 2009
    Location
    Chicago
    Posts
    5,415
    Quote Originally Posted by Speedracer29 View Post
    In all those quotes, nowhere do I see "gold-plated trucker girl mud flaps". This disappoints me.

    I like the unbridged, but I'm not the one writing the check. The bridges look like 4 more flat surfaces to wipe down.

    What color are you getting?

    The bridge could come in handy for tying stuff down..

    I`m not sure, what you think, RED or White?

    Quote Originally Posted by jbraun2828 View Post
    Call Phoenix trailers and give them a shot. They're built in northern Mi. They built one for me a couple months ago, they even flew down to Miami to measure the boat. It fit perfectly and hauled great all the way from fl to Mi

    Nice trailer! How do you like the black color for getting dirty and cleaning?
    Last edited by ICDEDPPL; 01-10-2017 at 06:59 PM.
    Not making any power with an off the shelf cam.

  7. #7
    Lee
    Lee is offline
    Gold Member Gold Member Lee's Avatar
    Join Date
    Oct 2000
    Location
    Lake St.Clair MI
    Posts
    1,605
    I'd go with the10x2 no bridging, all those welds on the 8x2 bridging is the first thing to start rusting and it is right in your face.

  8. #8
    Registered
    My Boats:
    Progression 24 SOB
    Join Date
    Sep 2013
    Location
    Southeast Michigan
    Posts
    1,545
    Quote Originally Posted by ICDEDPPL View Post
    The bridge could come in handy for tying stuff down..

    I`m not sure, what you think, RED or White?
    I'd never even considered the advantage of the bridging for tying stuff down. Putting movable quick-release buckles on the bridging- WINNING.

    Having a red and white boat myself, the only two colors that interest me are RED and natural (aluminum).

  9. #9
    Platinum Member Platinum Member ICDEDPPL's Avatar
    My Boats:
    38 Flatdeck
    Join Date
    Jun 2009
    Location
    Chicago
    Posts
    5,415
    The future Fountain scank (wife) says Silver to match the truck, seems dumb, but different.





    I love Red, it`ll probably be RED
    Speedracer29 and Knot 4 Me like this.
    Not making any power with an off the shelf cam.

  10. #10
    Registered
    My Boats:
    Progression 24 SOB
    Join Date
    Sep 2013
    Location
    Southeast Michigan
    Posts
    1,545
    Tell her you value her opinion immensely, and as such, the wheels and safety chains will be silver. But the trailer frame will be RED.
