Has anyone redone their dash panel to add a Garmin flat screen? I want to keep some of the Gaffrig gauges but incorporate a flat screen in the center… using our phone with a mount for Navionics sucks!

Yep.. Ive redone mine a few times… This is the latest and should be the last. Go9 Simrad and added my gps speedo.
The 2nd one below was my first try when I still had BBCs.

https://cimg9.ibsrv.net/gimg/www.off...0a52defee.jpeg
https://cimg4.ibsrv.net/gimg/www.off...133694d79.jpeg

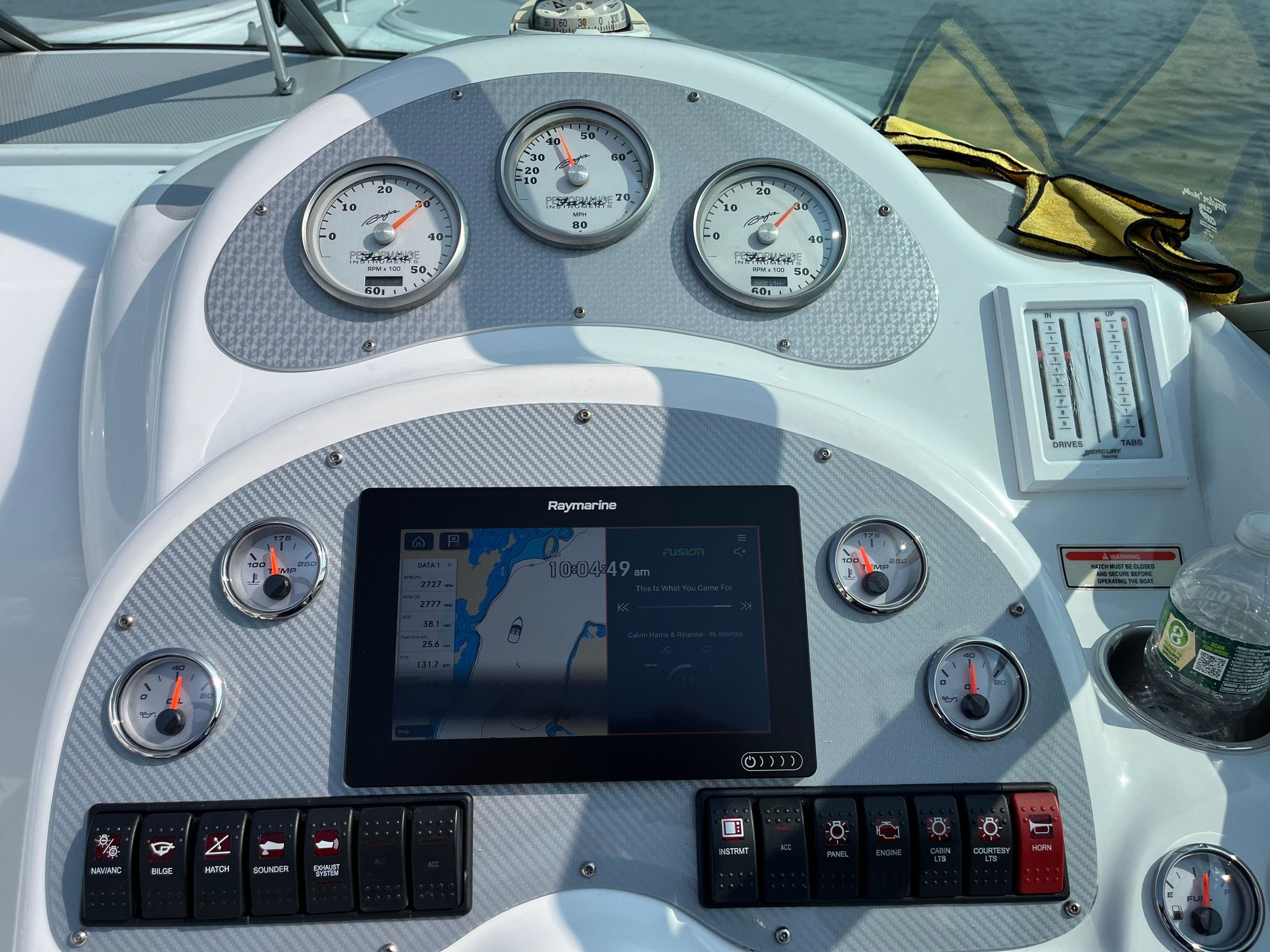

Not an Outlaw, but a 342. All of the engine data is pumped into the Raymarine Axiom 9. I kept analog oil pressure and water temp gauges for redundancy.


https://cimg5.ibsrv.net/gimg/www.off...2027fecc2.jpeg

Which boat do you have? I have the AutoCAD drawings for all the 33 Outlaw panels.

is there any way to get the files from you?

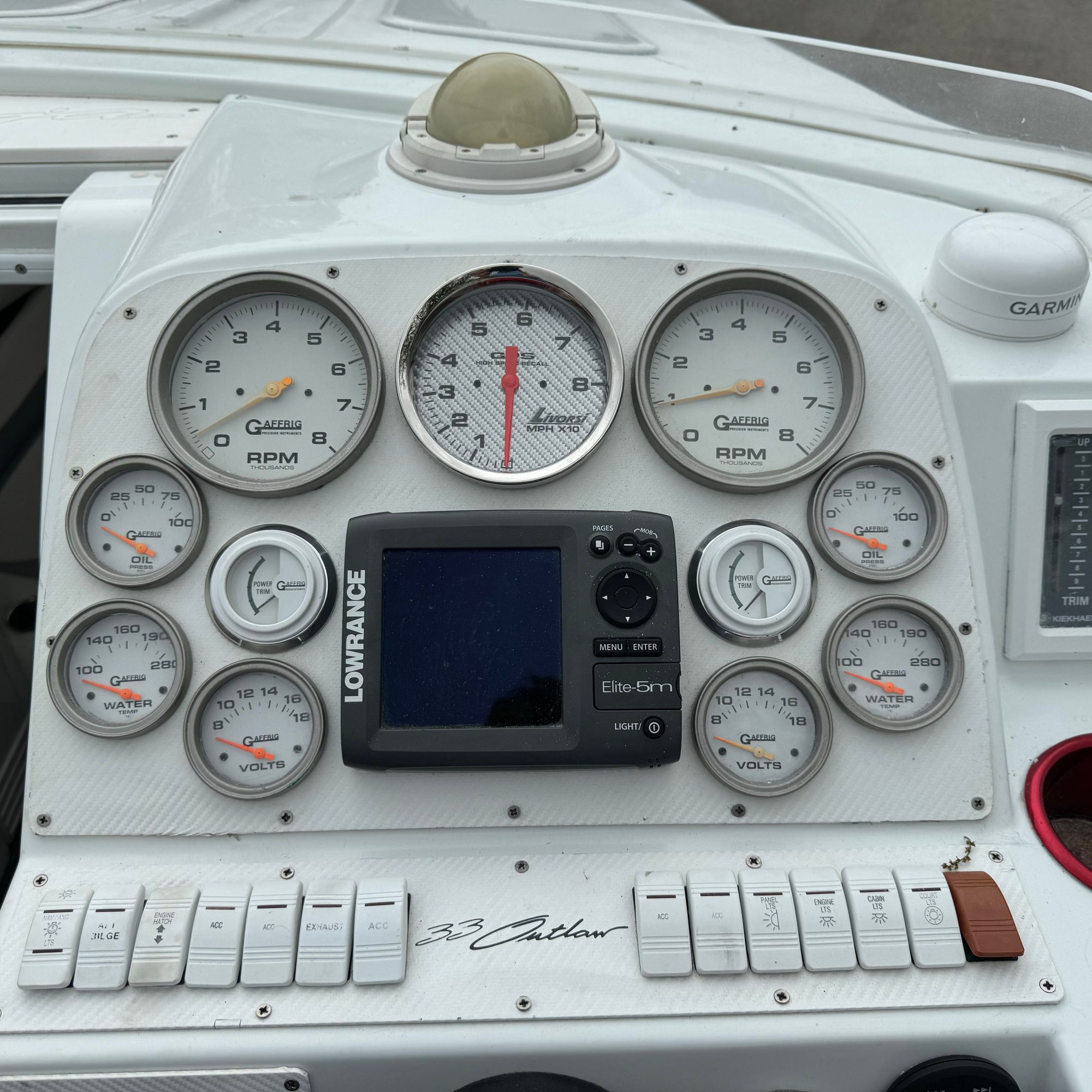

this is my 33 and might be updating panels in the future

https://cimg9.ibsrv.net/gimg/www.off...9d9b93c71.jpeg

2004 30' ol

2004 30’OL
https://cimg4.ibsrv.net/gimg/www.off...ab9a607fb.jpeg

Hello

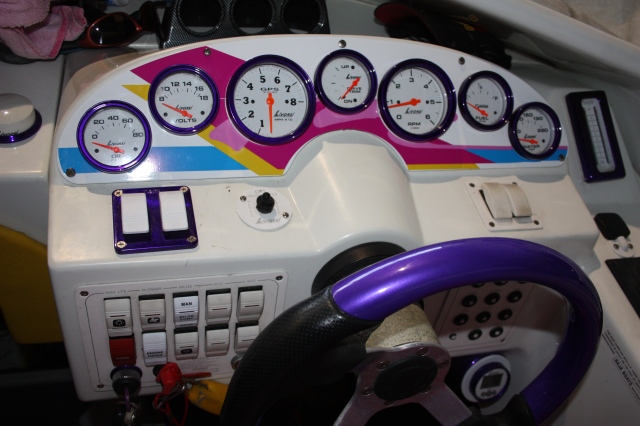

My 24 Outlaw

https://si3.photorapide.com/invites/...4/08qo2a8t.jpg

GO9 and GO12

https://cimg0.ibsrv.net/gimg/www.off...e134111126.jpg

Finally got it done, but the starboard ignition fuse is blowing. A little research says might be a gauge issue. Do the gauges we removed need to have the electrical loop still connected?

Any help appreciated! TIA.
