Default Fastech dash redo with pics

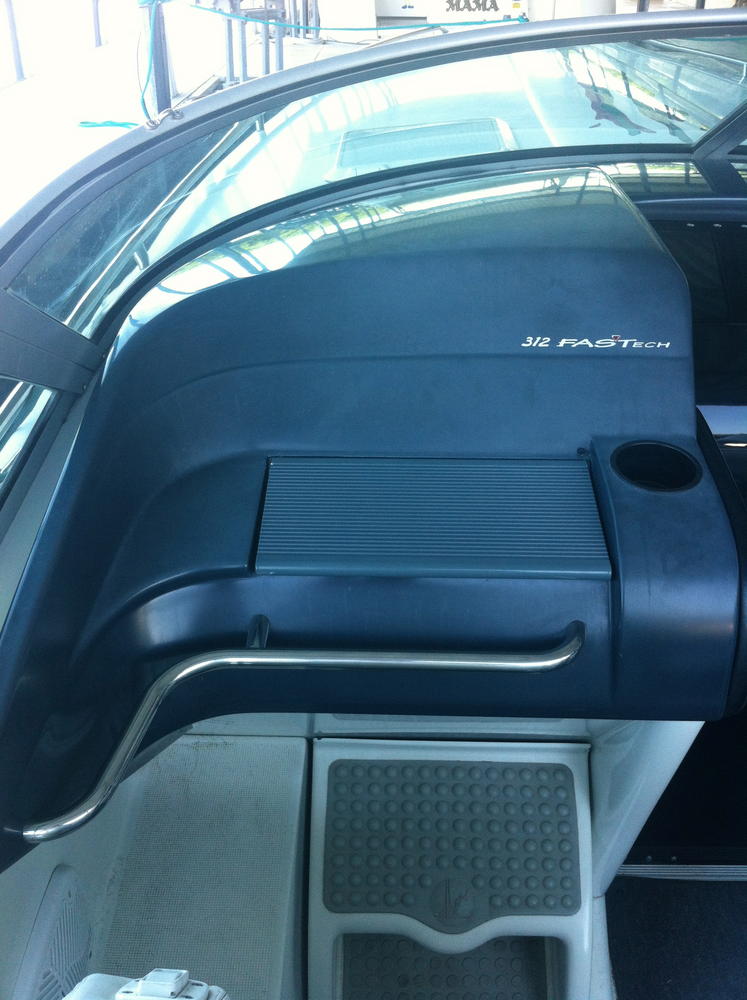

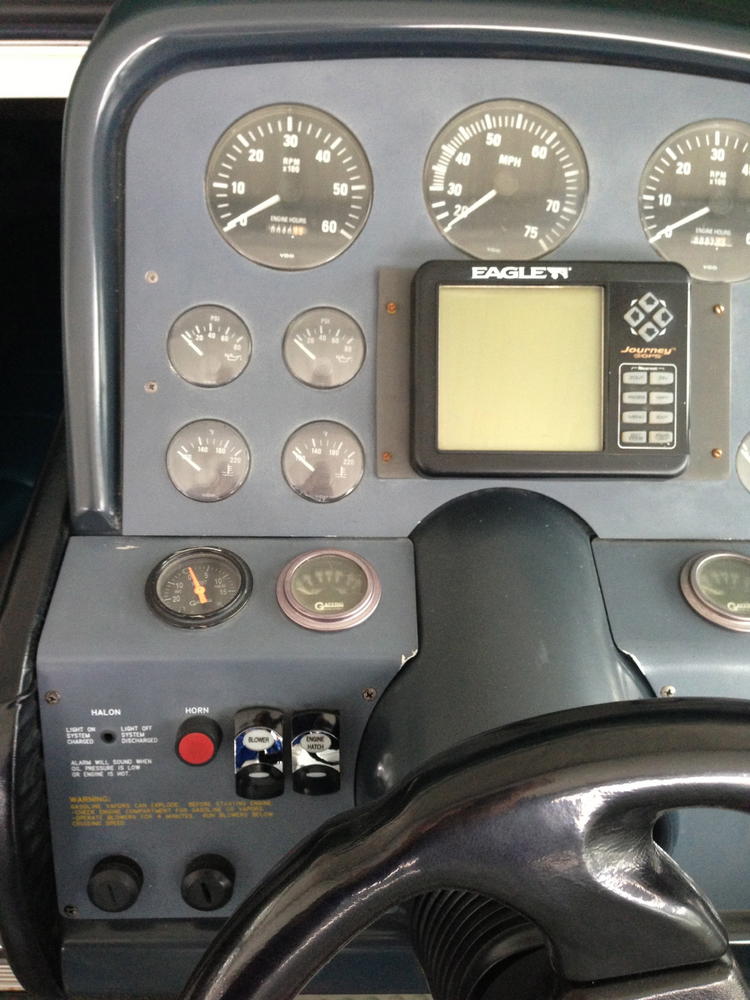

Well I couldn't resist posting this any longer. Decided to redo the dash of my 97 312 Fastech (probably against my better judgement) over the winter and have finally started to see the fruition of all the work. Bought the 312 last summer and it was in dire need of some TLC. The previous owners had left it out in the elements which caused the dash to fade and loose its shine. All the instrument panels had become weathered and off-color. Needless to say I knew I had a big project ahead of me but thought the re-do would be fun.

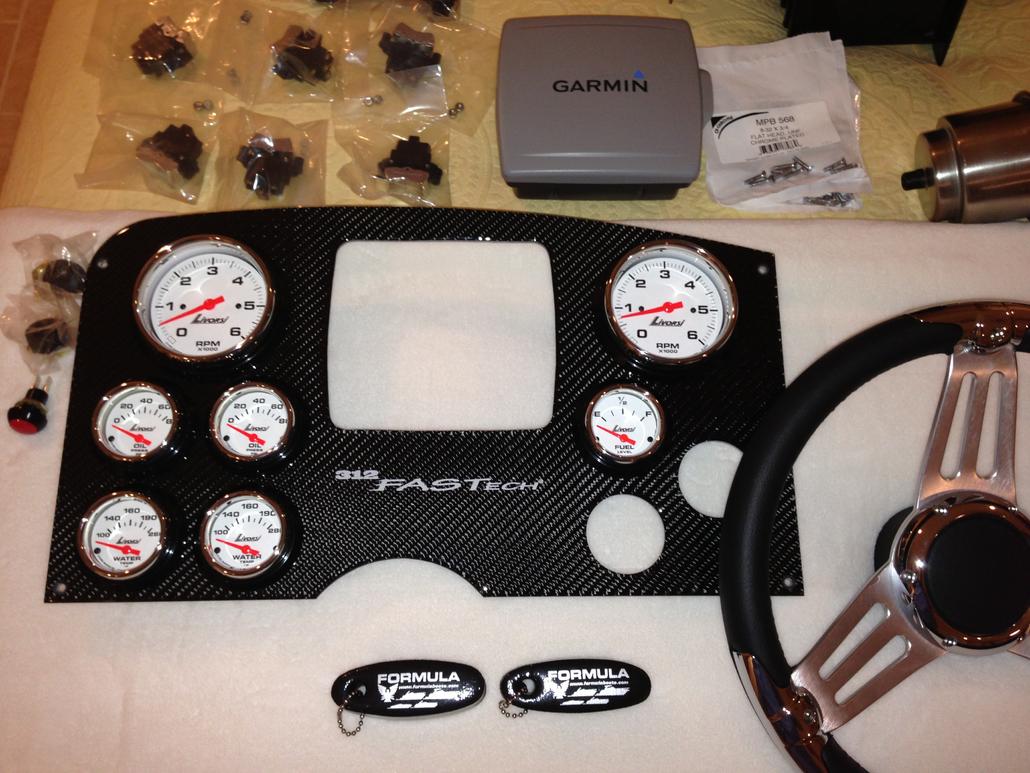

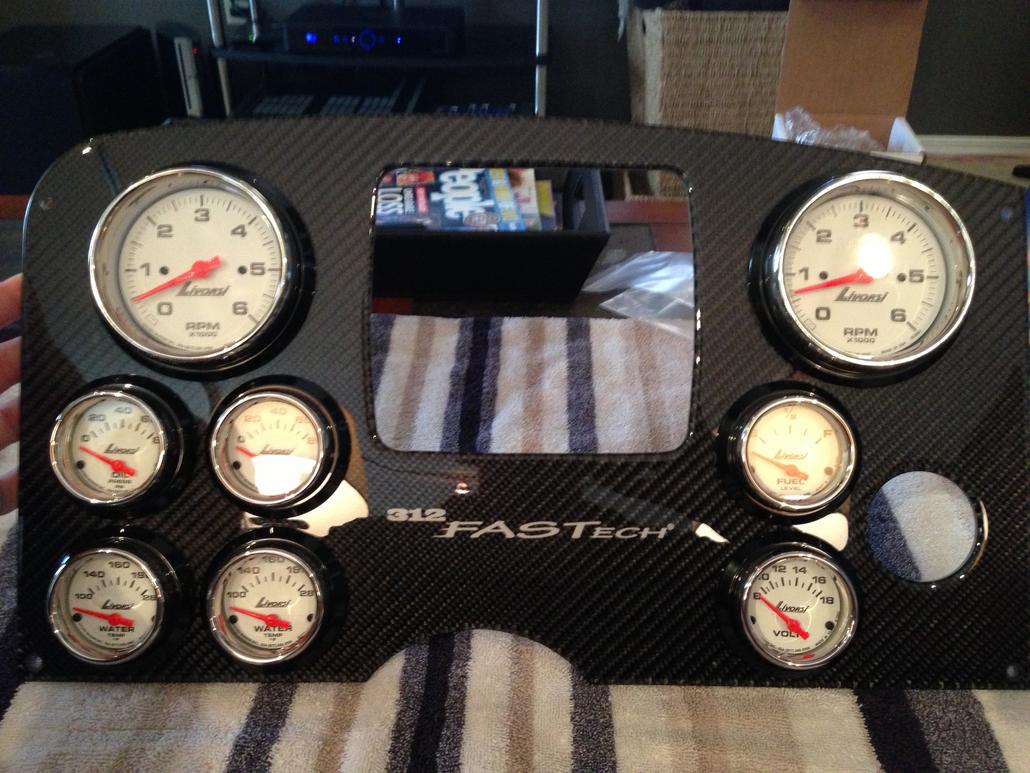

I decided to have the new dash panels made out of carbon fiber and go with Livorsi gauges. Had the dash repainted and am just now getting things put back together. Had the throttles powder coated and then glossed.

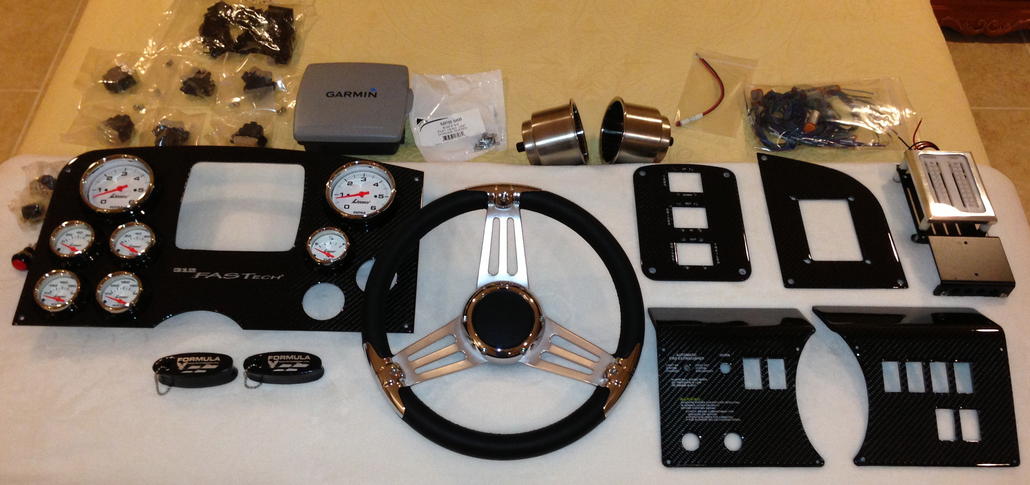

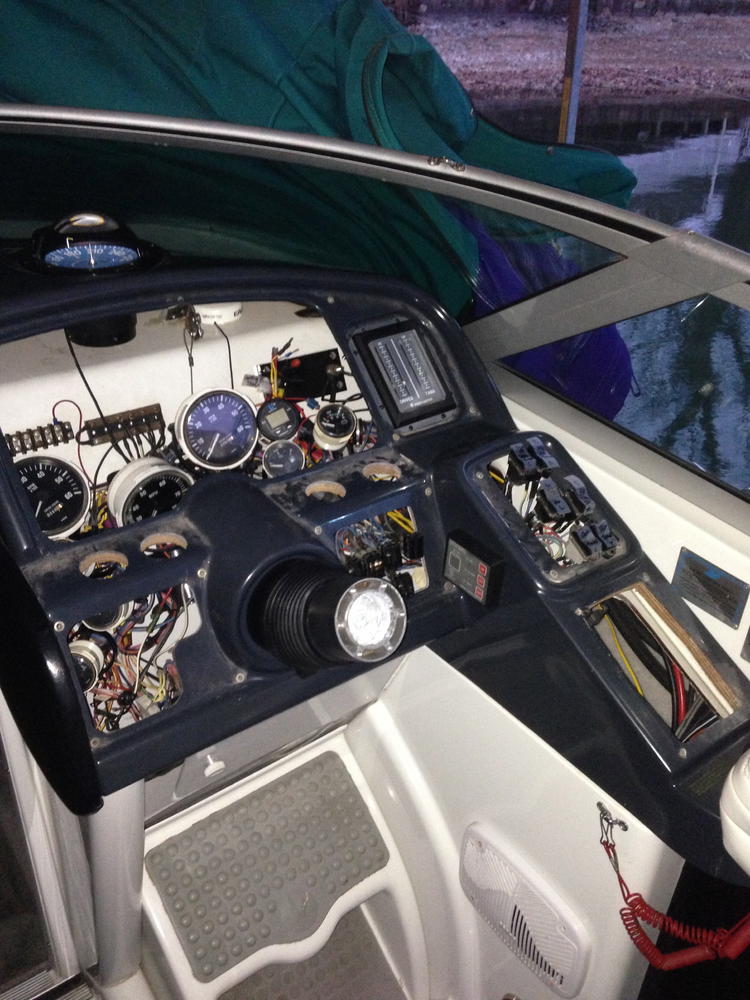

Below are some before, during, and now pics...still in the final stages of reassembly but should have it finished in about 2-3 weeks. Will post additional pics as I get things reassembled.
Enjoy
Attached Thumbnails Fastech dash redo with pics-photo%5B2%5D.jpg   Fastech dash redo with pics-img_0633.jpg   Fastech dash redo with pics-img_0789.jpg

Fastech dash redo with pics-img_0826.jpg   Fastech dash redo with pics-formula-boat-dash-painting-002.jpg   Fastech dash redo with pics-formula-boat-dash-painting-006.jpg

Fastech dash redo with pics-img_0918.jpg   Fastech dash redo with pics-img_0931.jpg   Fastech dash redo with pics-img_0922.jpg

Fastech dash redo with pics-img_0925.jpg
paaka937 is offline
Old 03-17-2013, 09:16 PM
  #2
Registered
Platinum Member
Thread Starter

Join Date: May 2012
Location: LOTO
Posts: 81
Likes: 0
Received 1 Like on 1 Post
Default

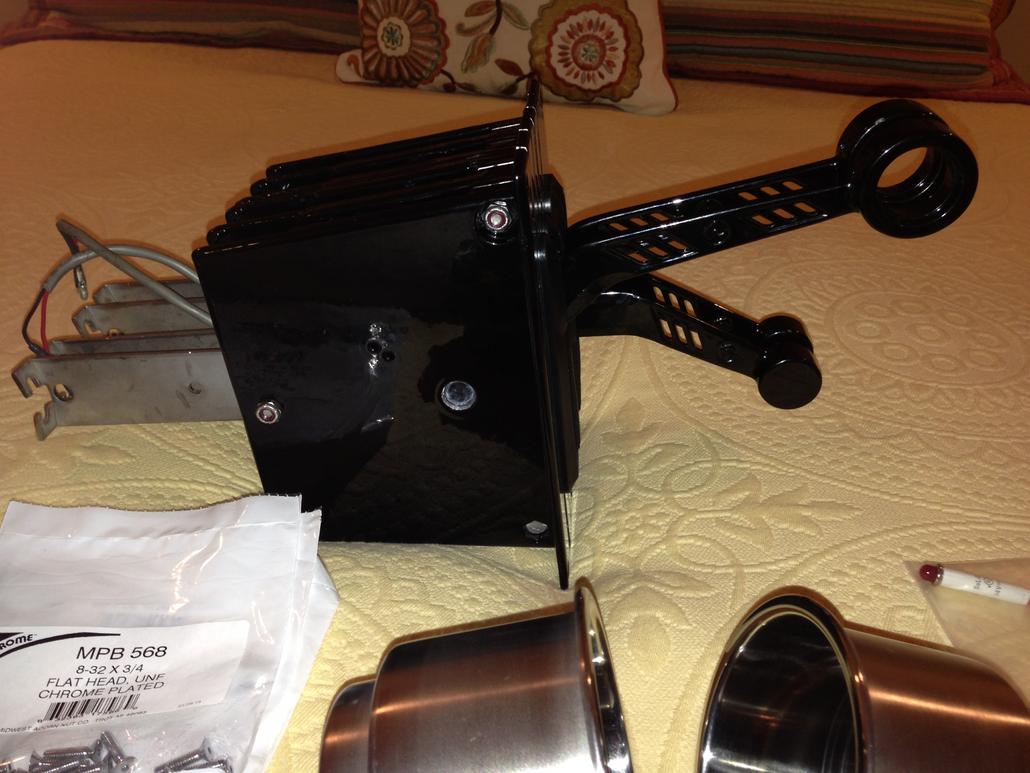

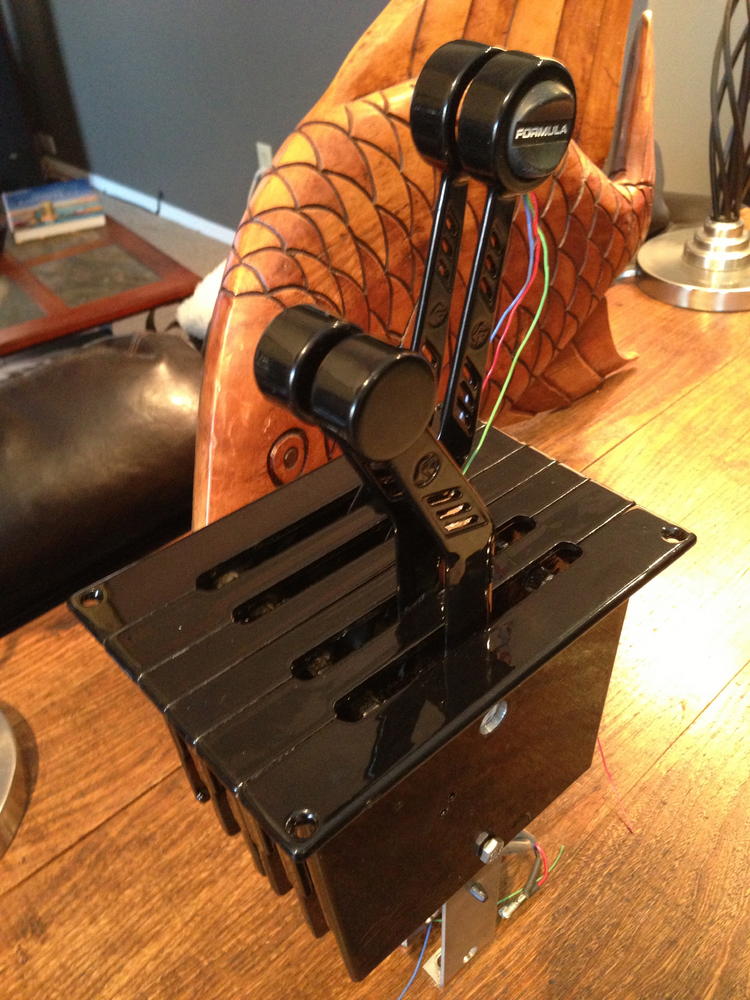

Some additional pics of the throttles after powder coating
Attached Thumbnails Fastech dash redo with pics-img_0926.jpg   Fastech dash redo with pics-img_0908.jpg   Fastech dash redo with pics-img_0909.jpg

paaka937 is offline
Old 03-17-2013, 09:22 PM
  #3
Registered

Join Date: Sep 2008
Location: Halifax, Nova Scotia
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts
Default

wow, nice work.

How did you get the small lettering done over the c/fibre?
nsformula is offline
Old 03-17-2013, 09:25 PM
  #4
Registered
Platinum Member
Thread Starter

Join Date: May 2012
Location: LOTO
Posts: 81
Likes: 0
Received 1 Like on 1 Post
Default

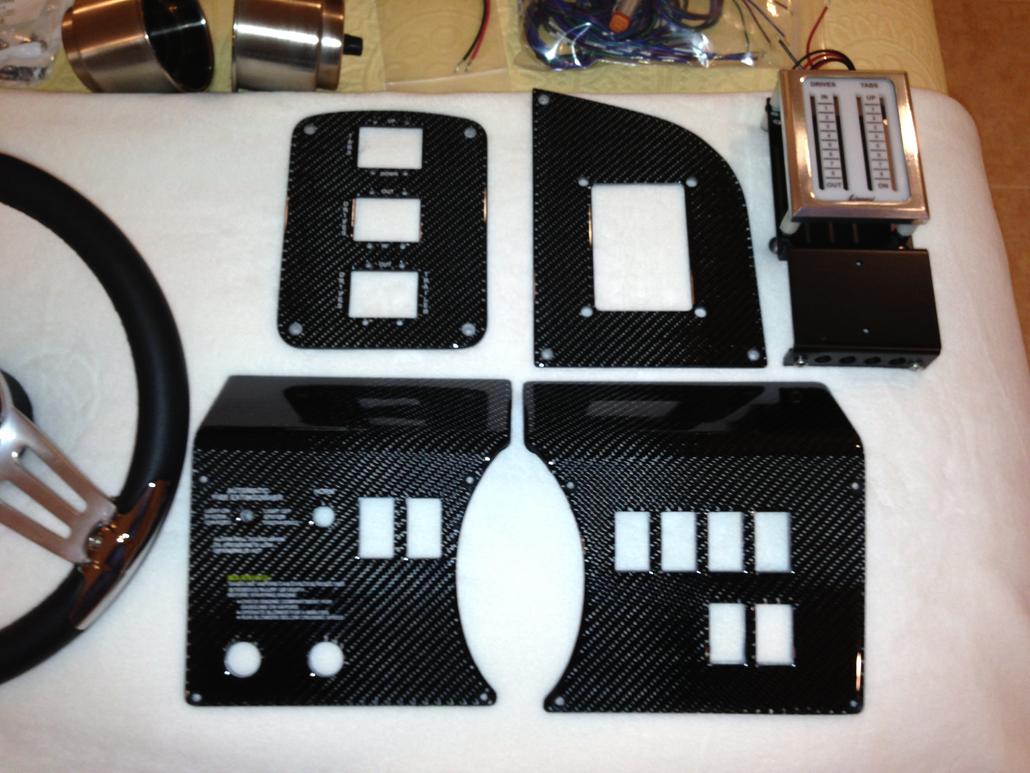

I had the carbon fiber panels made by Steve Dunning (Innotech Designs) in St. Louis. He did all the silk screening of the lettering as well. What is pretty amazing is it seems that the lettering was done and then an additional layer of gloss put on the panels to keep the lettering from scratching off.
paaka937 is offline
Old 03-17-2013, 09:38 PM
  #5
Registered

Join Date: Jun 2009
Location: Phoenix Arizona
Posts: 106
Likes: 0
Received 1 Like on 1 Post
Default

Wow! That looks slick. Awesome choice in scheme.
billyt0020 is offline
Old 03-17-2013, 09:45 PM
  #6
Registered
Platinum Member
Thread Starter

Join Date: May 2012
Location: LOTO
Posts: 81
Likes: 0
Received 1 Like on 1 Post
Default

Thanks!! I was a little torn in staying old school with the original darker color in the dash or go with a more updated dash color in white. Ultimately I decided to stay with the original black dash and then have carbon fiber panels made to go along with this theme. I was really torn and wanted to update the dash color to white and then have a set of red or blue dash panels made but it was just going to be too difficult to remove the windshield and paint the dash white. Plus I like the fact that I kept some of its original coloring in place...am probably going to have the upholstery redone at some point to be more in line with the dash...and then maybe a new paint job...never ending!!
paaka937 is offline
Old 03-18-2013, 07:10 AM
  #7
21 and 42 footers
Platinum Member

t500hps's Avatar

Join Date: Sep 2004
Location: Richmond VA
Posts: 8,117
Received 58 Likes on 28 Posts
Default

Congrats...Steve did my ddash panels a few years ago too.

http://www.offshoreonly.com/forums/g...a-382-a-3.html

Page 6 has an outside shot of the finished product.
t500hps is offline
Old 03-18-2013, 07:32 AM
  #8
Registered
Platinum Member
iTrader: (1)

Join Date: Mar 2009
Location: Cape Coral, Fl/LOTO
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by paaka937 View Post
I had the carbon fiber panels made by Steve Dunning (Innotech Designs) in St. Louis. He did all the silk screening of the lettering as well. What is pretty amazing is it seems that the lettering was done and then an additional layer of gloss put on the panels to keep the lettering from scratching off.

Nice job.


Steve did mine too
314joey is offline
Old 03-18-2013, 08:25 AM
  #9
Registered
iTrader: (4)

Join Date: Jul 2007
Location: Oneida Lake NY
Posts: 3,628
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by 314joey View Post
Nice job.


Steve did mine too
I like that carbon fiber. Where did you put the rest of the gauges after?
4bus is offline
Old 03-18-2013, 09:19 AM
  #10
Registered
Platinum Member
iTrader: (1)

Join Date: Mar 2009
Location: Cape Coral, Fl/LOTO
Posts: 2,053
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by 4bus View Post
I like that carbon fiber. Where did you put the rest of the gauges after?
That's it, before I brought the boat down South I installed a new Garmin and I had to lose the speedo, I have a GPS speedo now and the depth finder is on it to;

two oil pressure gauges
two water temp
two tachs
fuel
battery

It all turned out looking good, the Garmin is a must around the ICW and it works great.
