502 EFI to HP 500 carb constant alarm need wiring help

Old 06-07-2021, 09:28 PM
  #1
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default 502 EFI to HP 500 carb constant alarm need wiring help

Sorry guys if this is somewhat easy, but anytime I try to use the search I get 5k unrelated threads to search through.

Removed a 502 Mag MEFI 1 cool fuel II engine and replaced it with a HP 500 carb. Had the local mechanic do the engine swap a few months ago. Didn't have an exhaust at that time, so he never fired it up.

When I started it, I have a constant alarm buzzing. 40 psi of oil pressure at idle, water temp doesn't even reach 120*, and out drive reservoir is full and brand new. (old one leaked after engine swap)

There are a few more sensor/senders on the HP 500 VS. my 502 mag.

The Thunder volt distributor was replaced with a MSD. I'm guessing a few of the wires not attached have to deal with that.

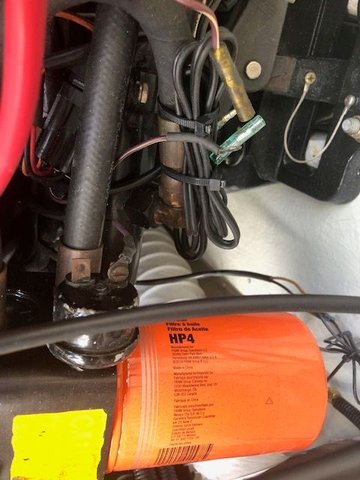

oil temp sender, correct? Wouldn't cause alarm?

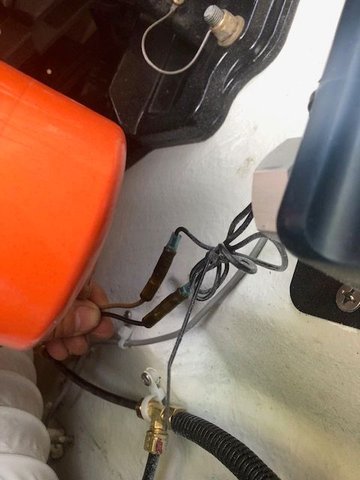

New reservoir wires connected. Looks to be tan with blue line and black. Is this correct?

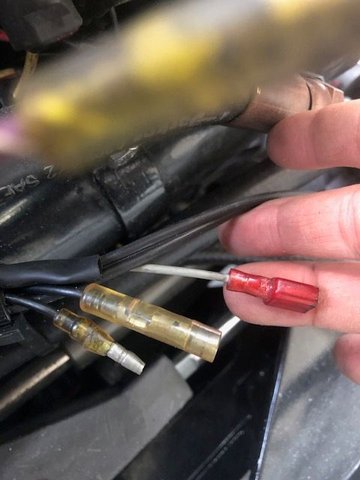

Got 2 purple with white line wires here. One bullet connector and one eyelet. Not hooked to anything

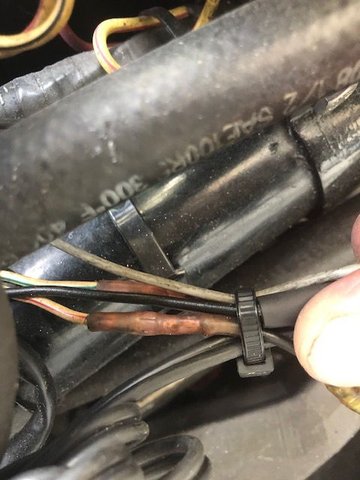

White red line white green line solid gray

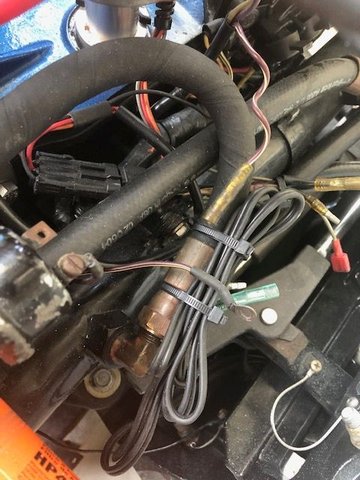

These are the ends someone spliced onto the wht/red wht/grn and solid gray

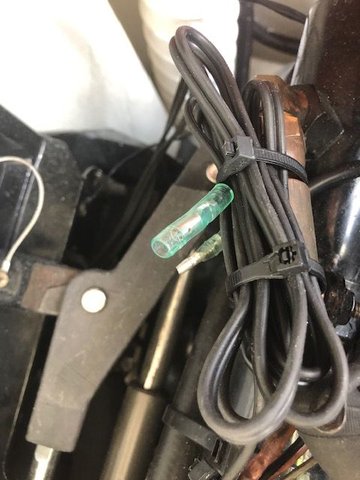

These are coming from the out drive. Maybe something to do with the Mercathode?
xlint89 is offline
Old 06-07-2021, 09:29 PM
  #2
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default

Also have 2 what looks like water temp senders.

One in the thermostat housing and one in the intake manifold.
xlint89 is offline
Old 06-07-2021, 09:30 PM
  #3
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default

If anyone can help identify these wires or suggest what might be tripping the alarm, I'd greatly appreciate it. Thank you
xlint89 is offline
Old 06-07-2021, 09:40 PM
  #4
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default


Obligatory porn pic
xlint89 is offline
Old 06-08-2021, 01:44 AM
  #5
Charter Member # 55
Charter Member

Griff's Avatar

Join Date: Oct 2000
Location: Omaha
Posts: 18,409
Received 791 Likes on 387 Posts
Default

All the wires for the alarm system are tan and blue. The alarm sensors are separate from the gauge sensors. The only sensors on an HP500 are for low drive lube, low oil pressure and high water temp.
Pull the wire off each alarm sensor one at a time and see if the alarm quits. If it does not quit, then one of the tan and blue wires is grounding out somewhere. I had it happen once and a spliced wire had come apart and the wire was touching my intake manifold and grounding out. This completes the circuit and sets off the alarm.
Griff is offline
The following 3 users liked this post by Griff:
8Ballclan (06-08-2021), SB (06-08-2021), TomZ (06-09-2021)
Old 06-08-2021, 06:53 AM
  #6
Registered
iTrader: (1)

Join Date: Nov 2009
Location: KY
Posts: 3,564
Received 297 Likes on 227 Posts
Default

The Thunder volt distributor was replaced with a MSD.
The TBV had one additional Tan/Blue which going to the TBV module. Having ignition replaced with MSD, look for what was done with that connection
AllDodge is offline
Old 06-08-2021, 07:04 AM
  #7
Registered

Revelocity's Avatar

Join Date: Feb 2001
Location: Warwick, MD USA
Posts: 637
Likes: 0
Received 11 Likes on 9 Posts
Default

Perhaps the drive lube level sender was disturbed with engine swap?
Revelocity is offline
Old 06-08-2021, 06:17 PM
  #8
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default

Originally Posted by Griff View Post
All the wires for the alarm system are tan and blue. The alarm sensors are separate from the gauge sensors. The only sensors on an HP500 are for low drive lube, low oil pressure and high water temp.
Pull the wire off each alarm sensor one at a time and see if the alarm quits. If it does not quit, then one of the tan and blue wires is grounding out somewhere. I had it happen once and a spliced wire had come apart and the wire was touching my intake manifold and grounding out. This completes the circuit and sets off the alarm.
Will do. Thanks for that

Originally Posted by AllDodge View Post
The TBV had one additional Tan/Blue which going to the TBV module. Having ignition replaced with MSD, look for what was done with that connection
Did not know this. Will lokk into it. Thanks

Originally Posted by Revelocity View Post
Perhaps the drive lube level sender was disturbed with engine swap?
reservoir was replaced after the engine swap. Thank you
xlint89 is offline
Old 06-08-2021, 06:25 PM
  #9
Registered

Join Date: Jan 2007
Location: Murrayville Georgia
Posts: 1,354
Likes: 0
Received 224 Likes on 72 Posts
Default

check that the float in the reservoir is not stuck to the bottom. had that happen once, drove me up the wall trying to find it.
compedgemarine is offline
Old 06-09-2021, 03:57 PM
  #10
Registered
Thread Starter

Join Date: Mar 2020
Posts: 271
Received 91 Likes on 41 Posts
Default

I wondered about that. I'll try that out too. Thanks
