Parting tripple engine boat 540's SSM >

Parting tripple engine boat 540's SSM

Notices

Parting tripple engine boat 540's SSM

Old 10-26-2020, 04:41 PM
  #1
Gold Member
Gold Member
Thread Starter
iTrader: (5)

Full Force's Avatar

Join Date: Oct 2005
Location: Olmsted Falls,Ohio Marblehead,Oh
Posts: 11,179
Likes: 0
Received 30 Likes on 20 Posts
Default Parting tripple engine boat 540's SSM

I picked up a project that's been sitting, selling parts from it. Has triple tall deck 540's I would think around 600-625 hp each Engines are said to be 30 hours seem like as everything looks good, paint flakes off some but aside from that they look new.

I ran compression tests all are good, and ran them on hose all ran fine besides some leaks on carbs those will need gone through.

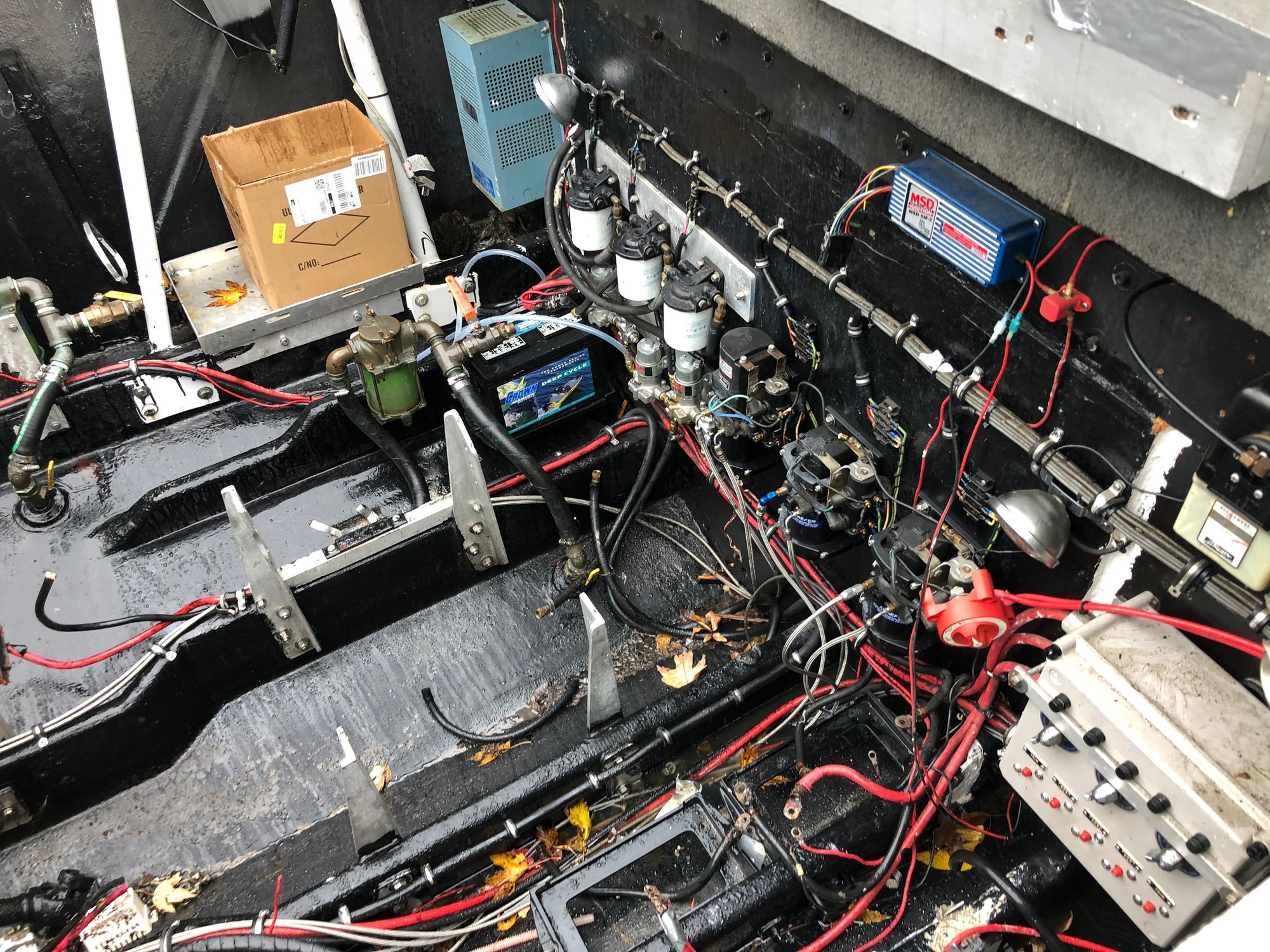

These will be sold flame arrestor to pan, with msd distributors and coils, will have the wiring and throttle bracket, the bypass setup will be there, basically as seen in pics

Working on getting the build sheets for them I am not sure if I will get them but here's what I do know for sure

Won't let me post running videos so pm me for them.

Center engine is:

Merlin tall deck block
Gil marine oil pan

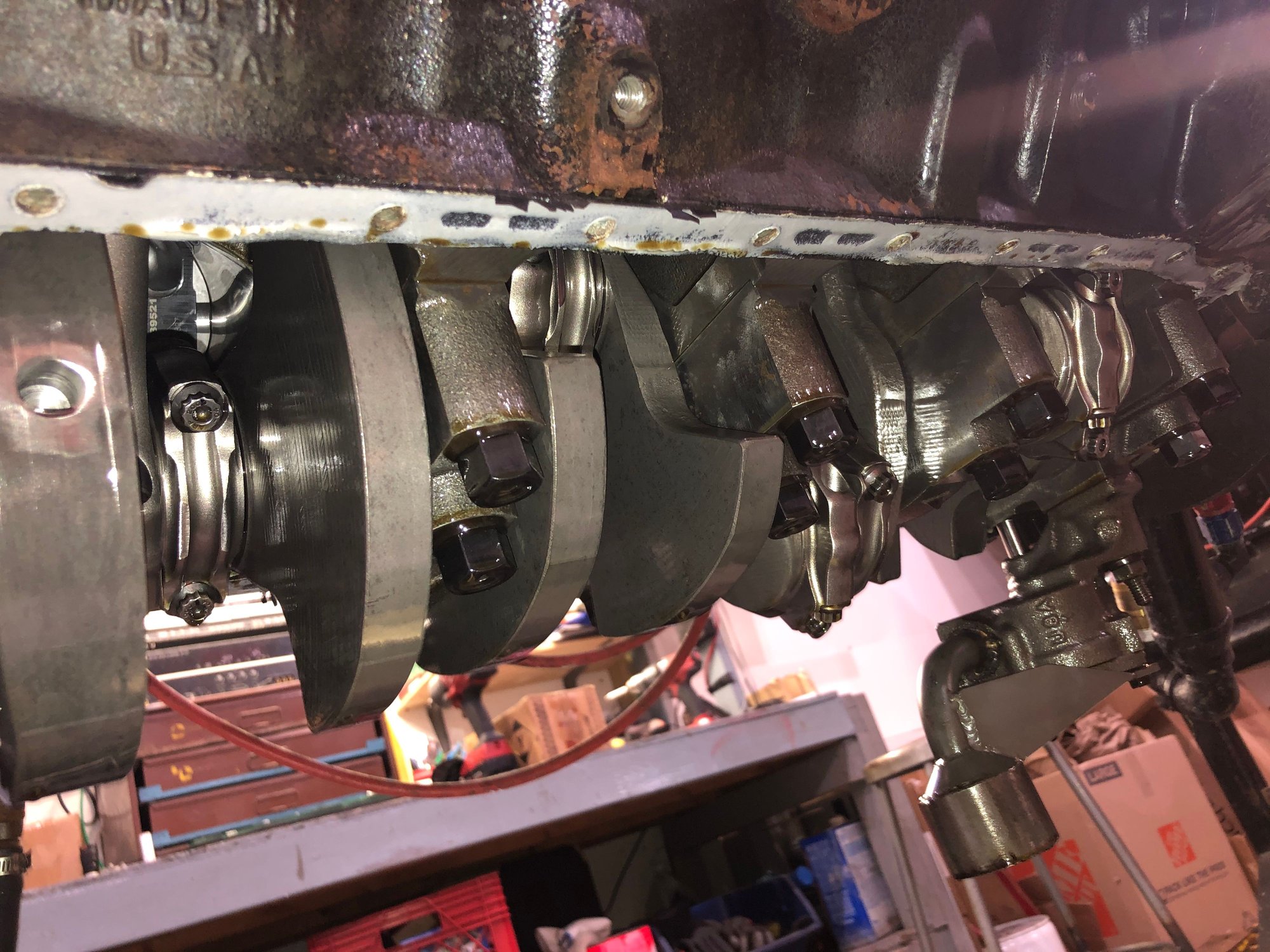

Lunati forged 4.25 crankshaft
Crower I beam rods

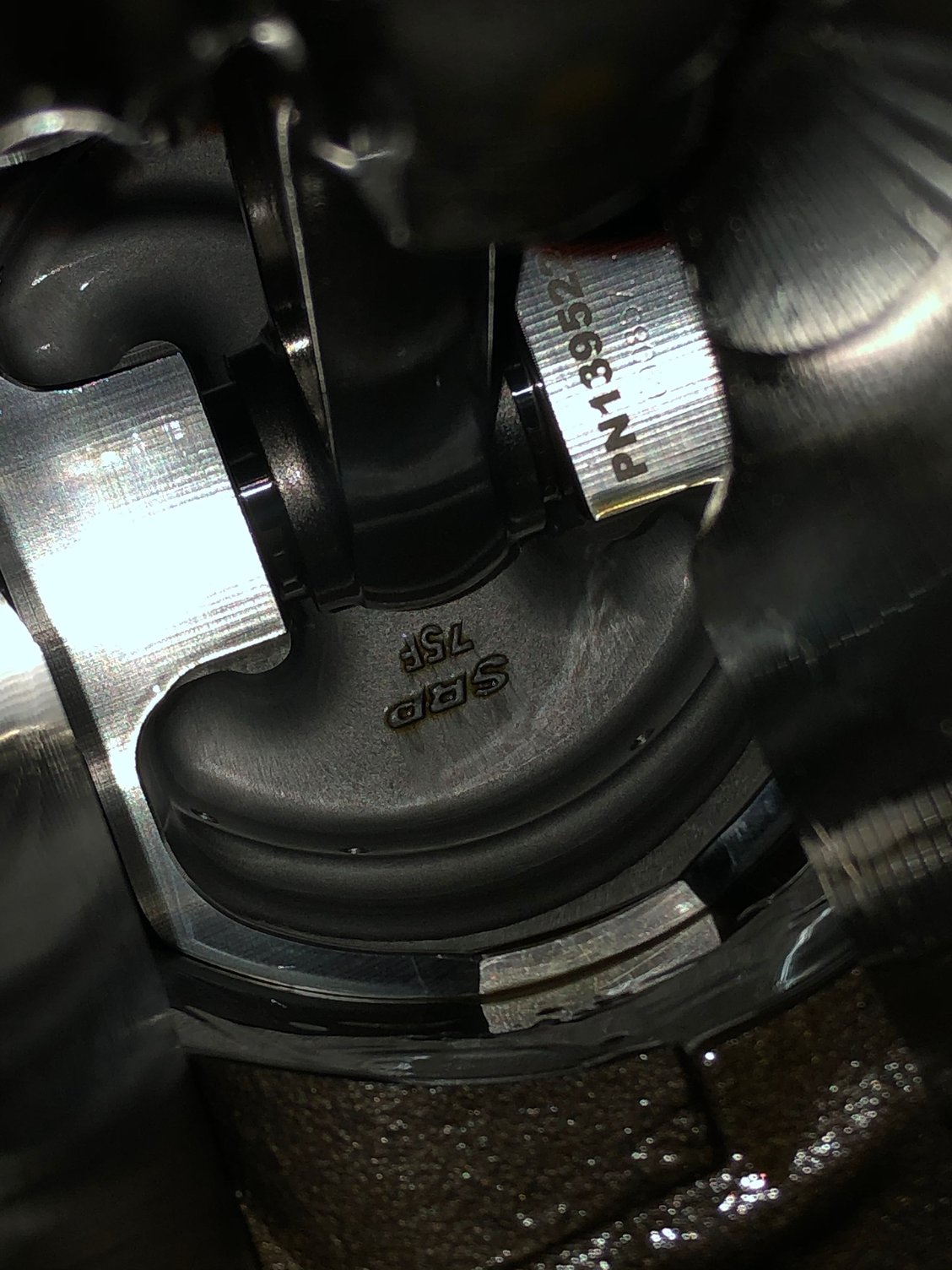

Srp forged flat top pistons
Gm 088 heads
Roller cams I do not know specs
Retrofit roller lifters
Comp cams stainless 1.7 rockers
Manley pushrods
Merlin 4500 marine intake
4500 dominator carb

Starboard engine is:

Gm performance bowtie block tall deck
Gil marine oil pan
4.25 forged crank could not see name thinking callies
Callies compstar I beam rods
Srp forged flat top pistons
Gm 088 heads
Roller cams I do not know specs
Retrofit roller lifters
Comp cams stainless 1.7 rockers
Manley pushrods
Merlin 4500 marine intake
4500 dominator carb

Port engine is:

Merlin tall deck block
Gil marine oil pan
4.25 forged crank could not see name thinking callies
Callies compstar I beam rods
Srp forged flat top pistons
Merlin 320 cc heads 0-143c
Roller cams I do not know specs
Retrofit roller lifters
Comp cams stainless 1.7 rockers
Manley pushrods
Merlin 4500 marine intake
4500 dominator carb

7500.00 each picked up 44138 Ohio
Cash only in person you see what your getting and I make sure your happy with it, no warranty, I did run them and compression tested best I can do, most don't do that.

Ssm parts and more... most parts are pick up I don't ship heavy stuff basillky only thing good is firewall back, all else was exposed to outdoors and beat.

I have some more ssm parts from a project I grabbed, has 2 LH drives and a RH so I'm gonna do a conversion listing and more

So a right and left SSMIII right and left drives 1.5 ratio, inner and outer a with trim cylinders, and a tie bar for side by side
9500.00

Extra LH drive 1.5 ratio 2750.00
Ssmiii transom assembly with trim cylinders 1200.00
72 c plug in transmissions 1200 each
72 c driveline trans 1750
Single cooler bell housings 125.00 each
8 spring ssm damper plates 150.00 each
Early Hardin marine dry exhaust with tails 600.00 a set
Tons of parts see pics and ask what I may have here ...



































Full Force is offline
Old 10-27-2020, 02:32 PM
  #2
Registered

Join Date: Aug 2019
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Default

im interested on the trim tabs
Jonathan G is offline
Old 10-27-2020, 04:33 PM
  #3
Gold Member
Gold Member
Thread Starter
iTrader: (5)

Full Force's Avatar

Join Date: Oct 2005
Location: Olmsted Falls,Ohio Marblehead,Oh
Posts: 11,179
Likes: 0
Received 30 Likes on 20 Posts
Default

Trying to price them now
Full Force is offline
Old 10-27-2020, 04:42 PM
  #4
Registered

Join Date: Aug 2019
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Default

hi as soon as you get a $ let me know
Jonathan G is offline
Old 10-28-2020, 12:50 AM
  #5
Platinum Member
Platinum Member
iTrader: (3)

scippy's Avatar

Join Date: Jan 2007
Location: Jackson, n.j. ~ Brooklyn, n.y.
Posts: 1,782
Received 11 Likes on 7 Posts
Default

I'm in need of (1) hydraulic trim pump for my engine hatch .......
scippy is offline
Old 10-28-2020, 09:55 AM
  #6
Gold Member
Gold Member
Thread Starter
iTrader: (5)

Full Force's Avatar

Join Date: Oct 2005
Location: Olmsted Falls,Ohio Marblehead,Oh
Posts: 11,179
Likes: 0
Received 30 Likes on 20 Posts
Default

Originally Posted by Jonathan G View Post
hi as soon as you get a $ let me know
from what I see 1500. Is going rate for big tabs
Full Force is offline
Old 10-29-2020, 08:56 AM
  #7
Gold Member
Gold Member

Join Date: Aug 2004
Location: Cleveland, Ohio
Posts: 249
Likes: 0
Received 0 Likes on 0 Posts
Default

Still looking for the ssm trans mount brackets with shift cable holders...

text 440-537-8623 Im in Eastlake

offshoreratboy is offline
Old 10-29-2020, 06:39 PM
  #8
Gold Member
Gold Member
Thread Starter
iTrader: (5)

Full Force's Avatar

Join Date: Oct 2005
Location: Olmsted Falls,Ohio Marblehead,Oh
Posts: 11,179
Likes: 0
Received 30 Likes on 20 Posts
Default

I have them I usually keep with transmissions but maybe we can work it out. 440-476-4114
Full Force is offline
Old 11-05-2020, 10:40 PM
  #9
Gold Member
Gold Member
Thread Starter
iTrader: (5)

Full Force's Avatar

Join Date: Oct 2005
Location: Olmsted Falls,Ohio Marblehead,Oh
Posts: 11,179
Likes: 0
Received 30 Likes on 20 Posts
Default

got cam specs 240/[email protected] .574/.578 lift 110LSA
Full Force is offline
Old 11-06-2020, 06:40 AM
  #10
Registered
iTrader: (2)

kreed's Avatar

Join Date: Feb 2008
Location: Connecticut
Posts: 6,496
Received 15 Likes on 13 Posts
Default

Someone spent a ton of $$$ on those builds.
kreed is offline
