Baja Outlaw 36 - No voltage to the stereo >

Baja Outlaw 36 - No voltage to the stereo

Notices

Baja Outlaw 36 - No voltage to the stereo

Thread Tools

Old 05-22-2014, 03:08 PM
  #1
Registered
Thread Starter

Join Date: Jan 2013
Location: Huntsville, AL
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Default Baja Outlaw 36 - No voltage to the stereo

I have a 99 model Outlaw 36, with no power to the stereo. Is there a factory installed fuse, circuit breaker, rocker switch, or some other component that I'm overlooking? I've tried everything on the instrument panel, and I've checked everywhere I know to look. Has anyone else run into this? Thanks in advance for the help.
marc9889 is offline
Old 05-22-2014, 04:01 PM
  #2
Registered
iTrader: (2)

Join Date: Jun 2010
Location: Birmingham, AL
Posts: 392
Received 0 Likes on 0 Posts
Default

Yep. Probably. In addition to the fuse in the fuse box, Baja (and most other boat manufacturers) had a nasty little habit of leaving the in line fuse on the radio. You will have to pull the radio out of the dash to get to it. It is 3 amp I think. It is the white thing on the red wire in this picture.

Good luck.

Dan

[ATTACH=CONFIG]523721[/ATTACH]
Attached Thumbnails Baja Outlaw 36 - No voltage to the stereo-radio-dash-1.jpg
BajaDan is offline
Old 05-22-2014, 04:03 PM
  #3
Registered
Thread Starter

Join Date: Jan 2013
Location: Huntsville, AL
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks Dan! I'll give it a try.
marc9889 is offline
Old 05-24-2014, 06:55 AM
  #4
Registered

Join Date: Mar 2009
Location: Carrollton, Ky
Posts: 460
Received 0 Likes on 0 Posts
Default

My 98 has a rocker switch on the dash that turns the radio on....
rumrunner29 is offline
Old 05-28-2014, 08:35 AM
  #5
Platinum Member
Platinum Member
iTrader: (6)

F-2 Speedy's Avatar

Join Date: May 2012
Location: Midwest & T-Rock
Posts: 10,417
Received 3,043 Likes on 1,355 Posts
Default

On my 33 there is a 6 switch pannel in the cuddy on the left side with one marked stereo
F-2 Speedy is online now
Old 05-28-2014, 08:36 AM
  #6
Registered
Thread Starter

Join Date: Jan 2013
Location: Huntsville, AL
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Default

I hoped that was the case with my boat, but it's not looking that simple. I turned on all the switches and used a volt meter to check for 12v at the radio and I still have nothing. Worse yet, I took the boat to Panama City Beach over the weekend, so I won't have a chance to fix it until it comes home in October.
marc9889 is offline
Old 05-28-2014, 08:38 AM
  #7
Platinum Member
Platinum Member
iTrader: (6)

F-2 Speedy's Avatar

Join Date: May 2012
Location: Midwest & T-Rock
Posts: 10,417
Received 3,043 Likes on 1,355 Posts
Default

is this a new boat to you ? or it did work and now it doesn't
F-2 Speedy is online now
Old 05-28-2014, 08:39 AM
  #8
Registered
Thread Starter

Join Date: Jan 2013
Location: Huntsville, AL
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Default

It hasn't worked since I bought the boat.

Last edited by marc9889; 05-28-2014 at 08:47 AM.
marc9889 is offline
Old 05-28-2014, 09:31 AM
  #9
Registered

Join Date: Mar 2012
Location: Clearwater, Mn
Posts: 1,226
Received 25 Likes on 15 Posts
Default

Originally Posted by marc9889
I took the boat to Panama City Beach over the weekend, so I won't have a chance to fix it until it comes home in October.

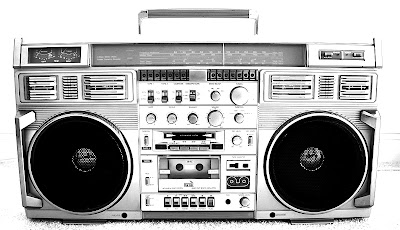

sounds like you will need one of these and LOTS of D size batteries this summer

92nsx is offline
Old 05-28-2014, 09:35 AM
  #10
Registered
Thread Starter

Join Date: Jan 2013
Location: Huntsville, AL
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Default

Good plan... does anyone make bell bottom swim trunks??
