Default Cafe Xdim Recommendation

New drives are konrad ace with shorty. Drive shaft to propeller shaft distance is 21".

Konrad diagram with hp lowers has a 15" xdim. That puts my prop @ 6" below hull with shorty which seems to deep. For reference, I calculated my trs to be about 8" prop shaft under hull.

I was thinking of putting the props @ 3" under hull, which gives me 18" xdim. I found a thread from skramer where he put a shorty on with no extension box & running props 3.5" under hull. So seems I'm in ballpark. Or is this too shallow? Ide rather not get every last mph in order to have it plane easier.

BDiggity is offline
Old 07-06-2020, 07:15 AM
  #2
Registered

CIG3's Avatar

Join Date: Jan 2001
Location: Grand River, Ohio
Posts: 2,271
Likes: 0
Received 3 Likes on 3 Posts
Default

With the notched transom I believe that 3.5"-4" below the bottom is the sweet spot. I have a friend that had a speedmaster Café with the drives 1.5" below and it was hard to keep on plane at slow speeds and had terrible slip numbers. We moved them down to 3" below and it runs much better now. If we could have gone lower without glass work we would have. Also this came from Scot Smith who worked at Cigarette and set up many Cafe's. He said Bravo, TRS, Speedmaster all ran best with the drives deeper. my $.02
CIG3 is offline
The following users liked this post:
J-Bonz (07-06-2020)
Old 07-06-2020, 01:30 PM
  #3
Platinum Member
Platinum Member
Thread Starter

BDiggity's Avatar

Join Date: Feb 2005
Location: OP/LOTO
Posts: 1,720
Likes: 0
Received 5 Likes on 5 Posts
Default

Originally Posted by CIG3 View Post
With the notched transom I believe that 3.5"-4" below the bottom is the sweet spot. I have a friend that had a speedmaster Café with the drives 1.5" below and it was hard to keep on plane at slow speeds and had terrible slip numbers. We moved them down to 3" below and it runs much better now. If we could have gone lower without glass work we would have. Also this came from Scot Smith who worked at Cigarette and set up many Cafe's. He said Bravo, TRS, Speedmaster all ran best with the drives deeper. my $.02
Thank you for that info. I was told that the water level "rises" as you get further from the transom as the hull is not displacing it as much any longer. But i have no clue if this is .5" or 1" etc in rise. I figured if i set them higher, i can always space down. If i use my original TRS height, it would put the props about 4.5" below hull, but again i dont know what the real depth would be when sitting off the extension boxes.
BDiggity is offline
Old 07-06-2020, 10:11 PM
  #4
Registered
iTrader: (4)

Join Date: May 2009
Posts: 1,398
Received 72 Likes on 43 Posts
Default

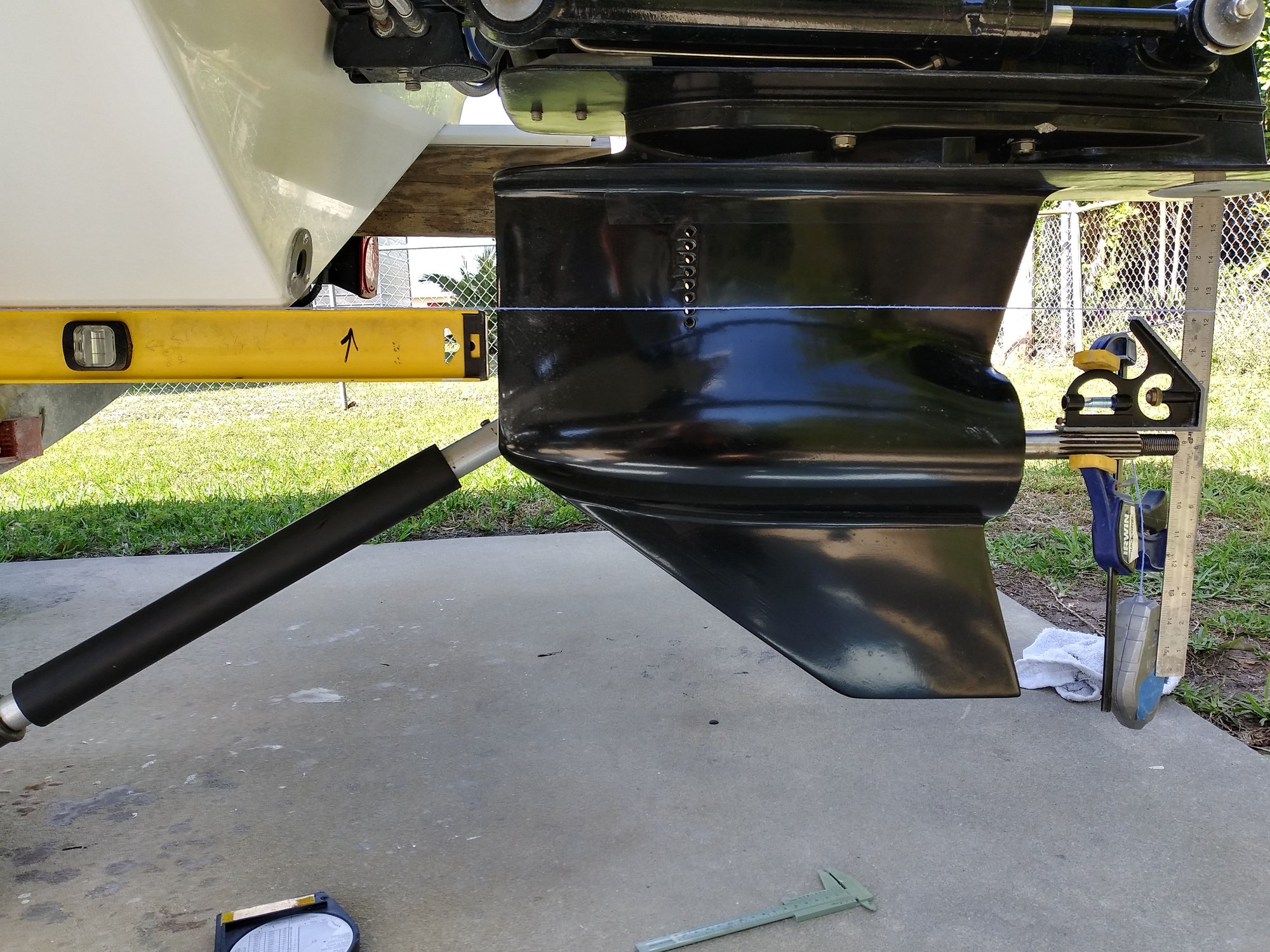

i know i know totally different drive, different boat and so on, this is just a reference shot and prop centerline is 4 3/8 inches

took the pic with the grid option on, its a pretty square shot, move the pic around you can line up the ruler with the top of the screen and see any x you want.

get some good pics of the drives boxes and boat posted up.

Last edited by outonsafari; 07-06-2020 at 10:16 PM.
outonsafari is offline
Old 08-07-2020, 10:02 PM
  #5
Registered

Join Date: Jun 2011
Location: Palos, Illinois
Posts: 81
Received 24 Likes on 12 Posts
Default

Does your Cafe have a notched transom? I see Cig 3 referred to a notch. I also have a Cafe with a notch.
1Zoom is offline
Old 08-08-2020, 04:30 PM
  #6
Platinum Member
Platinum Member
Thread Starter

BDiggity's Avatar

Join Date: Feb 2005
Location: OP/LOTO
Posts: 1,720
Likes: 0
Received 5 Likes on 5 Posts
Default

Originally Posted by 1Zoom View Post
Does your Cafe have a notched transom? I see Cig 3 referred to a notch. I also have a Cafe with a notch.
No notch in mine.
