382 FasTECH Dash Update

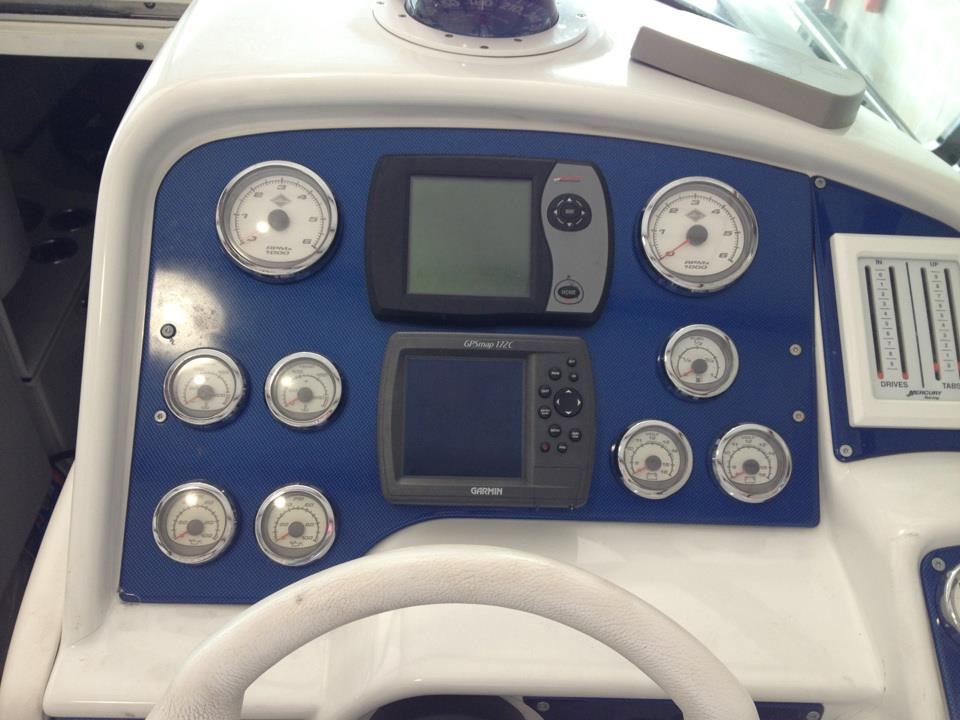

One of the projects we are working on on our 382 is updating the dash. I bought a Garmin 740s to replace the old worn out 172C. I also hate the look of the smartcraft gauges and want to re do them with Livorsi Monster gauges (4 5/8" and 2 1/16"). I think with the blue panel white face with blue numbers would look good with either blue or white back lighting. I found a GPS picture on google images and photoshopped the numbers to blue and just resized it (approximately, not 100% to scale but I also drew it up in autocad) so ignore the fact that this has 10 GPS speedometers but you get the idea. Let me know your thoughts and please anyone post pictures of any upgrades you all have done to your 382's. For reference, here is a before picture as well.
[ATTACH=CONFIG]510560[/ATTACH]
[ATTACH=CONFIG]510561[/ATTACH]
[ATTACH=CONFIG]510560[/ATTACH]
[ATTACH=CONFIG]510561[/ATTACH]
#2
Registered
Thread Starter
Here's a good real example on a Donzi so picture this gauge but with blue letters instead of red
[ATTACH=CONFIG]510562[/ATTACH]
[ATTACH=CONFIG]510562[/ATTACH]
#3
21 and 42 footers
Platinum Member
Here's what I did with mine a few years ago.....
http://www.offshoreonly.com/forums/g...a-382-a-5.html
Wish I had flush mounted the GPS.
http://www.offshoreonly.com/forums/g...a-382-a-5.html
Wish I had flush mounted the GPS.
#5
Registered
Thread Starter

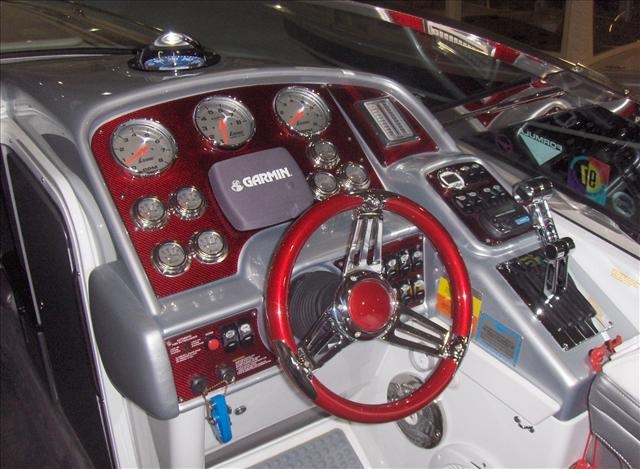

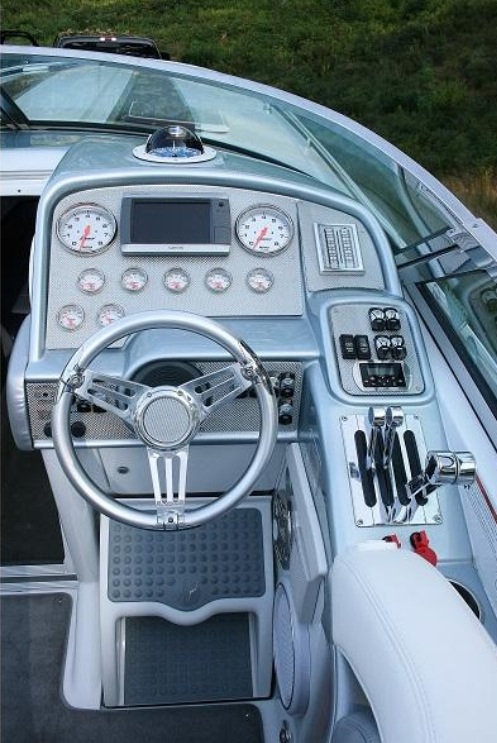

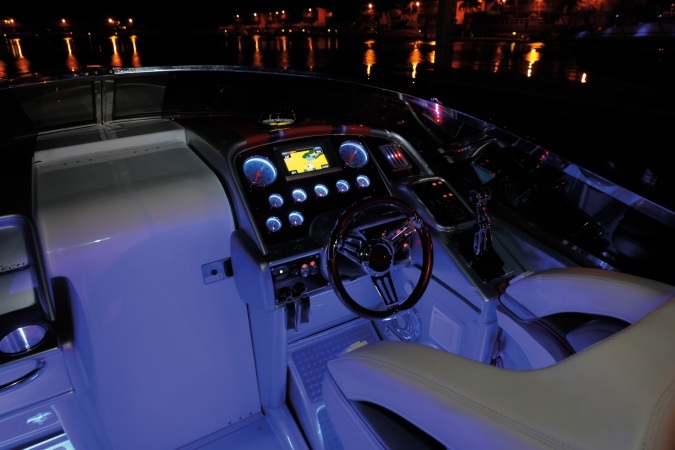

[ATTACH=CONFIG]510633[/ATTACH][ATTACH=CONFIG]510634[/ATTACH][ATTACH=CONFIG]510635[/ATTACH][ATTACH=CONFIG]510636[/ATTACH][ATTACH=CONFIG]510637[/ATTACH]
#6
Registered
Join Date: Sep 2003
Location: Toledo, Ohio/Las Vegas, NV
Posts: 3,029
Likes: 0
Received 1 Like
on
1 Post
Looks nice but not sure how well you will be able to see the blue at night ...?
Re-did mine a few years ago before the carbon fiber was readily available. Gauges on the R lower are fuel pressure:
[ATTACH=CONFIG]510669[/ATTACH]
Re-did mine a few years ago before the carbon fiber was readily available. Gauges on the R lower are fuel pressure:
[ATTACH=CONFIG]510669[/ATTACH]
Last edited by RedDog382; 10-23-2013 at 12:38 AM.
#7
Registered
Thread Starter

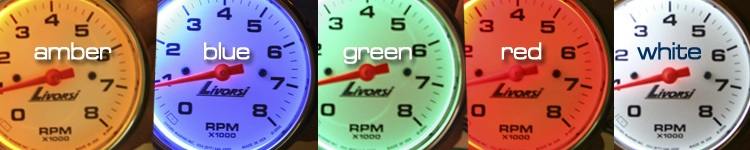

This is from Livorsi's website. I want to see it in person as it looks slightly purple to me. Could just be the picture though.
[ATTACH=CONFIG]510736[/ATTACH]
[ATTACH=CONFIG]510736[/ATTACH]
#8
Diamond Member #001
Charter Member
iTrader: (2)
Join Date: Oct 2000
Location: Coastal North Carolina
Posts: 4,808
Likes: 0
Received 5 Likes
on
4 Posts
With the GPS, you may find the speedo unnecessary. I ditched mine 8 years ago. Gives you more room for other gauges. Or a bigger chartplotter...
__________________
Retired! Boating full-time now.
Retired! Boating full-time now.
#10
Registered
Thread Starter
I know we don't need the speedo, but I like the look. Smartcraft is getting upgraded to vessel view 7 and moved to port side.
