Went to Outerlimits again!

Reply
Old 01-25-2008, 08:40 AM
  #31
Charter Member
Charter Member

Dean Ferry's Avatar

Join Date: Nov 2000
Location: Merritt Is. Fl. USA
My Boats: 2006 Hustler 388, 2004 Hustler Talon 25, 1999 30 Spectre cat and 2007 21' hydrostream voyager w/ Merc. 225 EFI
Posts: 6,580
Default

Quote:
Originally Posted by Wahoo ATV View Post
It would be very cool to see a thread that shows the entire process of building a carbon mystic or OL. Kind of a documentary. From CAD to me running it.
In this thread, there some pics of the carbon fiber being prepped for lamination.

http://www.offshoreonly.com/forums/s...ghlight=mystic
__________________
Everything is for sale @ a certain $$
Dean Ferry is offline
Reply With Quote
Old 01-25-2008, 08:42 AM
  #32
OSO Content Provider
Commercial Member

SHARKEY-IMAGES's Avatar

Join Date: Jun 2001
Location: Sharkey-Images.com
Posts: 19,673
Default

Thanks for the link Dean.

A little confusing , whether or not the Optional Construction is an addition to the standard layup with removing certain aspects of the Standard layup.

"A Structural Grid" could be replacing the coring materials as with the angles of the grid would then provide the strength.

I would still be surprised if it was a "carbon only" hull...

If so, I would love to see it. Clear coat the whole thing inside and out and what a nice piece it would be...

Attention to detail would be in order for the layup though!
Attached Thumbnails

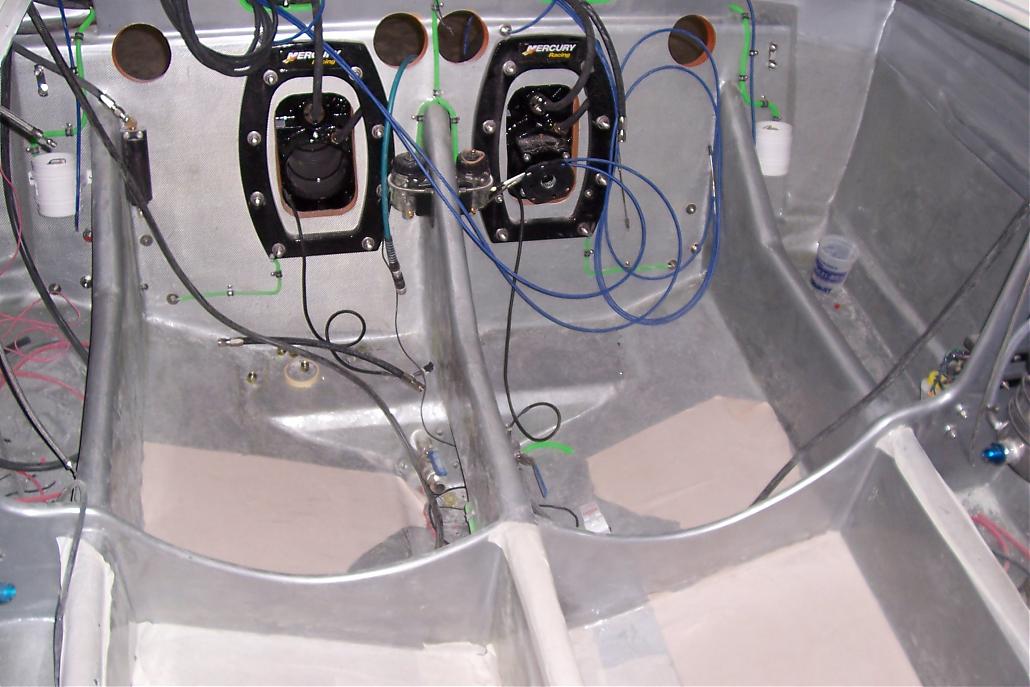

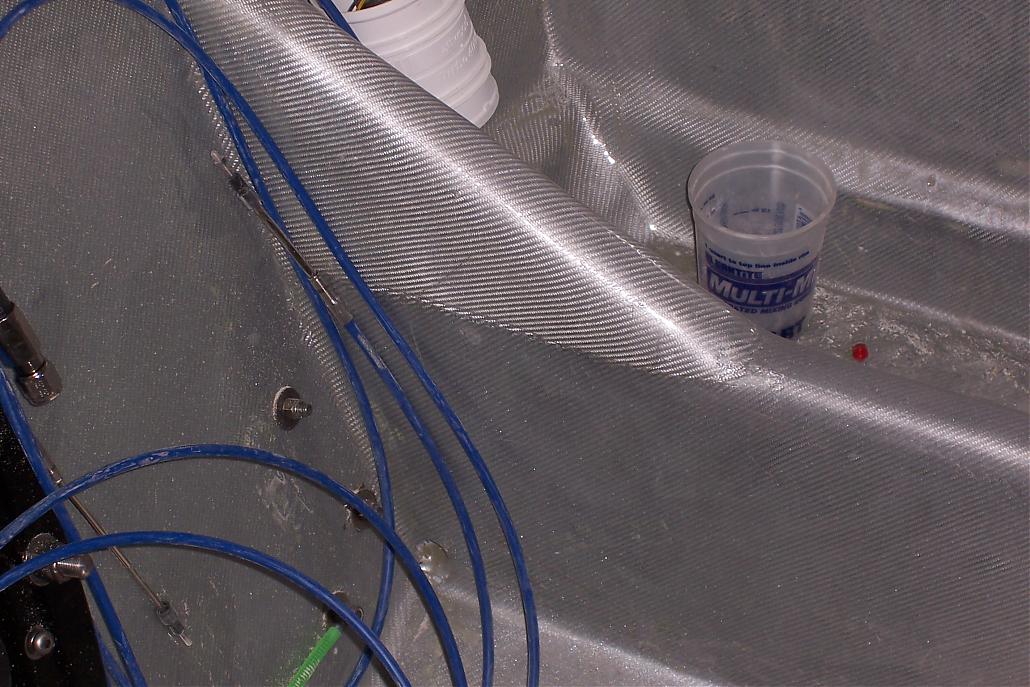

Went to Outerlimits again!-ol-008.jpg   Went to Outerlimits again!-ol-006.jpg
__________________
www.TimSharkey.com/

Digital Photography & Video one BYTE at a time !
SHARKEY-IMAGES is offline
Reply With Quote
Old 01-25-2008, 08:56 AM
  #33
OSO Content Provider
Commercial Member

SHARKEY-IMAGES's Avatar

Join Date: Jun 2001
Location: Sharkey-Images.com
Posts: 19,673
Default

Within this photo is what looks to be a laminate ready for the prepreg. Look towards the back of the table and you will see the gold color which would leave me to believe that is Kevlar.

On the lower level you can see other types of glass on the rack as well.

But then again, every shop should have an assortment of different types of glass for different projects.

Thanks for the photos!
Attached Thumbnails
Went to Outerlimits again!-m5000%2520carbone%2520fiber%2520ready%2520for%2520prepreg%2520machine.jpg
Attached Images

__________________
www.TimSharkey.com/

Digital Photography & Video one BYTE at a time !

Last edited by SHARKEY-IMAGES; 01-25-2008 at 08:58 AM.
SHARKEY-IMAGES is offline
Reply With Quote
Old 01-25-2008, 09:04 AM
  #34
Charter Member
Charter Member

Dean Ferry's Avatar

Join Date: Nov 2000
Location: Merritt Is. Fl. USA
My Boats: 2006 Hustler 388, 2004 Hustler Talon 25, 1999 30 Spectre cat and 2007 21' hydrostream voyager w/ Merc. 225 EFI
Posts: 6,580
Default

Quote:
Originally Posted by sharkeymarine View Post
Thanks for the link Dean.

A little confusing , whether or not the Optional Construction is an addition to the standard layup with removing certain aspects of the Standard layup.

"A Structural Grid" could be replacing the coring materials as with the angles of the grid would then provide the strength.

I would still be surprised if it was a "carbon only" hull...

If so, I would love to see it. Clear coat the whole thing inside and out and what a nice piece it would be...

Attention to detail would be in order for the layup though!

Tim,
Believe me, all the Race M5000 Mystics are carbon fiber hulls, If you want, call Dave Scott or JT @ TNT if you need outside verifciation as to what material Bud Select is made of. The other cloths you see on the table are for the M6000 and SL700 hulls.
Even the molds are made of carbon fiber.
Dean
__________________
Everything is for sale @ a certain $$

Last edited by Dean Ferry; 01-25-2008 at 09:06 AM.
Dean Ferry is offline
Reply With Quote
Old 01-25-2008, 10:07 AM
  #35
Registered

Roger 1's Avatar

Join Date: Dec 2002
Location: Kankakee Illinois
My Boats: 1993 Cigarette Top Gun
Posts: 3,702
Default

Quote:
Originally Posted by MOBILEMERCMAN View Post
If it really is 100% carbon and comes from a mound why paint it. It would look bad a$$. Tim maybe he means 100% of the boat gets a layer. Isn't it ungodly expensive?
I think that the reason for painting carbon fiber products is that the epoxy resin deteriorates when exposed to uv rays.

I'm sure that an expert on the subject could add more. Anyone?

Roger

Last edited by Roger 1; 01-25-2008 at 11:38 AM. Reason: spelling error
Roger 1 is offline
Reply With Quote
Old 01-25-2008, 11:35 AM
  #36
Lip-Ship- Grafikworx Glad
Platinum Member

pm203's Avatar

Join Date: May 2003
Location: MA and NH
Posts: 3,615
Default

Quote:
Originally Posted by Roger 1 View Post
I think that the reason for painting carbon fiber products is that the epoxy resin deteriorates when exposed to uv rays.

I'm sure that an expert on the subject could and more. Anyone?

Roger
Yes, but it can be cleared with a nice finish.
pm203 is offline
Reply With Quote
Old 01-25-2008, 11:53 AM
  #37
Charter Member
Charter Member

Dean Ferry's Avatar

Join Date: Nov 2000
Location: Merritt Is. Fl. USA
My Boats: 2006 Hustler 388, 2004 Hustler Talon 25, 1999 30 Spectre cat and 2007 21' hydrostream voyager w/ Merc. 225 EFI
Posts: 6,580
Default

Quote:
Originally Posted by marylandmark View Post
That sure is one sweet OL in the 1st post!



Mark,
I agree, didn't mean to detour this thread. OL builds some of the most AWESOME boats around, I wish I could afford 1
Dean
__________________
Everything is for sale @ a certain $$

Last edited by Dean Ferry; 01-25-2008 at 12:31 PM.
Dean Ferry is offline
Reply With Quote
Old 01-25-2008, 11:35 PM
  #38
OSO Content Provider
Commercial Member

SHARKEY-IMAGES's Avatar

Join Date: Jun 2001
Location: Sharkey-Images.com
Posts: 19,673
Default

Quote:
Originally Posted by Dean Ferry View Post
Tim,
Believe me, all the Race M5000 Mystics are carbon fiber hulls,
Dean
Not that I am second guessing a company like Mystic, but if you say the boats are 100% carbon fiber, well here is some really good reading. It would make you think, "Is it really worth the trade off ?"

"Do You Really Want A High Tech Carbon Fiber Boat ?" Click here for the story.







.
__________________
www.TimSharkey.com/

Digital Photography & Video one BYTE at a time !
SHARKEY-IMAGES is offline
Reply With Quote
Old 01-26-2008, 12:00 AM
  #39
OSO Content Provider
Commercial Member

SHARKEY-IMAGES's Avatar

Join Date: Jun 2001
Location: Sharkey-Images.com
Posts: 19,673
Default

As far as OL is concerned I can direct you to this story done by Ginger Gardiner, September 2007


Although some small parts are prepreg, Outerlimits wet lays all large-scale components. “We build quickly anyway, so prepreg does not save us time, and our facility is air-conditioned, so we already control our environment and properties.” For wet layup, Outerlimits uses two older, manual, roller-type impregnators, which have been converted for pneumatic control. “Our modifications allow us to control the wet out of the material very precisely,” he says. “Our component weights do not vary by more than 2 percent.” Further, resin, reinforcements and core for each component are weighed prior to construction and the finished boat is weighed, using load cells. “Our weights are so consistent that I can tell what options have been installed on a given model by how much it weighs.” Outerlimits lays up outer skins and core, then vacuum bags and cures them in its in-house-built computer-controlled oven, made using components purchased from oven supplier Watlow Electric Mfg. Co. (St. Louis, Mo.). Then the inner skin is wet layed, bagged and cured. The epoxy parts reach initial cure at room temperature and then are postcured in the oven at 140°F/60°C over a 26-hour period, including an eight-hour dwell.

The Outerlimits staff has a long history in Nomex-cored carbon epoxy sandwich construction. Many of its laminating crew came onboard when Outerlimits bought nearby sailboat builder and subcontractor Carroll Marine. Some of the former Carroll Marine staff worked with Gougeon Brothers (now Pro-Set Inc., Bay City, Mich.) to develop its Pro-Set epoxy resins for marine construction.

Today, SP laminating epoxy (SP is the marine business division of Gurit AG, Wattwil, Switzerland) is the resin of choice. The company avoids costly, hard-to-get aircraft-grade fiber and tries to produce most parts from four basic reinforcements — unidirectional, ±45°, lightweight and heavyweight 0°/90° — to reduce inventory. Outerlimits buys from several manufacturers to ensure supply, including Gurit (Isle of Wight, U.K.), JB Martin, SEAL SpA (Legnano, Italy) and T.E.A.M. Inc. (Slatersville, R.I.), sourced through distributor Core Composites (Newport, R.I.).

Outerlimits continually looks for ways to increase carbon construction. One example, says Crawford, is its all-carbon head unit (toilet). “The unit also functions as a bulkhead, so there is a structural benefit,” he explains, “but, really, we do it purely for weight savings, and we can build it with material left over from constructing other parts of the boat, so we get significant weight savings at very little cost.”
----------------------------------------------------------------------
I highlighted reinforcements and core to show that there are other materials included in the laminate other than Carbon Fiber.
__________________
www.TimSharkey.com/

Digital Photography & Video one BYTE at a time !
SHARKEY-IMAGES is offline
Reply With Quote
Old 01-26-2008, 12:57 AM
  #40
Registered

Join Date: Jul 2007
Location: Austin,Texas
Posts: 2,111
Default

But Tim Carbon is cool.
MOBILEMERCMAN is offline
