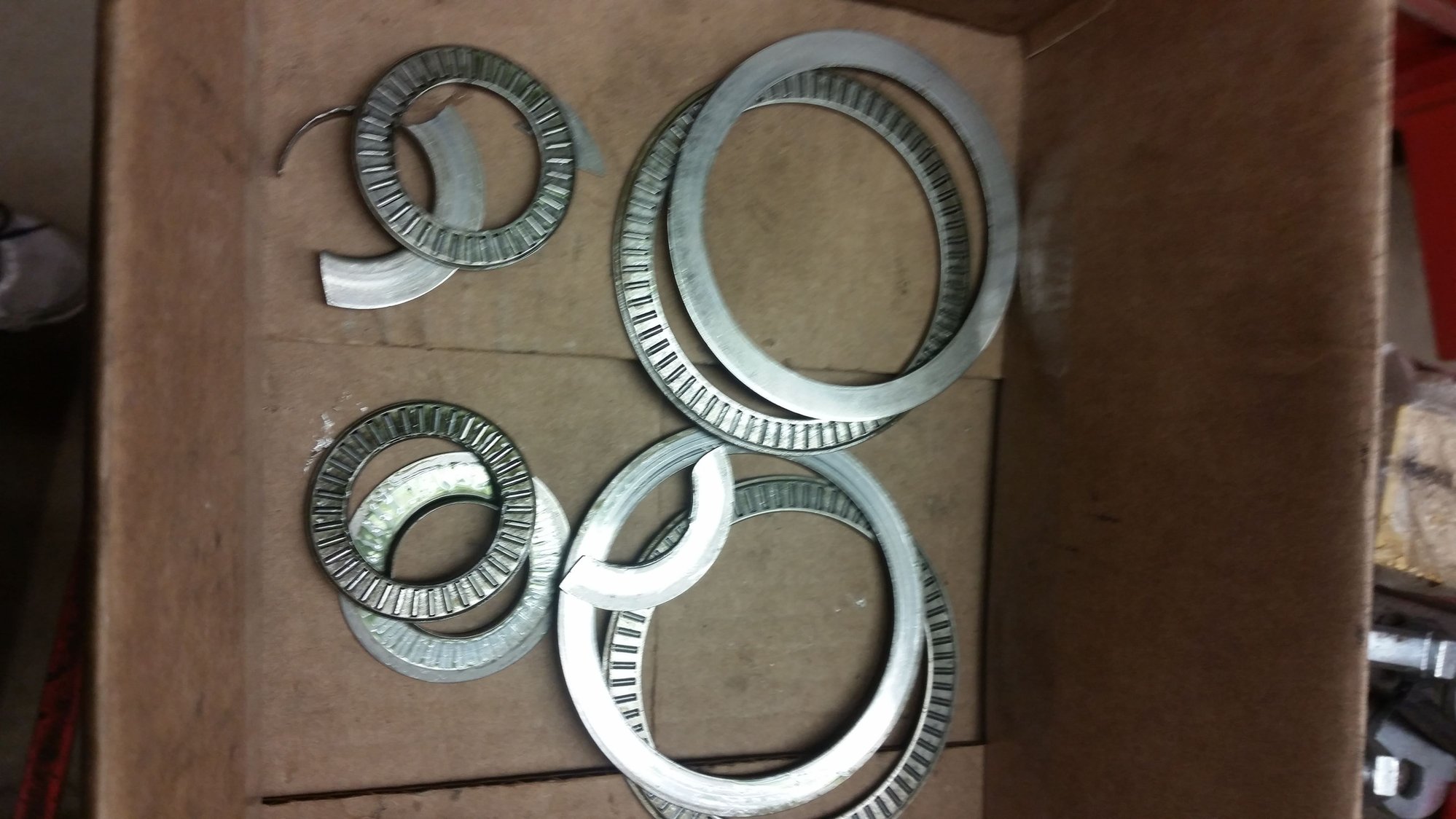

I pulled my drive apart. Vertical shaft is broke but I have a few questions. Is there a bearing kit for a bravo one upper unit and a seal kit? Any help is greatly appreciated. Also are the races where the thrust collars on the shaft ride.. Are they replaceabe or is it part of the cap and the upper unit? Can anyone lead me to a parts blow up of the drive assy with part numbers? Thanks in advance.
riverrunner242 is offline
Reply With Quote
Old 04-15-2018, 08:44 PM
  #2
Registered

Join Date: Mar 2009
Location: OFallon,Mo.
My Boat: 83' Nordic 23' Viking 505 BBC TRS Drive
Posts: 1,703
Default

Click on your serial number range.

https://www.perfprotech.com/mercury-...04/BRAVO%20ONE
picklenjim is offline
Reply With Quote
Old 04-15-2018, 09:50 PM
  #3
VIP Member
VIP Member

Join Date: Nov 2002
Location: ankeny,ia.
Posts: 3,503
Default

The. Clutch shaft bearings are replaceable, you can just drive the one in the case out the bottom, the one in the cap, you need to use a slide hammer and puller, there’s a puller sold by merc to remove the driven gear races on the bearing towers
JaayTeee is offline
Reply With Quote
Old 04-15-2018, 09:55 PM
  #4
Platinum Member
Platinum Member

Tinkerer's Avatar

Join Date: Jan 2002
Location: ALTO, MI
My Boat: 2001 Daytona 26, 1992 SCARAB 34, 1989 25 Checkmate Convincer, 1977 Glastron Carlson CVX 18
Posts: 4,213
Default

Can you afford to pay for this twice???
If things are not put together properly with the proper shims You will be fixing it again SOON.
Have someone repair it that has the proper tools and knowledge.
Tinkerer is offline
Reply With Quote
Old 04-15-2018, 09:56 PM
  #5
Registered

tripps's Avatar

Join Date: Mar 2001
Location: babylon,NY 11702-4116
My Boat: boating
Posts: 1,768
Default Bravo

Originally Posted by riverrunner242 View Post



I pulled my drive apart. Vertical shaft is broke but I have a few questions. Is there a bearing kit for a bravo one upper unit and a seal kit? Any help is greatly appreciated. Also are the races where the thrust collars on the shaft ride.. Are they replaceabe or is it part of the cap and the upper unit? Can anyone lead me to a parts blow up of the drive assy with part numbers? Thanks in advance.
that alignment don't look good
tripps is offline
Reply With Quote
Old 04-15-2018, 10:00 PM
  #6
Registered

tripps's Avatar

Join Date: Mar 2001
Location: babylon,NY 11702-4116
My Boat: boating
Posts: 1,768
Default Bravo

So if a Dr has a steel tower what is a stock one made of???
tripps is offline
Reply With Quote
Old 04-15-2018, 10:25 PM
  #7
VIP Member
VIP Member

Join Date: Nov 2002
Location: ankeny,ia.
Posts: 3,503
Default

Originally Posted by tripps View Post
So if a Dr has a steel tower what is a stock one made of???
aluminum... it’s part of the case... X drives have a steel tower, std bravo’s dont
JaayTeee is offline
Reply With Quote
Old 04-16-2018, 06:17 AM
  #8
Registered
Thread Starter

Join Date: Oct 2011
Posts: 123
Default

riverrunner242 is offline
Reply With Quote
Old 04-16-2018, 07:02 AM
  #9
Registered
Thread Starter

Join Date: Oct 2011
Posts: 123
Default




I was wondering if this was replaceable. It apperars to be part of the housing
riverrunner242 is offline
Reply With Quote
Old 04-16-2018, 07:07 AM
  #10
Registered
Thread Starter

Join Date: Oct 2011
Posts: 123
Default


Same with this one
riverrunner242 is offline
Reply With Quote
