Default O2 Sensor Location

Guys, I having my CMI tails setup for O2 bungs. I tried doing some searches but didnít get anywhere.

What side are you installing O2 sensors? Iíve seen a couple people reference doing the odd bank but with a single plane intake #8 is the farthest away. Does it matter? I have twins so maybe even on one, odd on the other?

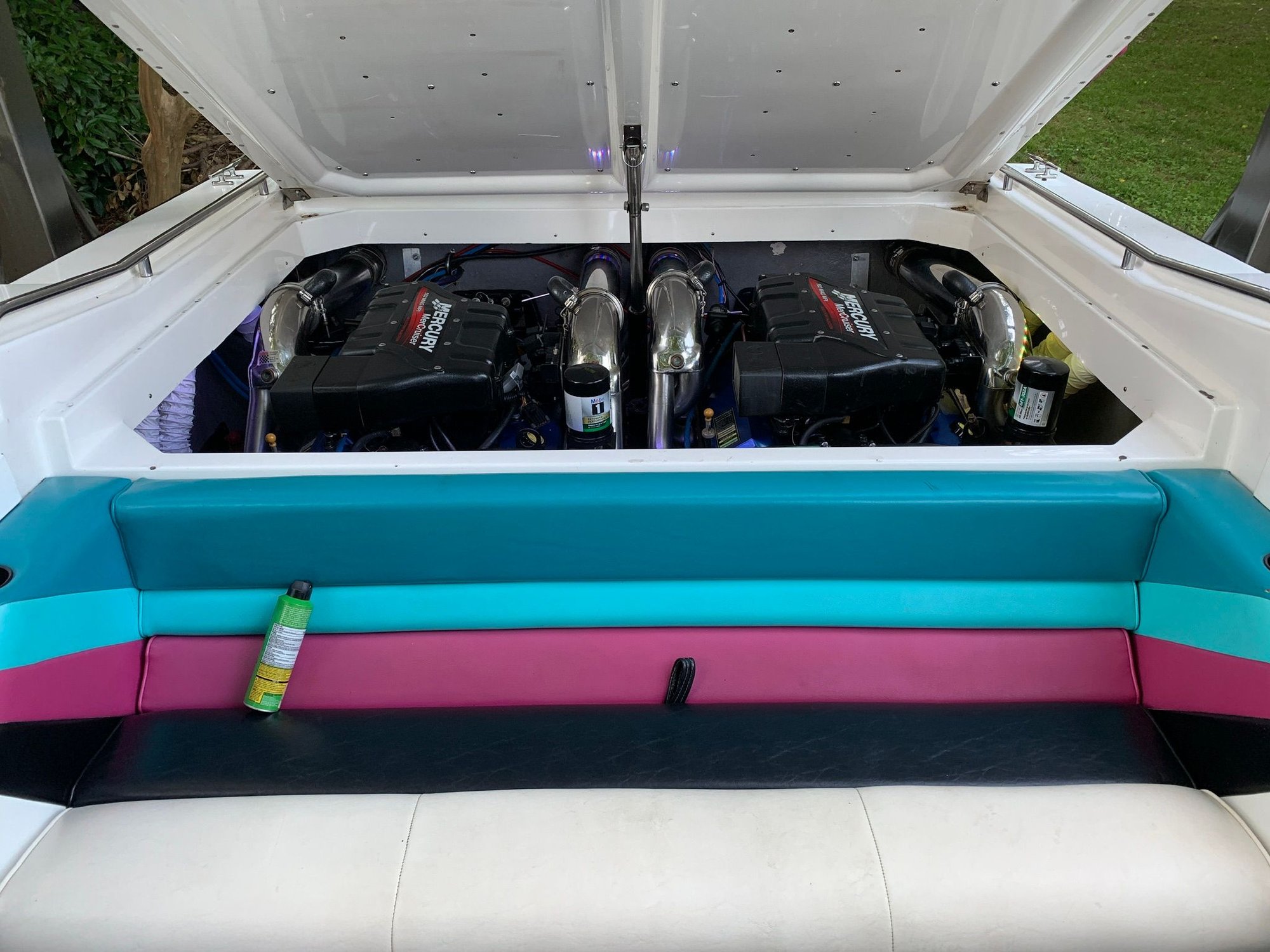

Either way, looks like Iíll need to have them inline with then water inlet. Not a lot of room. Pic below is pre-carb builds.

Thoughts? Iím headed out shortly to drop off pipes.


TomZ is offline
The following users liked this post:
Griff (07-07-2021)
Old 07-06-2021, 12:44 PM
  #2
Platinum Member
Platinum Member
iTrader: (6)

F-2 Speedy's Avatar

Join Date: May 2012
Location: Midwest & T-Rock
Posts: 8,545
Received 1,178 Likes on 572 Posts
Default

Id do all four pipes then cap the ones you are not using, 2 to 3 inches aft of the jumper hose should be fine, orient them so they kind of face each other on each engine is what Id do,
F-2 Speedy is offline
The following users liked this post:
TomZ (07-06-2021)
Old 07-06-2021, 01:13 PM
  #3
Registered
iTrader: (1)

Join Date: Apr 2014
Posts: 2,084
Received 98 Likes on 62 Posts
Default

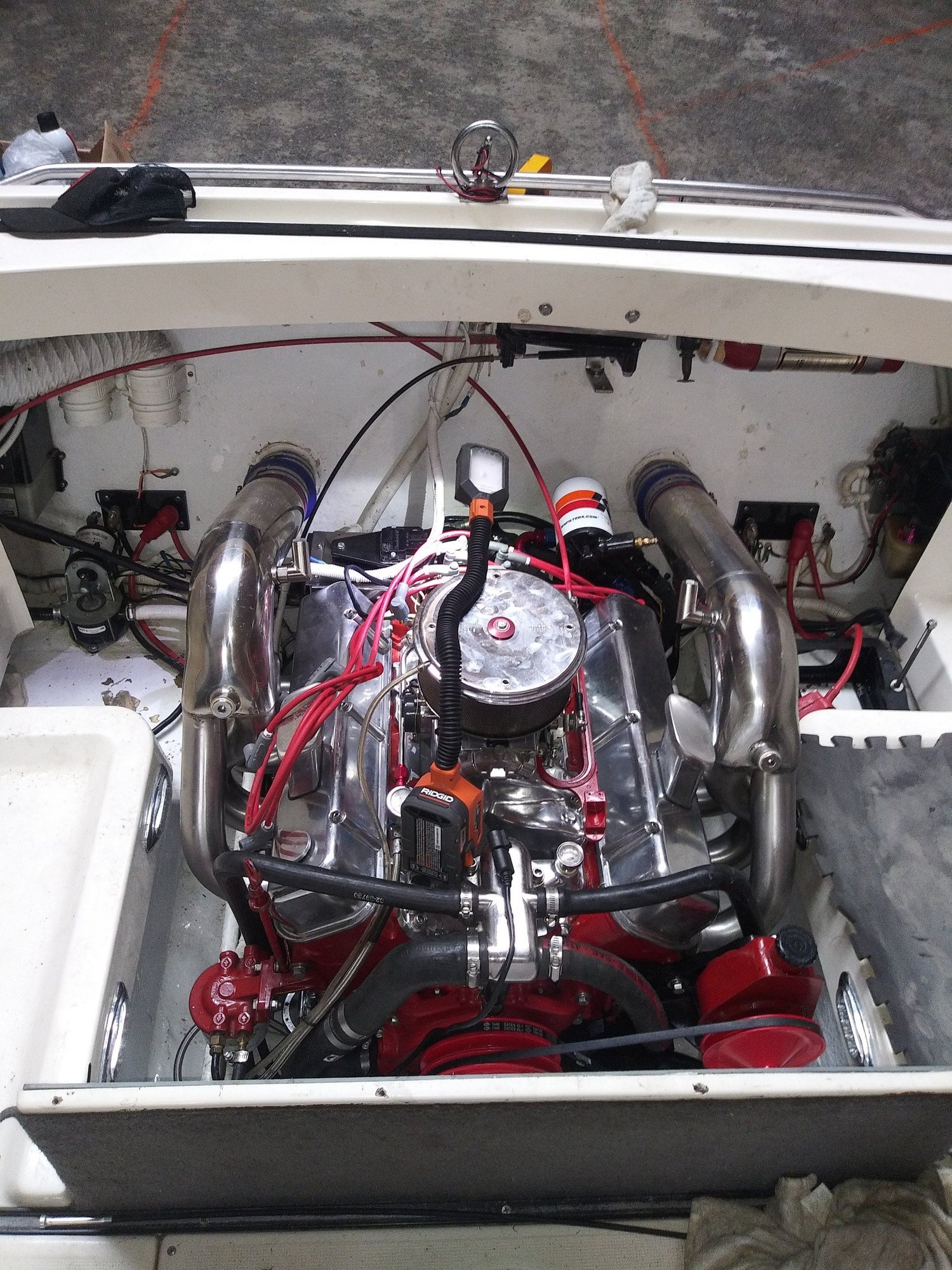

Here is where I mounted mine. Sensors not installed in this picture but you can see where they go. These were installed by CMI. Sorry for the mess I was finishing this years engine install.
Good Luck


GLENAMY 242SS is offline
The following users liked this post:
TomZ (07-06-2021)
Old 07-06-2021, 01:25 PM
  #4
Registered
iTrader: (4)

Rookie's Avatar

Join Date: Jan 2003
Location: Grand Rapids, MI
Posts: 5,119
Received 603 Likes on 296 Posts
Default

I have mine at approximately 1 o'clock with the bung 1/4" off of the band. Mine have a 1" ring before by the band. It worked great on the dyno.


Rookie is offline
The following users liked this post:
TomZ (07-06-2021)
Old 07-06-2021, 01:31 PM
  #5
VIP Member
VIP Member
Thread Starter

TomZ's Avatar

Join Date: Feb 2001
Location: Virginia Beach, VA
Posts: 2,834
Received 373 Likes on 241 Posts
Default

Got it. Much appreciated guys!

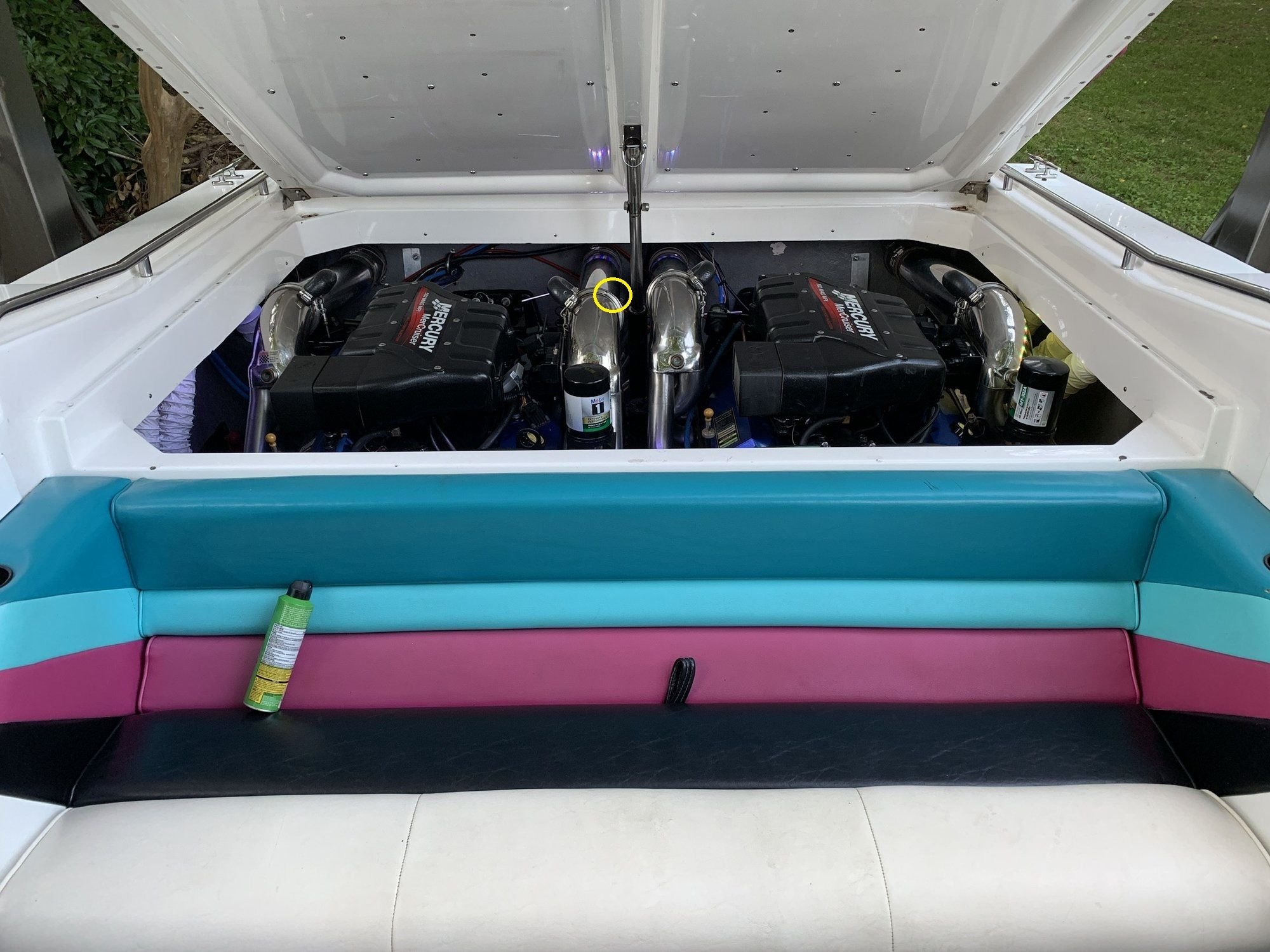

Theyíre marked 2.5 inches down from the jumpers.
TomZ is offline
Old 07-06-2021, 01:36 PM
  #6
VIP Member
VIP Member
Thread Starter

TomZ's Avatar

Join Date: Feb 2001
Location: Virginia Beach, VA
Posts: 2,834
Received 373 Likes on 241 Posts
Default

Originally Posted by Rookie View Post
I have mine at approximately 1 o'clock with the bung 1/4" off of the band. Mine have a 1" ring before by the band. It worked great on the dyno.

Wish I had the room outboard. Itís really tight against the sides. Wrenching anywhere around that area is a major pain.
TomZ is offline
Old 07-06-2021, 01:37 PM
  #7
VIP Member
VIP Member
Thread Starter

TomZ's Avatar

Join Date: Feb 2001
Location: Virginia Beach, VA
Posts: 2,834
Received 373 Likes on 241 Posts
Default

Hey Gary, off topic but did you still need an HP500 filter head?
TomZ is offline
Old 07-06-2021, 02:51 PM
  #8
Registered
iTrader: (1)

Join Date: Apr 2014
Posts: 2,084
Received 98 Likes on 62 Posts
Default

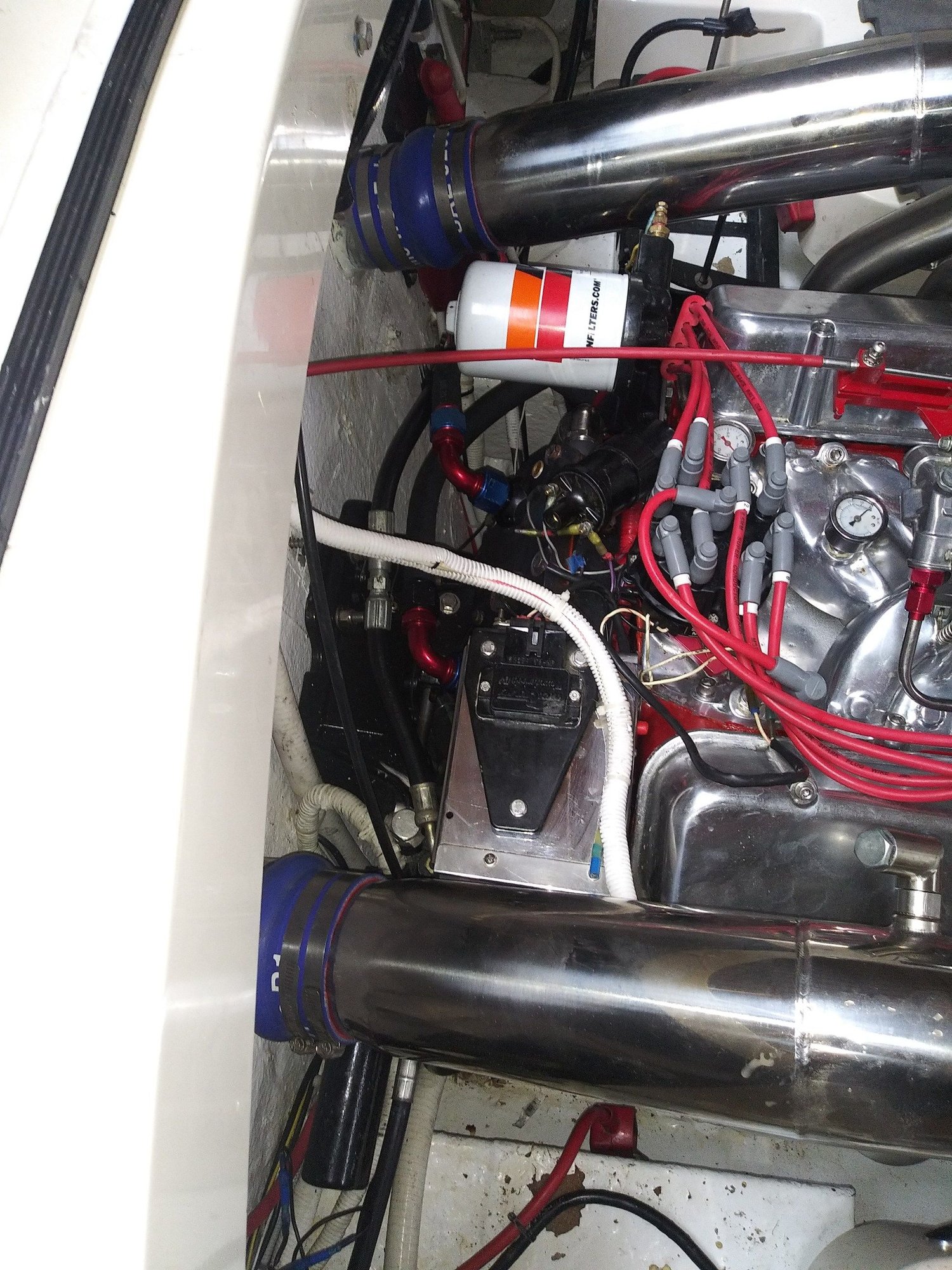

No it would not fit in the space I had. I modified my HP bracket to mount the Merc std head and added a temp sender to it. I used the Hardin 7 plate oil cooler that mounts onto the flywheel cover. All very tight but turns out very clean.
Again before clean up and detailing.


GLENAMY 242SS is offline
Old 07-06-2021, 04:19 PM
  #9
VIP Member
VIP Member
Thread Starter

TomZ's Avatar

Join Date: Feb 2001
Location: Virginia Beach, VA
Posts: 2,834
Received 373 Likes on 241 Posts
Default

Nice!

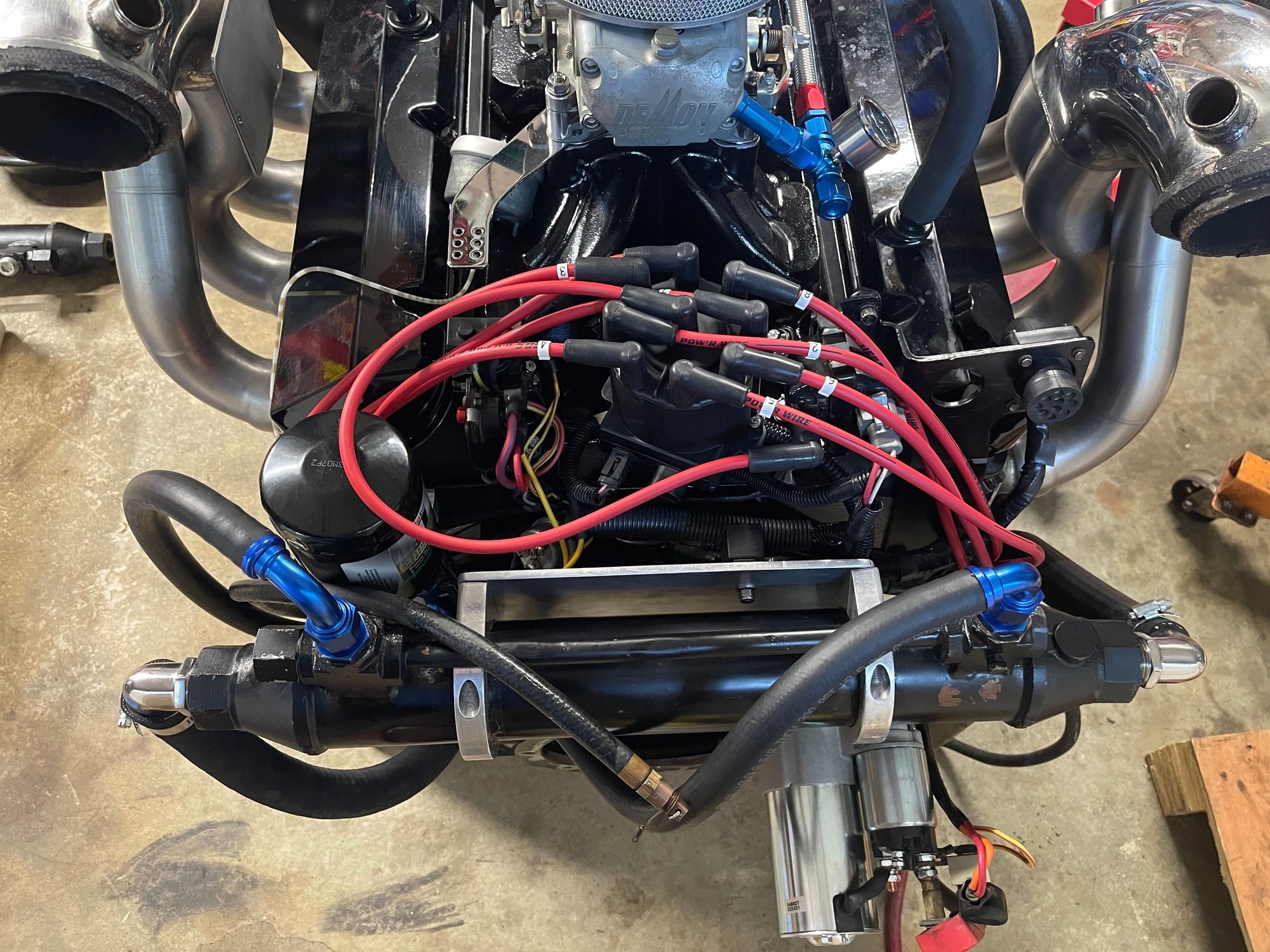

Mine took a whole different turn with locations on a lot of stuff. I made new brackets for everything on the backend. I have my filters vertical because there was no room at all with the monster oil cooler. End to end itís about even with the inside of the header tubes.




I hope it all fits back in the boat! Lol

Anyway, sorry to have hijacked my own thread. I dropped everything off at the fabricator this afternoon. I should have the pipes back Friday. I went ahead and had all four done.




Last edited by TomZ; 07-06-2021 at 06:06 PM.
TomZ is offline
The following users liked this post:
GLENAMY 242SS (07-06-2021)
Old 07-06-2021, 06:37 PM
  #10
Registered

Join Date: Nov 2007
Location: IL
Posts: 158
Received 2 Likes on 2 Posts
Default

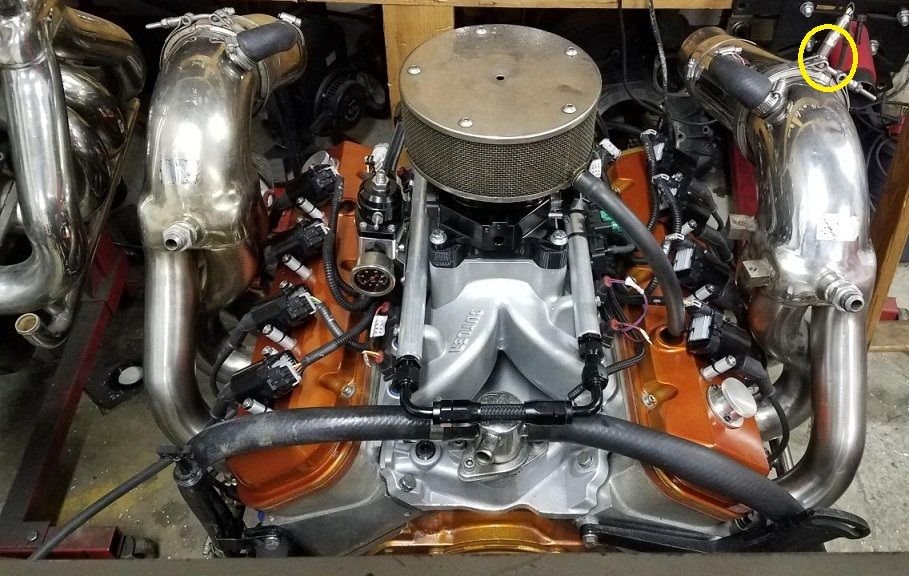

Here is the location of mine (before putting the extender on). About 10 o'clock, odd bank. I would also plan ahead for installing a bung extender/heat sink such as this linked below just in case you need it. This cured my issues of having water short out my o2 and I was lucky enough the o2 cable still cleared the hatch.

Heat sink/extender: Innovative HBX-1



rvander68 is offline
