Add on hydraulic steering with mismach parts?

Notices

Add on hydraulic steering with mismach parts?

Old 06-01-2022, 03:47 PM
  #1
Registered
Thread Starter

Join Date: Jan 2009
Posts: 391
Received 100 Likes on 60 Posts
Default Add on hydraulic steering with mismach parts?

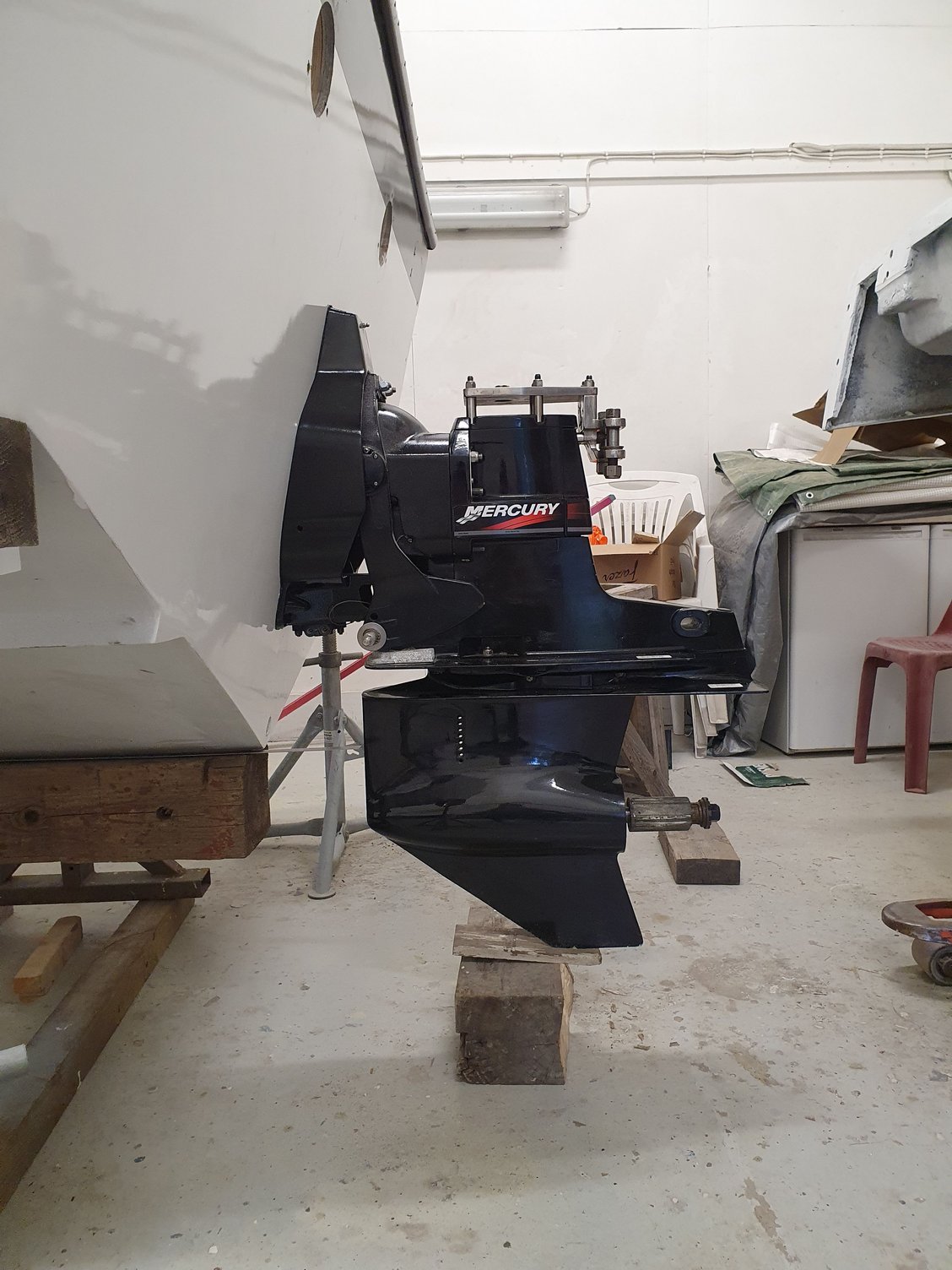

Need some help for locating my steering rams to right place in the transom. Latham drive bracket, marine machine steering rams with unknown transom brackets, but that is not the problem. Should both cylinders be in the end of its travel when the drive is fully turned? Is that even possible? Or should i just attach the cylinders in the drive bracket when they are in middle of their travel and then place the other end to the transom and bolt it there.




Last edited by JaniH; 06-01-2022 at 03:50 PM.
JaniH is offline
Old 06-01-2022, 05:44 PM
  #2
Registered

Join Date: Jul 2009
Location: USA, PA
Posts: 633
Received 223 Likes on 129 Posts
Default

That sure is an interesting attachment plate. Knowing nothing other than having installed my own 2 years ago, I would think the correct placement is to put the ram dead center of it's travel.

but feel free to get another opinion.
SabrToothSqrl is offline
The following users liked this post:
JaniH (06-02-2022)
Old 06-01-2022, 09:11 PM
  #3
Registered
iTrader: (4)

Rookie's Avatar

Join Date: Jan 2003
Location: Grand Rapids, MI
Posts: 5,381
Received 860 Likes on 418 Posts
Default

The center of the cylinder needs to be lined up to the center-line of the pivot pin on the transom assembly. (center of the electric trim indicators)
Rookie is offline
The following users liked this post:
JaniH (06-02-2022)
Old 06-01-2022, 10:57 PM
  #4
Charter Member # 55
Charter Member

Griff's Avatar

Join Date: Oct 2000
Location: Omaha/LOTO
Posts: 18,919
Received 1,217 Likes on 602 Posts
Default

The rams should be halfway extended when the drive is straight. Ideally you would want everything to be on the same plane as the hinge pins. You just need to make sure there is nothing binding in the steering when trimming the drive up or down or turning side to side. Here some pics on my Pantera. It was not all on the same plane as the hinge pins, but there was no binding. I think the only way you will figure out the best place for the mounts is to mock it all up.




Griff is offline
The following 3 users liked this post by Griff:
JaniH (06-02-2022), the deep (06-02-2022), TomZ (06-02-2022)
Old 06-01-2022, 11:04 PM
  #5
Registered

Join Date: Jun 2010
Posts: 4,438
Received 584 Likes on 269 Posts
Default

Originally Posted by JaniH View Post
Need some help for locating my steering rams to right place in the transom. Latham drive bracket, marine machine steering rams with unknown transom brackets, but that is not the problem. Should both cylinders be in the end of its travel when the drive is fully turned? Is that even possible? Or should i just attach the cylinders in the drive bracket when they are in middle of their travel and then place the other end to the transom and bolt it there.

yikes. Who manufactures that bracket? Whoever thought putting bolts in shear with that much of a moment arm…needs to re-think the design. Smh
1MOSES1 is offline
Old 06-01-2022, 11:04 PM
  #6
Registered

Join Date: Aug 2005
Location: Gothenburg, Sweden
Posts: 253
Received 4 Likes on 4 Posts
Default

Also before you drill the transom, make sure there is nothing in the way in the in the engine compartment.
badluck is online now
The following users liked this post:
JaniH (06-02-2022)
Old 06-02-2022, 01:12 AM
  #7
Registered
Thread Starter

Join Date: Jan 2009
Posts: 391
Received 100 Likes on 60 Posts
Default

Originally Posted by 1MOSES1 View Post
yikes. Who manufactures that bracket? Whoever thought putting bolts in shear with that much of a moment arm…needs to re-think the design. Smh
Latham bracket, should be quality brand.
JaniH is offline
Old 06-02-2022, 08:23 AM
  #8
Registered
Thread Starter

Join Date: Jan 2009
Posts: 391
Received 100 Likes on 60 Posts
Default

One important question is that are the shafts chromed stainless steel or just stainless steel? It would be much easyer for me to machine the threads off from the end of the shaft and machine it to rectangular shape, and trill hole thru it for clevis joint.
JaniH is offline
Old 06-02-2022, 10:47 AM
  #9
Registered

Join Date: Jan 2021
Location: Gothenburg, Sweden
Posts: 123
Received 36 Likes on 24 Posts
Default

Originally Posted by JaniH View Post
Should both cylinders be in the end of its travel when the drive is fully turned?
On my outboards with Latham wing plates and Mayfair/ Marine Machine cylinders and pins, cylinders do not extend fully when fully turned.
Markus is offline
The following users liked this post:
JaniH (06-02-2022)
Old 06-02-2022, 11:28 AM
  #10
Charter Member # 55
Charter Member

Griff's Avatar

Join Date: Oct 2000
Location: Omaha/LOTO
Posts: 18,919
Received 1,217 Likes on 602 Posts
Default

Originally Posted by JaniH View Post
One important question is that are the shafts chromed stainless steel or just stainless steel? It would be much easyer for me to machine the threads off from the end of the shaft and machine it to rectangular shape, and trill hole thru it for clevis joint.
I don't see that being a good idea at all. It would seriously weaken the ends of the shafts. It will also reduce the length of the rod. Just get the correct rod ends/joints like in my pics.
Griff is offline
