IC plumbing - is this crazy?


Looking at adding a intercooler to my roots set up.
The idea of drilling holes to add a transom pick up dosent really appeal to me.
so!
Has anyone use a drive shower style pick up? Mounted to the out drive?

Then have the IC dump back onto the drive?

Why can’t you do it off the bravo pump. T with say a 5-10psi regulator do it doesn’t cool off at idle. ?

https://www.cpperformance.com/p-977-...se-12-npt.aspx


https://cimg6.ibsrv.net/gimg/www.off...6fe6500ff.jpeg

An Intercooler needs lots of volume of water and about 20psi of pressure.
None of the above are sufficient especially a small drive shower pickup, that would be a complete waste of time and $$.
Transom pickup is easy if the engines are out .

LTZ,

Pretty sure the IC water for the ProCharger on our boat is just tapped off the incoming sea water.

Thanks. Brad.

Depends on if you want it to actually function...not being a smarta$$ but if you tee it off like that you won't get enough flow through it to actually make a difference in my opinion. I know you don't want to put holes in the transom but a dedicated pickup and dump is really the only way to make it function without a dual stage water pump but then you can run into fuel puddling issues if it runs water through it at an idle. I made a pickup for mine to go better with my setup as none of the store bought ones would really work out and then made a twin dumps that incorporate the -4 an dumps from the back of the engine and the -12 an dumps from the IC. I start seeing pressure as I'm coming on plane and WOT I see about 20-25 lbs at the inlet.

my worry with the T is not enough water/ flow to feed the motor and the cooler. its a standard XR bravo 1 drive with the duel pickups.

i dont want to pull the motor if i dont have to. i know thats the better way to do it i just done have a place close enough to do it that i feel would do it right that make it worth while at this point at time. not very many "fast" boats up there

my doofie thoughts where this.
the back of the hull/ transom is going to see the same kidna water conditions as the cavitation plate - i think, or am i wrong?

https://teaguecustommarine.com/ss-fl...wer-2-bolt-7-8

have some thing like that mounted, run a line into the cooler, run the pressure valve on the dump so it acts as the regulator if she pulls air or anything so i don't air pack the cooler
figure at idle and low speeds wont have enough pressure to worry about fuel puddling

very much a noob in this area so please give any and all input

I don't think you will get anywhere near the volume and pressure out of that setup...I see what you're trying to do but don't think especially being that far back on the drive you won't see the amount of "clean" water back there like you would on the bottom of the boat at the transom. Mine is mounted off center and is long enough that I can easily get to it with the motor in...not sure of your setup or what kind of room you have.

the prop would create "dirty" water and mounting a pick up at the leading edge of the drive seems like a bad idea - comes loose and the prop eats it haha
its a 575sci in a shockwave tremor.

ill probably have to put a pin in this and just do it right. no" easy or quick horsepower"

Exactly...can you get down beside the motor to mount one? you can drill it from the outside...I think mine is about 18-20ish inches off the center line...maybe a little more.

The merc 700sci uses the same water pump as a 500/525 bravo boat. The intercooler feed is t’d off the ps cooler.

I used a thru-hull pickup on my Advantage cat. It can be mounted pretty much anywhere that you can get to the bottom of the boat and be in the water at all speeds. I believe it was 1" npt thread. I ran a -16 line into the cooler and a pair of -8 lines out that dumped on the drive. It would make about 10psi at planing speeds and around 25psi at 100mph. I don't think you will get anywhere near enough water from a drive shower pickup and they cause their own problems with prop cavitation and such.

they are also closed loop, if I wasent supplying the motor with water too, id go that route

why not run a two stage sea pump and dump it into the exhaust some how

think the bravo will be able to pull up enough water to support that?

How big are your fittings on your IC? Like mentioned, procharger tees into the water from pump BUT they only feed IC with a 1/2" od fittings or so fitting as in 1/2" hose w like 3/8ths threads. Might not be enough for your requirements

Im running two stage pumps on my whipple 525's..........-16 to the engine and -12 to the IC works great been running it for two years now, Im running IMCO lowers but you should be fine with the dual pickups

3/4' fittings on the cooler so run a -10 or -12 line
i heard the imco has larger(?) picks ups on it

worse case i try and still have to drill holes

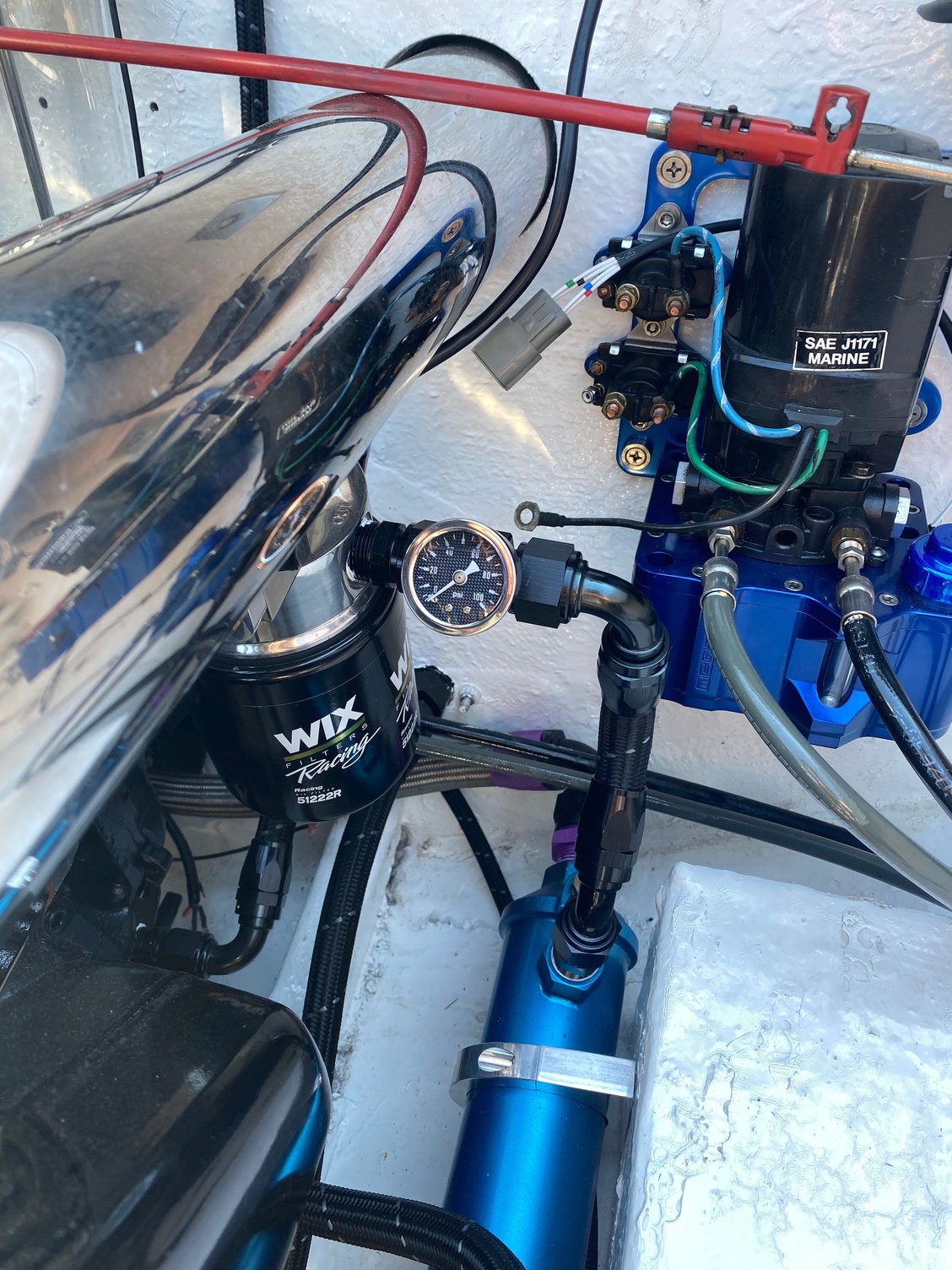

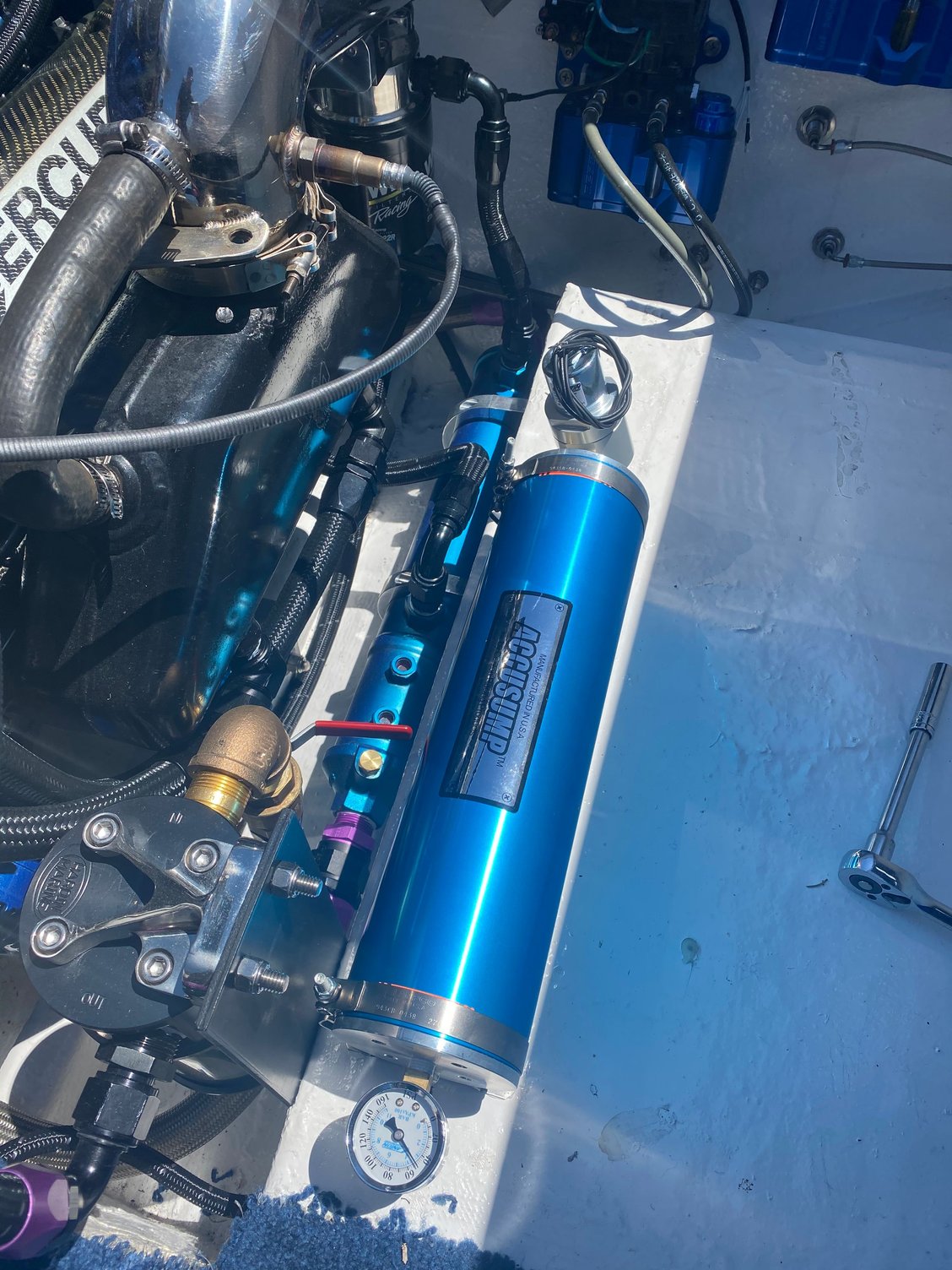

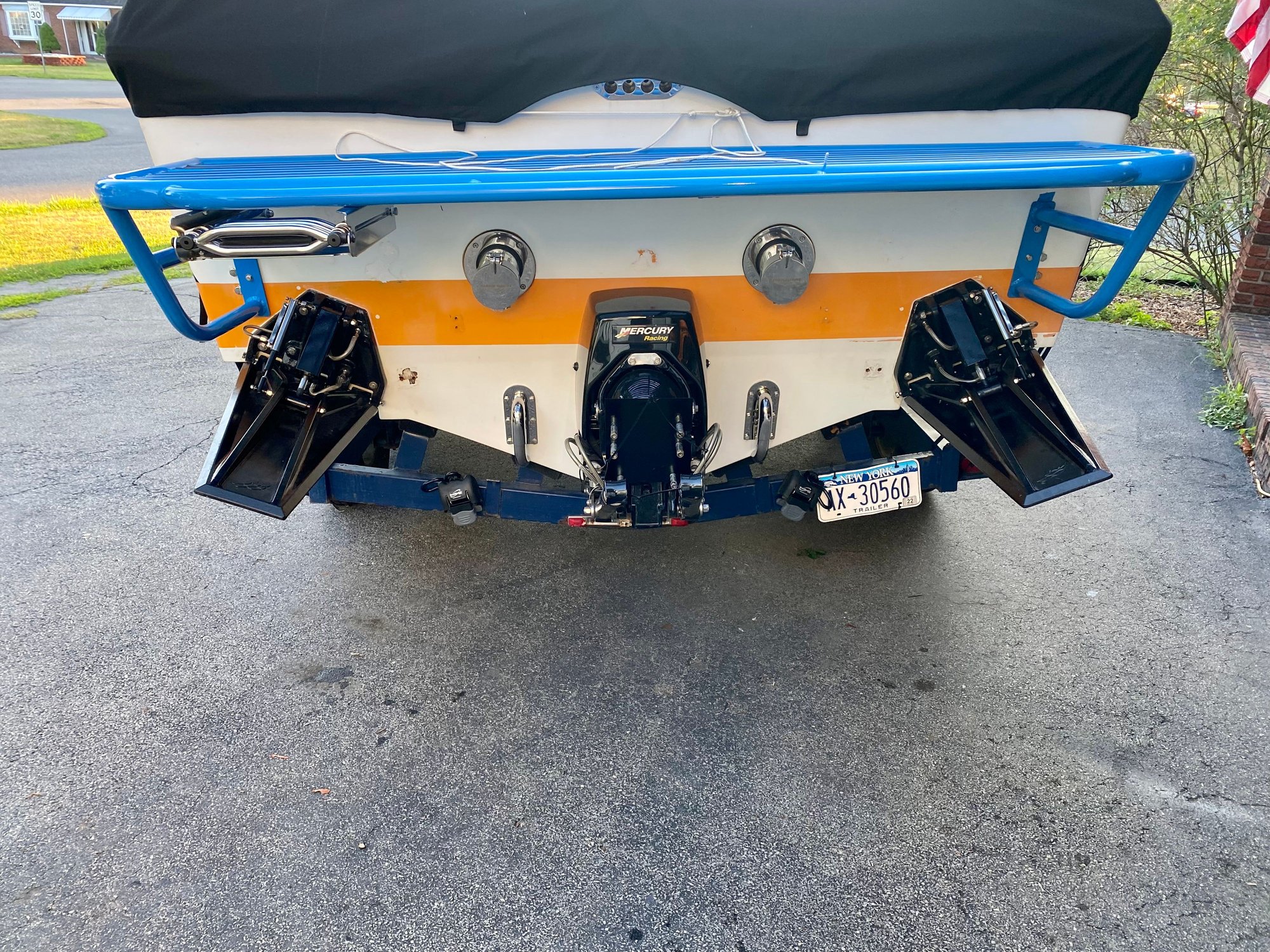

I was in the same boat when I was plumbing but went with teague marine pickup both for engine cooling and IC. Picked up the ones with AN fittings so it ties in with all my other plumbing.
https://cimg5.ibsrv.net/gimg/www.off...0b8e5eafb.jpeg
https://cimg4.ibsrv.net/gimg/www.off...3c98c263a.jpeg
https://cimg4.ibsrv.net/gimg/www.off...b8f99ac54.jpeg

Ran the cooler for my procharger off the bravo pump, DWP lower, and dumped out the side. Never had any weak flow issues

I went with -20an for my raw pump / engine and -12an for my IC each with its own strainer and pressure release valve.
