Quote:
Originally Posted by outonsafari View Post
how did you bond the joints on that transom
where would you source that 20 pound foam that the stringers are made from
and how thick is that foam
surface layer that covers five axis, could you explain that
thanks

typing at the same time you and beat me to it
the material on the transom looks very heavy (stout)
I sure hope so as I'm stuffing the power to her!!
adk61 is offline
Reply With Quote
Old 10-04-2017, 10:06 AM
  #33
Platinum Member
Platinum Member
Trade Score: (3)

outonsafari's Avatar

Join Date: May 2009
Posts: 757
Default

0/90 is woven roving ? 0/45/45 is tri ax ? 45 / 45 is bi ax ?
i read about warp, fill, thread, tow and so on but it just got me a headache and. more confused !

last year i pulled apart some 1708, because it sqee gee'd w/ the stitching and at a 45 w/ the top layer of 17 nice,
but not against the stitch or top layer.
i was thinking placement (direction of stitching c/w strength) and how i would sqee gee it once it was in place. "overthinking it."

so if placed 2 layers of bi-ax material, 1 layer stitching north/south, and the 2nd layer stitching east/west would it be 4 axis

thanks for putting up another thread like this and keep throwing out the insider stuff like the trick w/ the roving

Last edited by outonsafari; 10-04-2017 at 10:08 AM.
outonsafari is offline
Reply With Quote
Old 10-04-2017, 11:03 AM
  #34
Neno the mind boggler
VIP Member
Thread Starter
Trade Score: (1)

glassdave's Avatar

Join Date: Sep 2001
Location: toledo oh
My Boats: Batboat, 38 Scarab Thunder, 16 Sidewinder, 27 Magnum
Posts: 12,649
Default

Quote:
Originally Posted by outonsafari View Post
0/90 is woven roving ? 0/45/45 is tri ax ? 45 / 45 is bi ax ?
i read about warp, fill, thread, tow and so on but it just got me a headache and. more confused !

last year i pulled apart some 1708, because it sqee gee'd w/ the stitching and at a 45 w/ the top layer of 17 nice,
but not against the stitch or top layer.
i was thinking placement (direction of stitching c/w strength) and how i would sqee gee it once it was in place. "overthinking it."

so if placed 2 layers of bi-ax material, 1 layer stitching north/south, and the 2nd layer stitching east/west would it be 4 axis

thanks for putting up another thread like this and keep throwing out the insider stuff like the trick w/ the roving
0/90 is one ply running in warp (length of roll) and one ply running in fill (width of roll) and yes you can orient these two fabrics to be on four axis'. I'm not really sure if you gain any advantage in any more then that though at least not for our purposes. I have always thought multiple 0/90,s give a stiffer laminate it the direction of the fabric and mutli axis around four is more dynamic. I was also always taught that you can direct strength with fabric direction but you have to be mindful of the minor axis and what you give up in doing so.

just for educational sake here is what the numbers mean when discussing fabric
The first two number denote fabric weight in sq/yds and the second two denote mat weight in sq/ft
1708 = 17 oz bi ax with a 3/4 oz mat stitched on
1715 = would be same as above but 1.5oz mat
1700 = same as above but no mat (this is an epoxy or VE onky fabric as no mat should ever be used in an epoxy system)
1808 = is an 18oz fabric with a 3/4oz mat stitched on and this fabric is generally a Chinese import and a 0/90
2200 = the triax i use is a Vectorply with a full uni in warp and additional 45/45 bi ax in three layers totaling just under 22oz . . . . good stuff
outonsafari likes this.
__________________
Throttles- Cleveland Construction 377 Talon
08 OPA Class 1 National Champion
08 Class 1 Geico Triple Crown Champion
08 OPA High Points Champion
10 OPA Class 1 National Champion ( happy now Ed! )

Last edited by glassdave; 10-04-2017 at 11:19 AM.
glassdave is offline
Reply With Quote
Old 10-04-2017, 12:32 PM
  #35
Fast Priorty II Nor-Tech
Platinum Member

bill63's Avatar

Join Date: Aug 2004
Location: Grosse Ile,Mi Kalkaska,Mi Ft Myers Beach,Fla
My Boats: 2017 nor-tech cc 400 R
Posts: 1,100
Default

Not to get off subject but what 388 skater race boat is that in your shop. Dont mean to hijack. btw you do awesome work.
adk61 likes this.
bill63 is offline
Reply With Quote
Old 10-04-2017, 12:51 PM
  #36
Neno the mind boggler
VIP Member
Thread Starter
Trade Score: (1)

glassdave's Avatar

Join Date: Sep 2001
Location: toledo oh
My Boats: Batboat, 38 Scarab Thunder, 16 Sidewinder, 27 Magnum
Posts: 12,649
Default

that was JD Byrider, was here for touch-ups . . . . lots of little ones all over. Beautiful boat that is and i believe the very first race 388. Tony's a great dude hope to see him out there racing again . . . and thanks for the compliment i still really enjoy doing this stuff weather it be helping out a guy on here or cutting the heck out of a boat . . . like this one lol . . . its a sick hobby gone wild
__________________
Throttles- Cleveland Construction 377 Talon
08 OPA Class 1 National Champion
08 Class 1 Geico Triple Crown Champion
08 OPA High Points Champion
10 OPA Class 1 National Champion ( happy now Ed! )
glassdave is offline
Reply With Quote
Old 10-04-2017, 06:38 PM
  #37
Platinum Member
Platinum Member

Nice Pair's Avatar

Join Date: Mar 2005
Location: Bethel Island, CA
My Boats: 28 Skater/twin 300XS's
Posts: 724
Default

Looks good, Thanks for the explanation on the D-port fiberglass panel press tool. ;-)
Nice Pair is offline
Reply With Quote
Old 10-04-2017, 07:40 PM
  #38
Neno the mind boggler
VIP Member
Thread Starter
Trade Score: (1)

glassdave's Avatar

Join Date: Sep 2001
Location: toledo oh
My Boats: Batboat, 38 Scarab Thunder, 16 Sidewinder, 27 Magnum
Posts: 12,649
Default

Quote:
Originally Posted by Nice Pair View Post
Looks good, Thanks for the explanation on the D-port fiberglass panel press tool. ;-)

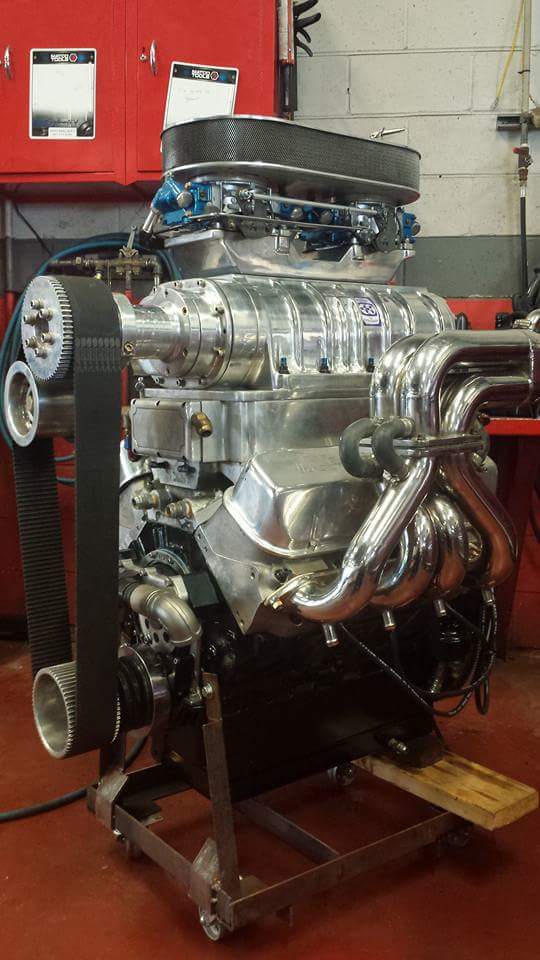

no wimpy oval ports here . . . its gotta gotta hold a couple of these.
