Latham External Hydraulic Steering for Bravo One

Reply

Old 02-07-2019, 06:56 AM
  #1
Platinum Member
Platinum Member
Thread Starter

Twin O/B Sonic's Avatar

Join Date: Mar 2002
Location: Cardington Ohio
My Boat: '86 25' Checkmate Convincor twin O/B's
Posts: 2,676
Default Latham External Hydraulic Steering for Bravo One

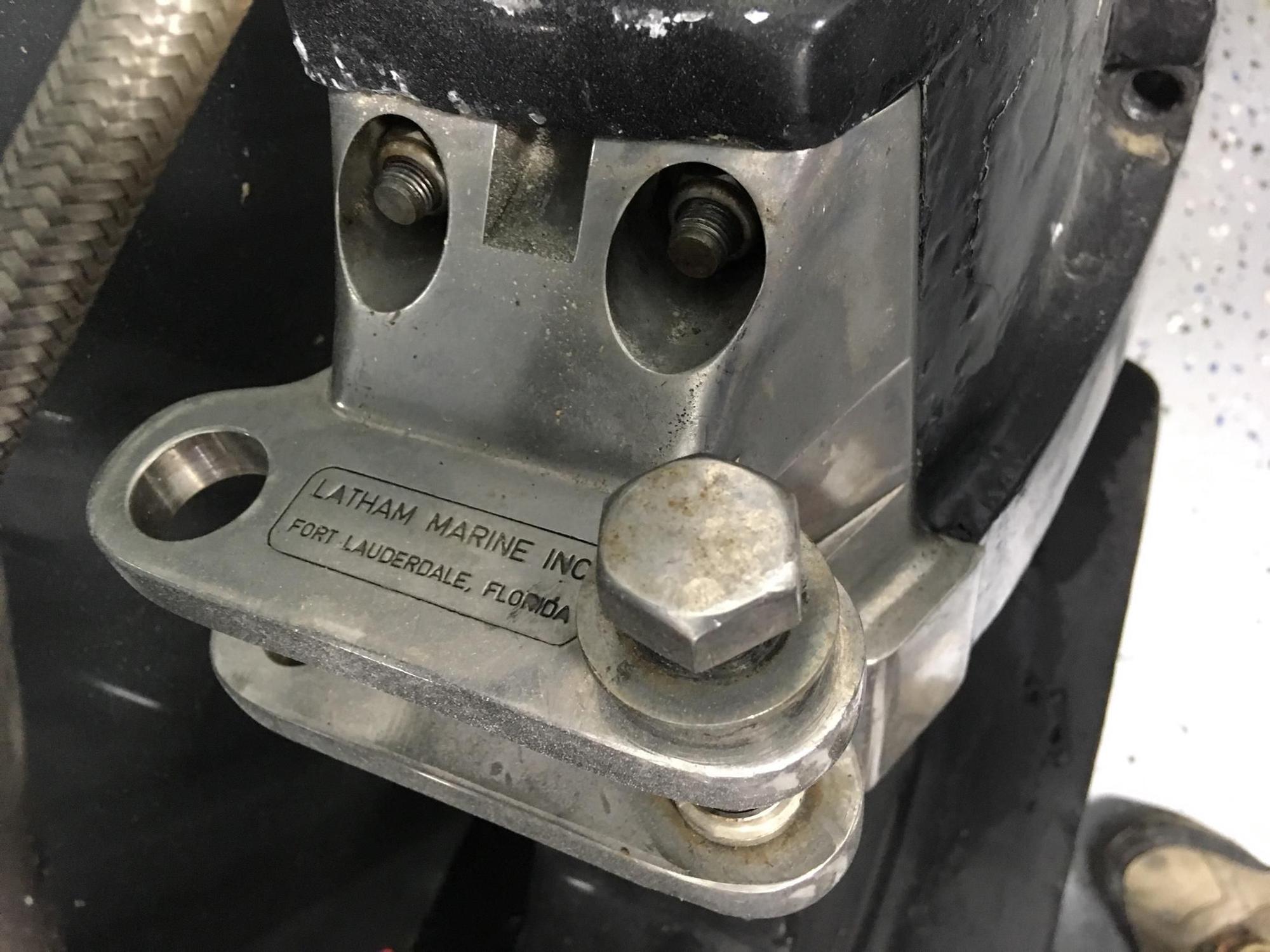

Ram, drive and transom mounts only.

Everything you need for the transom side hardware.
No leaks, E.C., easy clean up to pass as new.

$600. plus the ride and I'll throw in a drive shower.

Thx, Gary



937-571-1239
Twin O/B Sonic is offline
Reply With Quote
Old 02-07-2019, 07:22 AM
  #2
Brotherhood #1
Gold Member
iTrader: (23)

Sick Stinger's Avatar

Join Date: Sep 2006
Location: Swansea Mass
My Boat: 33 Sutphen outrageous P3
Posts: 11,214
Default

Great buy for some one who is looking to do add on.
Twin O/B Sonic likes this.
Sick Stinger is online now
Reply With Quote
Old 02-07-2019, 11:09 AM
  #3
Platinum Member
Platinum Member
Thread Starter

Twin O/B Sonic's Avatar

Join Date: Mar 2002
Location: Cardington Ohio
My Boat: '86 25' Checkmate Convincor twin O/B's
Posts: 2,676
Default

To those asking:

This would be part of a performance upgrade for any single, Bravo powered, OEM mehanically steered boat.

Youd remove your factory steering/helm from the dash and the cable running from it to the tiller arm in the bilge, behind the motor.
That style steering has a dozen places to pick up slop between drive and wheel.

Grab the drive and see how much side to side you have.
Now imagine the drive at speed, particularly on a vee bottom where you’re trying to balance it on the pad/vee.
Near impossible w/that set up.

W/this style, you mount the hydraulic ram between the outside of the transom and the drive itself.
Now try the same test.
The drive won’t move.

To complete the package you’d need a Capalano helm (e-bay), two hydraulic hoses from dash to bulkhead connectors on inside of transom (Seatstar hoses to length or custom made at any industrial supply) and lastly, two short, pigtail hoses from bulkhead connectors on outside of transom to ports on ram.

Bleed the system and you’re done.
Youll never look back.

As a bonus, it looks great.


Clear as mud?
Twin O/B Sonic is offline
Reply With Quote
Old 02-07-2019, 11:47 AM
  #4
Registered

Join Date: Dec 2018
Posts: 7
Default latham steering

I am putting hyd steering on my 1969 donzi. I have a alpha1 outdrive but can find a wing plate for it. is this single ram or duel rams?
blinds5.2 is offline
Reply With Quote
Old 02-15-2019, 02:59 PM
  #5
Platinum Member
Platinum Member
Thread Starter

Twin O/B Sonic's Avatar

Join Date: Mar 2002
Location: Cardington Ohio
My Boat: '86 25' Checkmate Convincor twin O/B's
Posts: 2,676
Default

Sold.
