Default Intake manifolds 2 single plane

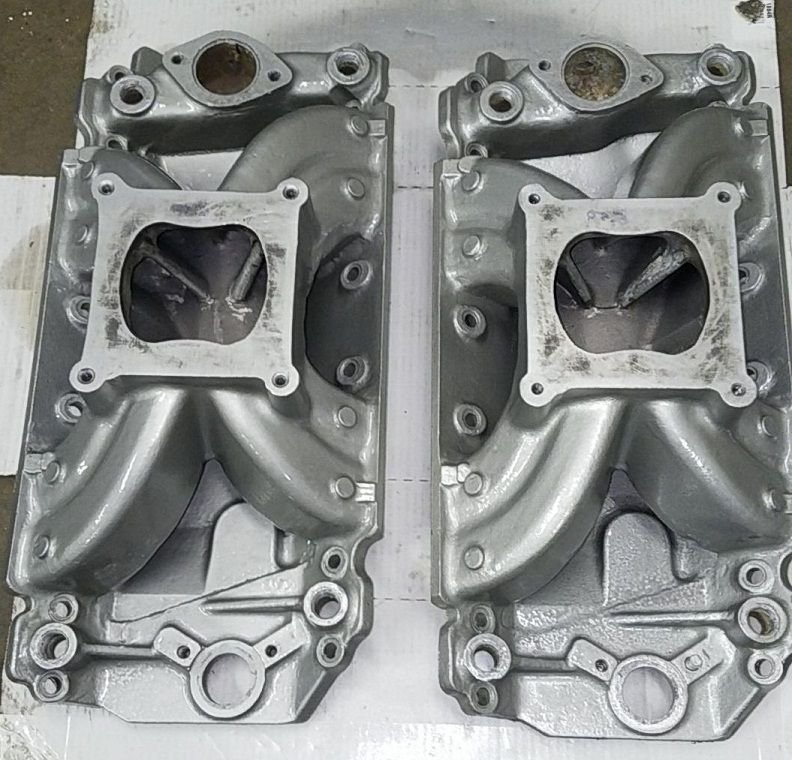

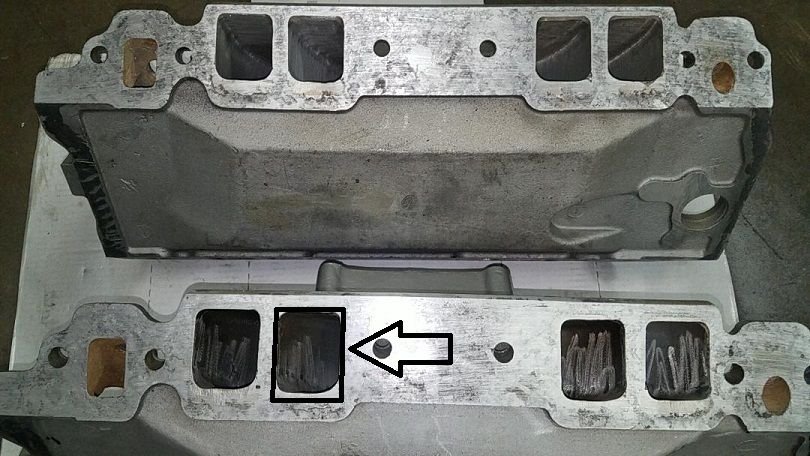

I have 2 Professional Products Hurricane single plane manifolds. The floors have been filled in on these intakes. I drew over 1 ports to show the reference of where gasket would go and how much floor is filled. I have run these since 2012 and now going EFI so no longer needed. $200 ea + shipping
I also have a Weiand Stealth dual plane with the floors also welded up. $175
.
Professional Products Big Block Chevy Hurricane Satin Intake Manifold (53031)
.




Last edited by Rookie; 12-10-2020 at 09:39 PM.
Rookie is offline
Reply
Old 01-10-2021 | 06:00 PM
  #2
Rookie's Avatar
Thread Starter
Registered
20 Year Member

Joined: Jan 2003
Posts: 6,020
Likes: 1,522
From: Grand Rapids, MI
Default

Sunday TTT
Rookie is offline
Reply
Old 01-11-2021 | 08:51 PM
  #3
Registered
Active Streak: 30 Days
25 Year Member

Joined: Oct 2000
Posts: 1,513
Likes: 600
From: Lake Ozark, MO USA
Default

What is the issue or advantage of having them "welded up"?
Helmwurst is offline
Reply
Old 01-11-2021 | 09:19 PM
  #4
Rookie's Avatar
Thread Starter
Registered
20 Year Member

Joined: Jan 2003
Posts: 6,020
Likes: 1,522
From: Grand Rapids, MI
Default

Originally Posted by Helmwurst
What is the issue or advantage of having them "welded up"?
My heads are custom ported and have the floors of the intakes welded up. This decreases the intake volume, but ported to flow as much or more air than larger intakes volumes. This increase port velocity in turn increases HP and TQ. This is kinda like the old school round intake on rectangle port heads to add performance, but a perfect matching combination. I can grind out the weld to match a rectangle head, but my head guy said it would be a minor benefit to someone with conventional rectangle port heads. And to grind it out if they want it removed. If you look at the pic you can see that my intake ports have the raised floors and look more square.
.

Rookie is offline
Reply
Old 01-12-2021 | 06:57 PM
  #5
Registered

Joined: Jan 2021
Posts: 3
Likes: 0
Default

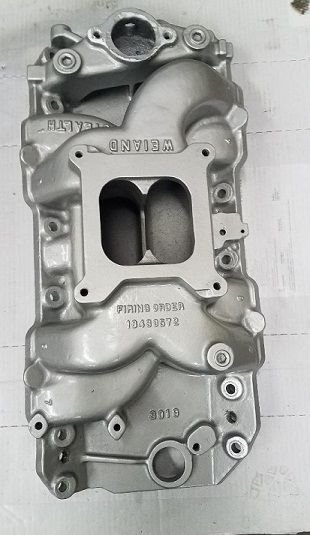

Is that a Weiand 8019? It looks like it, but hard to tell in the pic. Would it work for stock oval port heads on an l29?
thormx11 is offline
Reply
Old 01-12-2021 | 08:42 PM
  #6
Registered
Active Streak: 30 Days
25 Year Member

Joined: Oct 2000
Posts: 1,513
Likes: 600
From: Lake Ozark, MO USA
Default

Originally Posted by Rookie
My heads are custom ported and have the floors of the intakes welded up. This decreases the intake volume, but ported to flow as much or more air than larger intakes volumes. This increase port velocity in turn increases HP and TQ. This is kinda like the old school round intake on rectangle port heads to add performance, but a perfect matching combination. I can grind out the weld to match a rectangle head, but my head guy said it would be a minor benefit to someone with conventional rectangle port heads. And to grind it out if they want it removed. If you look at the pic you can see that my intake ports have the raised floors and look more square.
.
Thanks for the lesson on the intakes ! PM me I would like to find out if this would be beneficial for my application.
Helmwurst is offline
Reply
Old 01-12-2021 | 10:48 PM
  #7
Rookie's Avatar
Thread Starter
Registered
20 Year Member

Joined: Jan 2003
Posts: 6,020
Likes: 1,522
From: Grand Rapids, MI
Default

Originally Posted by thormx11
Is that a Weiand 8019? It looks like it, but hard to tell in the pic. Would it work for stock oval port heads on an l29?
Yes, it is the older style 8019. I have no idea if it would work on an L29 head. It might be too tall. I don't know if it would seal.
Originally Posted by Helmwurst
Thanks for the lesson on the intakes ! PM me I would like to find out if this would be beneficial for my application.
OK
Rookie is offline
Reply
Old 04-03-2022 | 08:18 PM
  #8
Rookie's Avatar
Thread Starter
Registered
20 Year Member

Joined: Jan 2003
Posts: 6,020
Likes: 1,522
From: Grand Rapids, MI
Default

Ttt
Rookie is offline
Reply
Old 12-23-2025 | 08:54 PM
  #9
Rookie's Avatar
Thread Starter
Registered
20 Year Member

Joined: Jan 2003
Posts: 6,020
Likes: 1,522
From: Grand Rapids, MI
Default

Ttt
