IMI high TQ starter $175
02-05-2024 | 07:00 PM
#1
Thread Starter
Registered
Joined: Jun 2009
Posts: 9,988
Likes: 6,483
From: Chicago

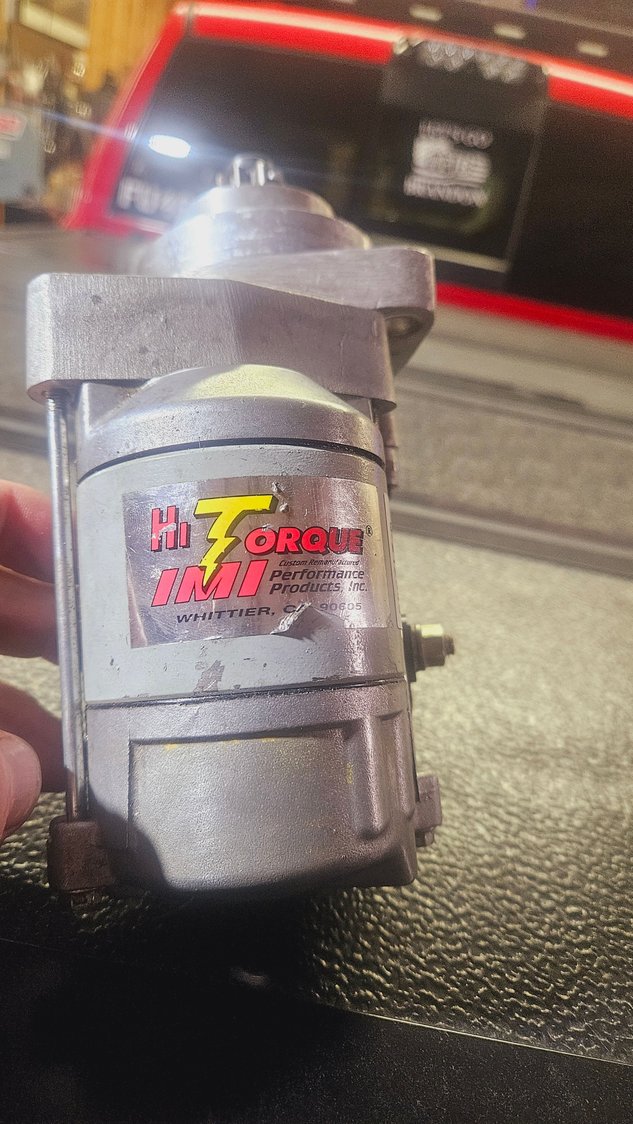

IMI high TQ starter $175

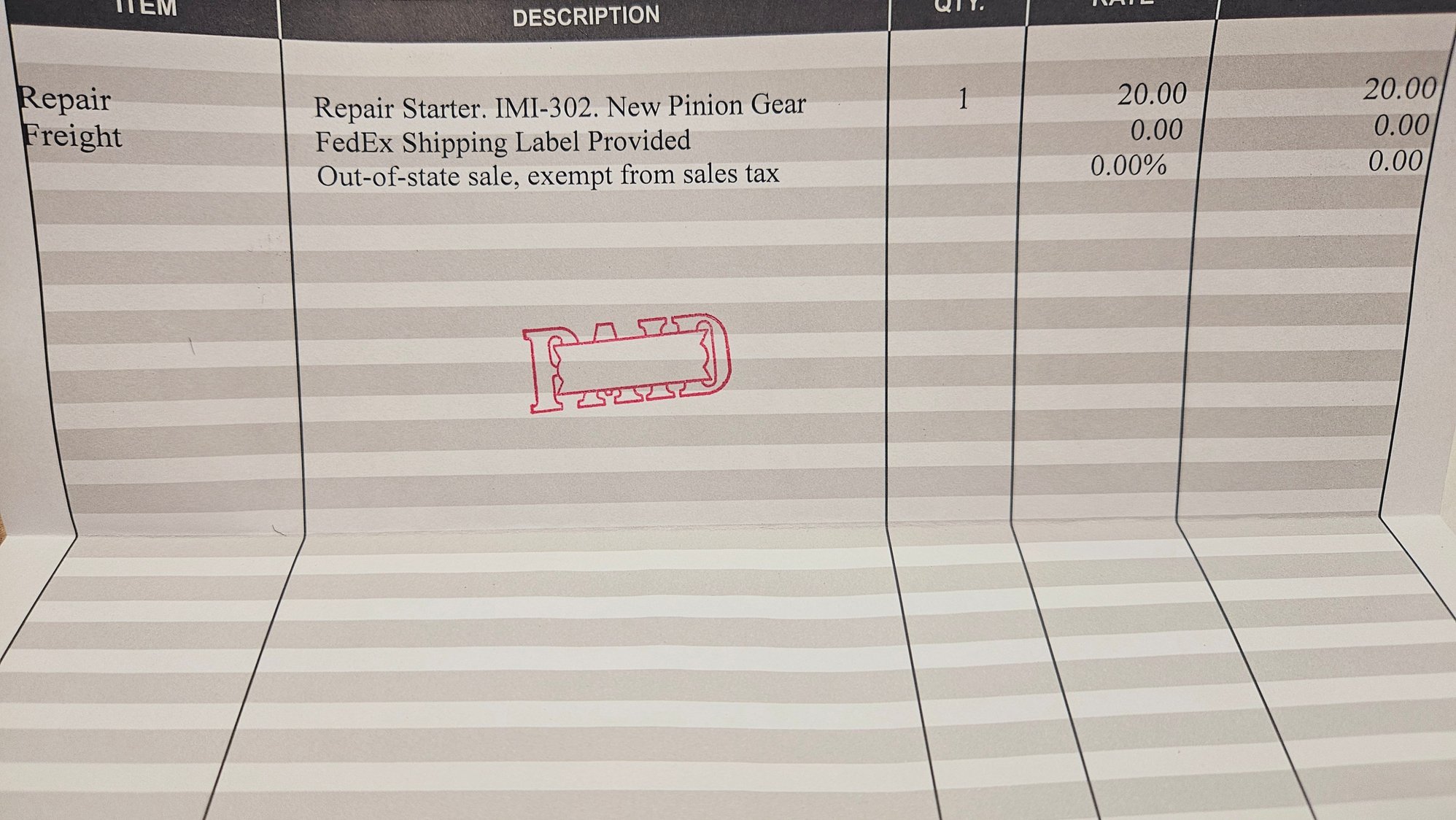

Spare part no longer needed, checked by IMI and never used.
Top mount
IMI-302S
https://www.rareelectrical.com/i-268...7-meo6003.html
Top mount
IMI-302S
https://www.rareelectrical.com/i-268...7-meo6003.html
Last edited by ICDEDPPL; 02-05-2024 at 07:05 PM.
02-06-2024 | 10:09 AM
#2
Registered
Joined: Feb 2009
Posts: 8,356
Likes: 1,515
From: NW Michigan

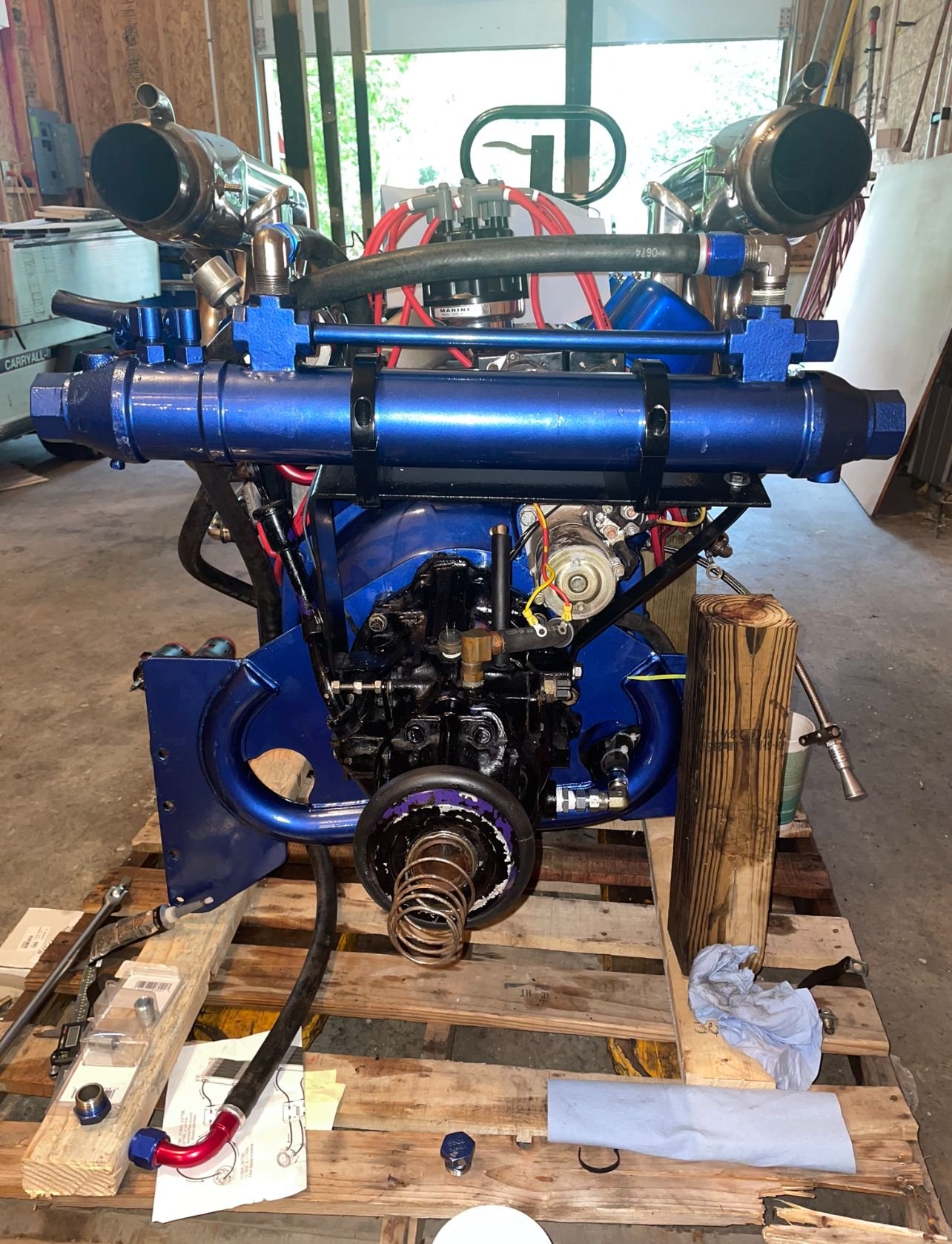

Dan - just a couple questions on starter. Solenoid looks different. Wire hook up the same? Seems like mine has about 3 14g wires in addition to bat post. It’s been a while though. Also first pic shows top left mount. I’ve only had a handful of top mount bell housings but I’m assuming there universal so to speak on some or many. Pic of mine!
Tks John
Tks John
Last edited by getrdunn; 02-06-2024 at 10:15 AM.
02-06-2024 | 10:36 AM
#3
Thread Starter
Registered
Joined: Jun 2009
Posts: 9,988
Likes: 6,483
From: Chicago
Hey John,
Same wiring, 12+ from battery and then a spade plug for the coil power.
Looks the same as far as mounting .. you can loosen and rotate the front hub for different mounting options
I have spacers for proper depth if needed also .
Usually I use a paint marker on the gear to see engament with flywheel, then adjust if needed. IMI has those specs on their site I believe .it`s the same as for any starter thou.
I actually drilled a hole on top of the bellhousing so I could see engament.
Same wiring, 12+ from battery and then a spade plug for the coil power.
Looks the same as far as mounting .. you can loosen and rotate the front hub for different mounting options
I have spacers for proper depth if needed also .
Usually I use a paint marker on the gear to see engament with flywheel, then adjust if needed. IMI has those specs on their site I believe .it`s the same as for any starter thou.
I actually drilled a hole on top of the bellhousing so I could see engament.
