Old 08-17-2020, 08:35 PM
  #11
Registered
Thread Starter

Join Date: Jun 2008
Location: Fond du Lac, WI
Posts: 247
Received 9 Likes on 7 Posts
Default

Originally Posted by Sydwayz
So many options...

I have squeezed a big Pontoon boat under a 10' tall door by taking the tires off of one of two axles. All the weight settles on the one axle, to slide under the door; then put the other two tires on.

You can lower the tongue of the trailer to the ground, with a cheap adjustable drop hitch, or buy a drop hitch for a lifted truck. That could lower your windscreen (highest point) by 6" or more.

You can let air out of the tires to the point that they barely roll.

You could back the boat onto the garage floor, then take the wheels/tires off, and set the trailer frame on machinery movers. Or you could set the axles down on tire dollies.

If you have a gravel driveway, you can dig out at the right distance where the REAR axle of the truck dips down enough that the windscreen clears the garage door.

You could do a combination of the above.
all concrete nice and smooth... with a tri-axle... i kinda like the machinery movers... just have to clear the windshield and golden... 14' ceiling height.... have to make something work for free climate controlled winter storage....
30outlaw is offline
Old 08-17-2020, 08:59 PM
  #12
21 and 42 footers
Platinum Member

t500hps's Avatar

Join Date: Sep 2004
Location: Richmond VA
Posts: 8,183
Received 119 Likes on 61 Posts
Default

Can you widen the bunks on the trailer a bit which will lower the boat down into the trailer. Might not be enough but that combined with letting air out might get you inside.
t500hps is offline
Old 08-17-2020, 09:27 PM
  #13
Registered
Thread Starter

Join Date: Jun 2008
Location: Fond du Lac, WI
Posts: 247
Received 9 Likes on 7 Posts
Default

good idea, but no welded bunk supports
30outlaw is offline
Old 08-17-2020, 09:35 PM
  #14
Registered
Thread Starter

Join Date: Jun 2008
Location: Fond du Lac, WI
Posts: 247
Received 9 Likes on 7 Posts
Default

ill add a photo for reference.... no im not trying to clear the bimini, and the rookie sticks are long gone! had the boat for 2 hours before i was backing it in...

30outlaw is offline
Old 08-17-2020, 10:30 PM
  #15
Registered
iTrader: (1)

Join Date: Oct 2013
Location: SF Bay Area
Posts: 2,886
Received 143 Likes on 95 Posts
Default

That rear crossbar will probably be a *****. I’d try taking the front four wheels off/air out the tires, and also air down the truck’s rear tires. That should get the windshield as low as possible.
Baja Rooster is offline
Old 08-18-2020, 06:37 AM
  #16
Registered

Join Date: Oct 2010
Location: Hemlock, MI
Posts: 922
Received 127 Likes on 74 Posts
Default

With that windshield being ahead of the axles, pull off front two tires and buy longest drop hitch that clears ground with tongue weight on it, betting that will get you really close! Deflate other tires to get the rest.
Gimme Fuel is offline
Old 08-18-2020, 06:50 AM
  #17
21 and 42 footers
Platinum Member

t500hps's Avatar

Join Date: Sep 2004
Location: Richmond VA
Posts: 8,183
Received 119 Likes on 61 Posts
Default

I agree. With the rig in front of the garage, back trailer tires up on a ramp so you cam easily remove the front 4 tires. Figure out how much drop hitch you can use and have it already lowered as much as possible. With all the weight on the back tires and the hitch an inch or so from the ground I suppose it will back into the garage and clear. Try not to make any turns rigged like that!
t500hps is offline
Old 08-18-2020, 07:20 AM
  #18
Forum Regulator
VIP Member
iTrader: (1)

Sydwayz's Avatar

Join Date: May 2001
Location: Worldwide
Posts: 23,828
Received 1,195 Likes on 519 Posts
Default

Originally Posted by Gimme Fuel
With that windshield being ahead of the axles, pull off front two tires and buy longest drop hitch that clears ground with tongue weight on it, betting that will get you really close! Deflate other tires to get the rest.
Originally Posted by t500hps
I agree. With the rig in front of the garage, back trailer tires up on a ramp so you cam easily remove the front 4 tires. Figure out how much drop hitch you can use and have it already lowered as much as possible. With all the weight on the back tires and the hitch an inch or so from the ground I suppose it will back into the garage and clear. Try not to make any turns rigged like that!
And hit it with speed. It will go in just fine. And it will probably come out just fine in the spring too if you hit it hard enough in the fall
​​​​​​​Take video.
Sydwayz is offline
The following users liked this post:
Padraig (08-18-2020)
Old 10-05-2020, 10:01 AM
  #19
Registered
Thread Starter

Join Date: Jun 2008
Location: Fond du Lac, WI
Posts: 247
Received 9 Likes on 7 Posts
Default

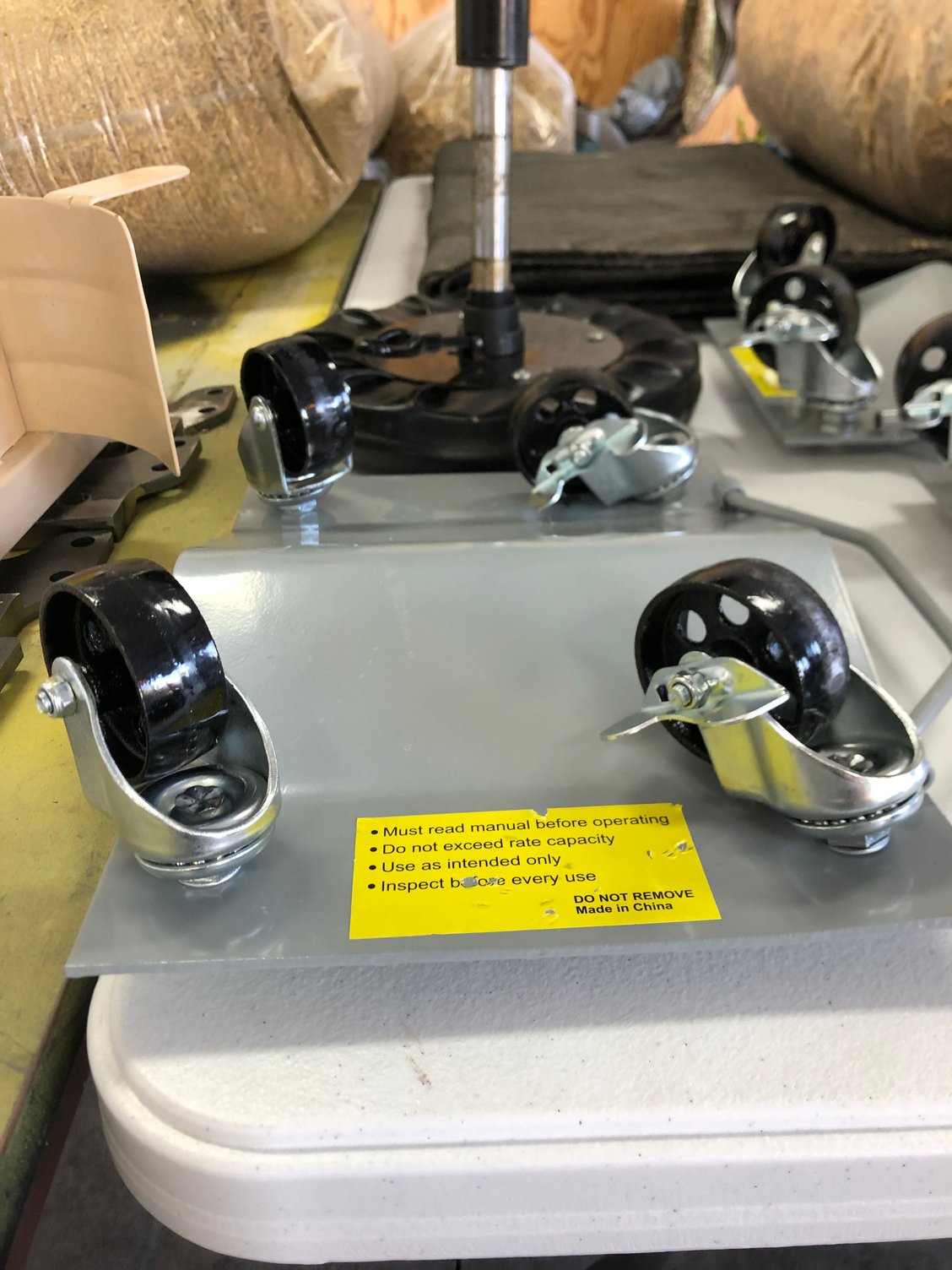

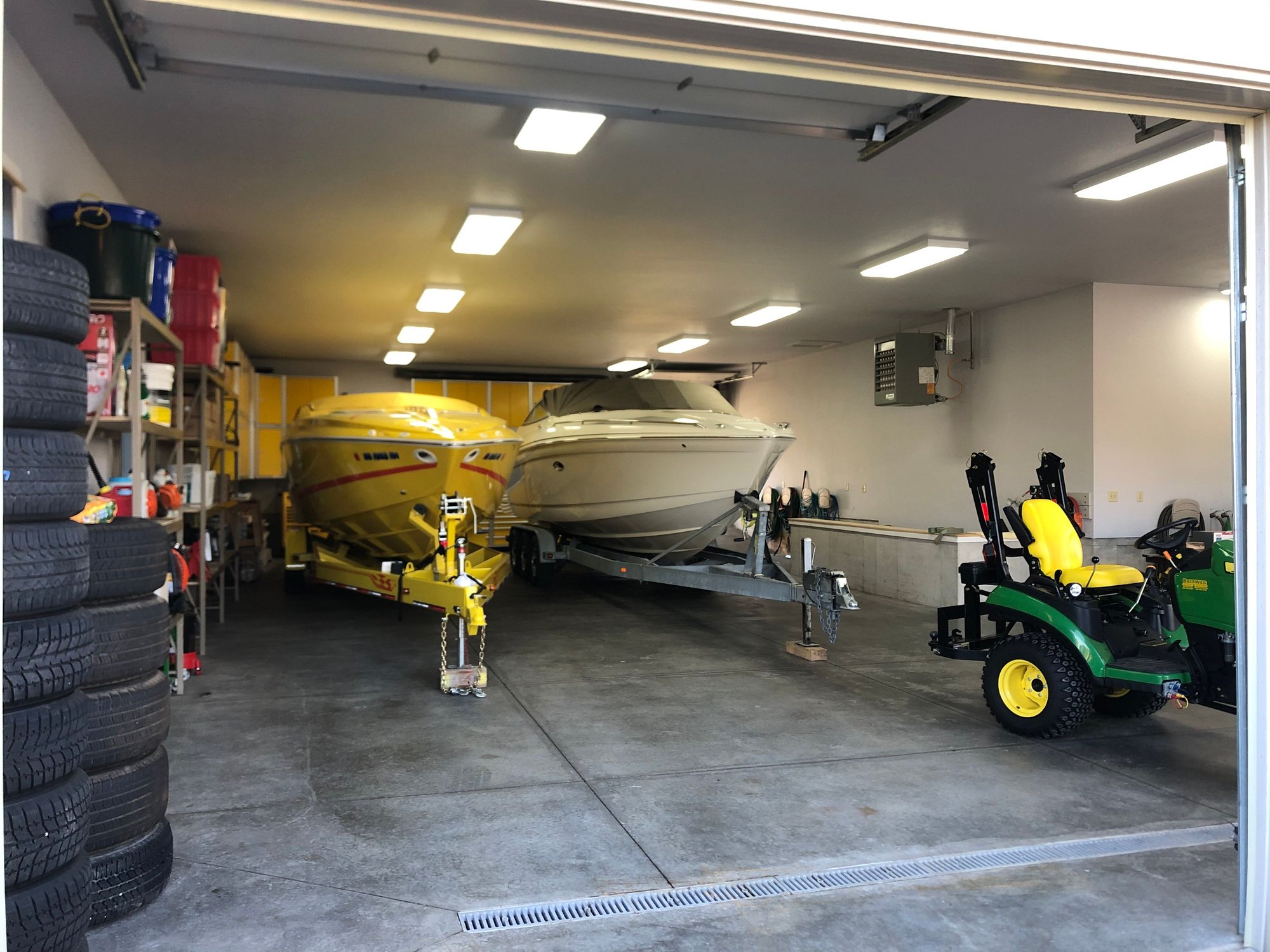

well got it in! used a 6" drop receiver and plenty of room! was planning on using car dolly's to push it to the side to make room for the second boat... that didn't go so well as soon as I lowered the boat the dolly's failed, supposed to be 2K each dolly proved that spec wrong! had the random thought why not try the tractor, low range moved the boat with ease! it of course would support the tongue weight so I just used a floor jack and threw a movers dolly under it.
















30outlaw is offline
The following 2 users liked this post by 30outlaw:
Gimme Fuel (10-05-2020), Padraig (10-05-2020)
Old 10-05-2020, 10:44 AM
  #20
Platinum Member
Platinum Member
iTrader: (6)

F-2 Speedy's Avatar

Join Date: May 2012
Location: Midwest & T-Rock
Posts: 10,412
Received 3,040 Likes on 1,353 Posts
Default

made in china, what did you expect.......
F-2 Speedy is offline
The following 2 users liked this post by F-2 Speedy:
30outlaw (10-05-2020), Gimme Fuel (10-05-2020)
