Bunks for 38 zr
Anybody have any pics or dimensions for their boat lift bunks. What is your thoughts as to having straight or stepped bunks. By dimensions I am referring to a height and width mounted on your lift.
Thanks
Thanks
03-05-2017, 08:35 PM
#2
Registered
iTrader: (1)

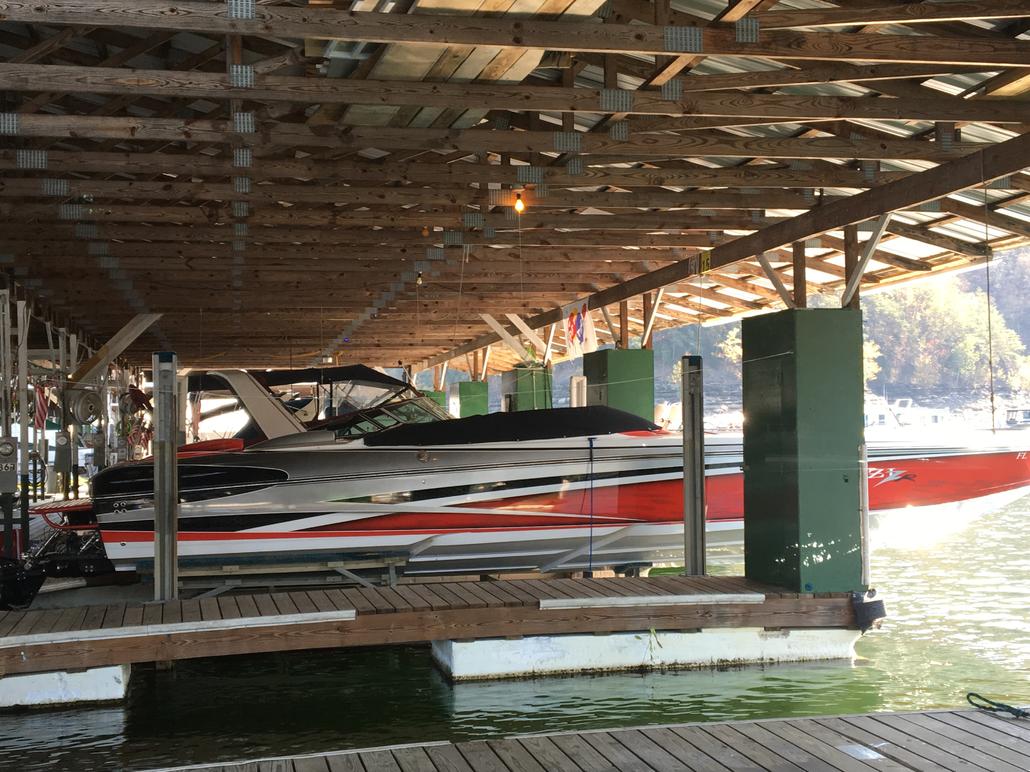

Not a very good pic but you get the gist. The important thing is to support it only on the flat surfaces and keep the bunks off the edges of chines or you will dull the edges - and boards that span between the steps are not advised. I have two sets of bunks on each side that catch the hull in the rear step then a V to catch the bow - and again, I adjusted mine to keep them from resting on the edges.
Last edited by Marginmn; 03-06-2017 at 10:06 AM.
04-20-2017, 09:01 PM
#3
Registered
Join Date: Jan 2014
Location: Chesterfield, VA
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
JLS,
Did you ever get those dimensions for the bunk spacing for your 38?
I have a buddy with a 38 ZX who just installed a lift and needs to know the answer to the same question...how far do they need to be spaced apart and did you end up making adjustments for the steps?
Did you ever get those dimensions for the bunk spacing for your 38?
I have a buddy with a 38 ZX who just installed a lift and needs to know the answer to the same question...how far do they need to be spaced apart and did you end up making adjustments for the steps?
04-25-2017, 06:27 PM
#5
Registered
Email me and I might be able to get drawings for you. Myco will have the dimensions on file for their trailers/ bunks. We own 4 Mycos trailers and 2 cradles that we've had them build us new, so surely they can do me a favor. I dont think they are a classified secret, as I have the drawings from them for the 4 we have.
Kevint.ppm at gmail dot com
Kevint.ppm at gmail dot com
04-25-2017, 08:43 PM
#6
Registered
Thread Starter
Join Date: Apr 2003
Location: Wisconsin
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
05-01-2017, 10:22 AM
#7
Registered
Join Date: Jun 2014
Location: Fenelon Falls, ON
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
28 ZX Bunks
[email protected]. That would be great and thanks for the help.
Thank you
Stew
stew dot low at bell dot net
05-01-2017, 01:07 PM
#8
Registered
Join Date: Jan 2014
Location: Chesterfield, VA
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
We were able to get the boat lift adjusted this weekend for a 38' ZX.
Roughly, the bunks on the lift were 10" tall. So, from the center of the lift cross member to the inside of the bunk needs to be 21". The inside to inside measurement for the bunks should be 42" total. Using trig, you can now calculate the exact length of the remaining sides and angles.
Side 1: 22.649" opposite angle: 90 deg
Side 2: 8.485" opposite angle: 22 deg
Side 3: 21" opposite angle: 68 deg
With this information you can now determine that using a 10" tall bunk there should be approximately 1.515" of space between the keel and the lift cross member. Bringing the bunks closer together would increase the gap between the keel and the lift cross member.
Hope this helps!
