Where should AFR readings be for MPI 509 >

Where should AFR readings be for MPI 509

Notices

Where should AFR readings be for MPI 509

Old 05-29-2018, 05:36 PM
  #1
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2009
Location: KY
Posts: 2,912
Received 87 Likes on 73 Posts
Default Where should AFR readings be for MPI 509

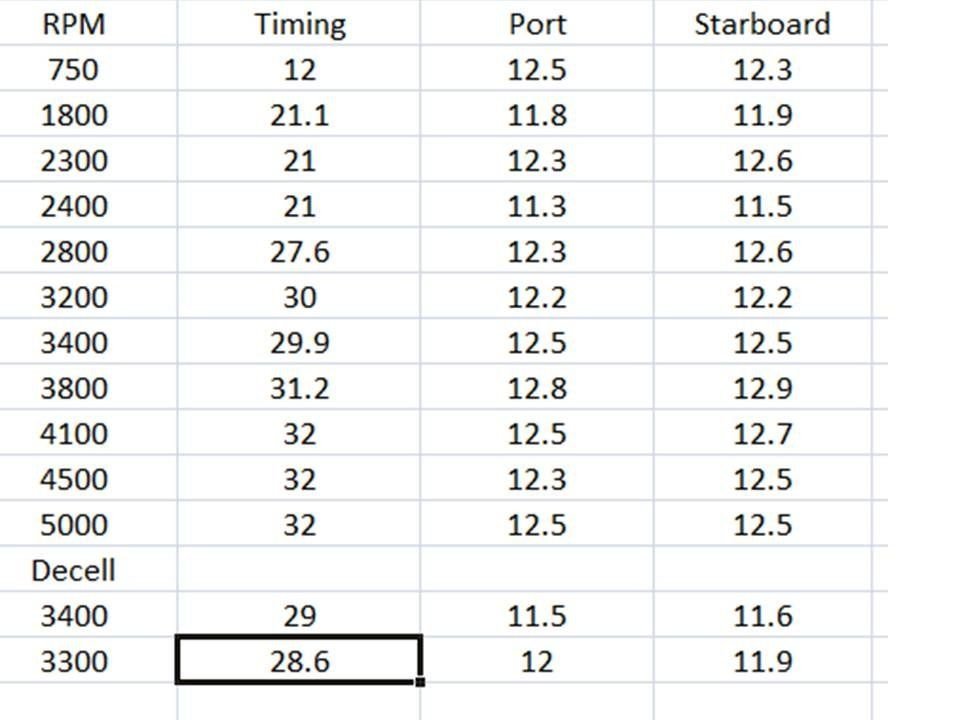

Been seeing some dark soot on my tips and started doing some testing. Picked up MEFI Burn and FAST Dual AFR setup. This is a 509 with around 500 hp at the prop on a 11K boat (real heavy). Saw a carb thread (Smitty's) and after posting but then realized again I should not have said anything. In any case I'm trying to figure out if there is any tuning I might try. Do plan to turn my code 44 flag OFF. Here are my readings

AllDodge is offline
Old 05-29-2018, 06:24 PM
  #2
Platinum Member
Platinum Member

jeff32's Avatar

Join Date: Jun 2004
Location: St-Hyacinthe, quebec, canada
Posts: 7,028
Received 46 Likes on 33 Posts
Default

Is nt the goal to be around 12-13 for most if not each engines? I thought so at least!
jeff32 is offline
Old 05-29-2018, 06:31 PM
  #3
Registered

Join Date: Oct 2012
Posts: 1,435
Received 40 Likes on 24 Posts
Default

You need to know what the load or vacuum is at the different rpms also.
underpsi68 is offline
Old 05-29-2018, 07:20 PM
  #4
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2009
Location: KY
Posts: 2,912
Received 87 Likes on 73 Posts
Default

This is a single engine setup, so the one motor is really working hard with a B3 drive. I can put a vacuum gauge on but have not seen the vacuum readings before when dealing with AFR's. The O2 sensor is reading how well the fuel is burning to my understanding, so how does knowing the vacuum give more info ? Not saying its not good to know, just don't understand the correlation
AllDodge is offline
Old 05-29-2018, 08:54 PM
  #5
Registered

Join Date: Jun 2011
Posts: 1,048
Received 19 Likes on 16 Posts
Default

Originally Posted by AllDodge View Post
Been seeing some dark soot on my tips and started doing some testing. Picked up MEFI Burn and FAST Dual AFR setup. This is a 509 with around 500 hp at the prop on a 11K boat (real heavy). Saw a carb thread (Smitty's) and after posting but then realized again I should not have said anything. In any case I'm trying to figure out if there is any tuning I might try. Do plan to turn my code 44 flag OFF. Here are my readings

You aren't out of line drastically in any regime. I would tweak things a little if so inclined.

Specifically in the 750 rpm band I would lean out to 13.5-13.8.

The 1800-2400 rpm band the boat is transitioning from a displacement hull to a planing hull, hence a fairly high load (MAP). You might pull a little fuel, and I mean a little fuel around 1800 but only if knock is under control.

2400 rpm is rich for my taste. I'd shoot for 12.5 -12.8.
The rest looks fair to me. Splitting hairs if you want to change things.

Don't touch the decel range. They will virtually always show rich unless you really shrink the BPW in the 40kPa or less column(s) which I don't recommend.
Trash is offline
Old 05-30-2018, 08:10 AM
  #6
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2009
Location: KY
Posts: 2,912
Received 87 Likes on 73 Posts
Default

Appreciate your thoughts
AllDodge is offline
Old 05-30-2018, 11:27 AM
  #7
Registered
iTrader: (1)

Join Date: Oct 2013
Location: SF Bay Area
Posts: 2,739
Received 54 Likes on 41 Posts
Default

I expected a stock Merc tune to be more in the 11s. That’s a better map than I would’ve guessed.
Baja Rooster is offline
Old 05-30-2018, 11:38 AM
  #8
Registered
Thread Starter
iTrader: (1)

Join Date: Nov 2009
Location: KY
Posts: 2,912
Received 87 Likes on 73 Posts
Default

It isn't stock, it was tune by Eddie a few years ago. Since then I have stripped the hull and epoxy painted
AllDodge is offline
Old 05-30-2018, 08:00 PM
  #9
Registered
iTrader: (8)

Join Date: Nov 2006
Location: Tygart Lake, WV
Posts: 1,161
Received 11 Likes on 10 Posts
Default

Originally Posted by Trash View Post
You aren't out of line drastically in any regime. I would tweak things a little if so inclined.

Specifically in the 750 rpm band I would lean out to 13.5-13.8.

The 1800-2400 rpm band the boat is transitioning from a displacement hull to a planing hull, hence a fairly high load (MAP). You might pull a little fuel, and I mean a little fuel around 1800 but only if knock is under control.

2400 rpm is rich for my taste. I'd shoot for 12.5 -12.8.
The rest looks fair to me. Splitting hairs if you want to change things.

Don't touch the decel range. They will virtually always show rich unless you really shrink the BPW in the 40kPa or less column(s) which I don't recommend.
I agree. Lean out the idle. I would not mess with anything else. Remember your seeing the average of 4 cylinders. You can still have a lean cylinder and show an average of mid 12s.
Ryan00TJ is offline
Old 05-30-2018, 09:05 PM
  #10
Registered
iTrader: (1)

onesickpantera's Avatar

Join Date: Feb 2005
Location: Michigan
Posts: 4,341
Received 8 Likes on 3 Posts
Default

Originally Posted by AllDodge View Post
This is a single engine setup, so the one motor is really working hard with a B3 drive. I can put a vacuum gauge on but have not seen the vacuum readings before when dealing with AFR's. The O2 sensor is reading how well the fuel is burning to my understanding, so how does knowing the vacuum give more info ? Not saying its not good to know, just don't understand the correlation
It helps as the engine needs more fuel when it's under a heavier load. My friends engine will pull 2-3" of vacuum at 3000 rpms getting in plane but once on plane pull 8-9". Needs more fuel getting in plane than when cruising at that rpm .

If you have mefiburn use the scanner to see how much load you are putting on the engine with the MAP readings. Very valuable tool.

Last edited by onesickpantera; 05-30-2018 at 09:09 PM.
