Default Drilling out Arctic Cat helix bolts Help

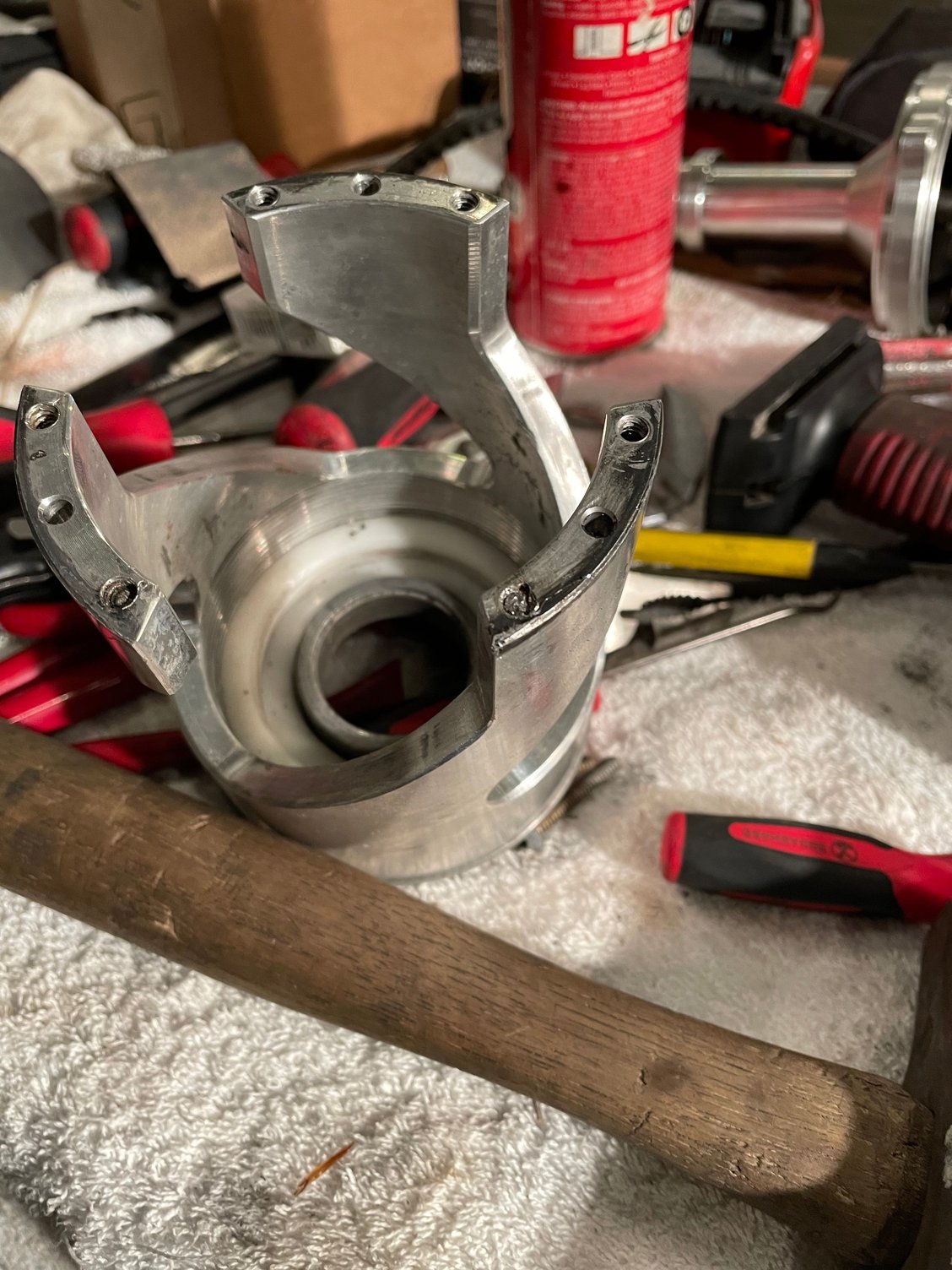

Got a sled yesterday with a bad secondary. Got it home and figured out what was wrong. Got everything in good shape now other than extracting the three broken off bolts in the helix. Tried drill-press and with the small bit it just wants to bend the bit. Tried heat with a pick and thatís a no go also. Any ideas. Yeah I know I come across some fked up chit bit Tks in advance.


getrdunn is offline
Old 01-05-2022, 04:26 PM
  #2
Registered

SABER28's Avatar

Join Date: Aug 2002
Location: jenison mi
Posts: 1,189
Received 208 Likes on 78 Posts
Default

try setting a small nut on top and welding it to the broken off bolt.
SABER28 is offline
The following 4 users liked this post by SABER28:
Gimme Fuel (01-06-2022), resurrected (01-06-2022), SB (01-05-2022), sutphen 30 (01-05-2022)
Old 01-05-2022, 04:46 PM
  #3
VIP Member
VIP Member

Join Date: Nov 2005
Location: Wichita, Kansas
Posts: 536
Received 274 Likes on 128 Posts
Default

Got get a carbide drill bit...about 5/32", it will drill through that like butter, then you can use a screw extractor (Easy-Out).
__________________
Baja 252 Islander
bajaman is offline
The following users liked this post:
RSCHAP1 (01-06-2022)
Old 01-05-2022, 04:58 PM
  #4
SB
Registered
iTrader: (1)

Join Date: Nov 2004
Location: On A Dirt Floor
Posts: 12,189
Received 1,938 Likes on 814 Posts
Default

Originally Posted by SABER28 View Post
try setting a small nut on top and welding it to the broken off bolt.
yup, and weld wonít stick too the aluminum.
SB is offline
Old 01-05-2022, 05:05 PM
  #5
Platinum Member
Platinum Member
iTrader: (6)

F-2 Speedy's Avatar

Join Date: May 2012
Location: Midwest & T-Rock
Posts: 9,057
Received 1,724 Likes on 796 Posts
Default

https://www.harborfreight.com/left-h...yABEgIpdPD_BwE
F-2 Speedy is offline
Old 01-05-2022, 05:42 PM
  #6
Registered

Join Date: Jan 2021
Posts: 233
Received 108 Likes on 59 Posts
Default

Originally Posted by bajaman View Post
Got get a carbide drill bit...about 5/32", it will drill through that like butter, then you can use a screw extractor (Easy-Out).
make sure its a reverse drill bit
carnutsx2 is offline
The following users liked this post:
Gimme Fuel (01-06-2022)
Old 01-05-2022, 05:49 PM
  #7
Registered

Join Date: Jan 2006
Posts: 2,871
Received 390 Likes on 211 Posts
Default

welding a nut is the easiest method of extraction,,do it all the time.I only drill if I need to shrink the bolt as its being welded.
sutphen 30 is offline
The following users liked this post:
SABER28 (01-07-2022)
Old 01-05-2022, 05:57 PM
  #8
Registered

Join Date: Oct 2020
Posts: 174
Received 92 Likes on 51 Posts
Default

I have removed more broken bolt with left handed drills than any extractor I have ever tried.
zfrilly is offline
Old 01-05-2022, 06:14 PM
  #9
Platinum Member
Platinum Member
Thread Starter
iTrader: (7)

getrdunn's Avatar

Join Date: Feb 2009
Location: NW Michigan
Posts: 7,816
Received 1,179 Likes on 629 Posts
Default

Iíll try the left bit. Two of them are down 5/16Ē so welding those two not fix unless Iím not a good welder. Tks
getrdunn is offline
Old 01-05-2022, 06:40 PM
  #10
Registered

Join Date: May 2011
Location: medina ohio/ sandusky ohio
Posts: 3,301
Received 15 Likes on 7 Posts
Default

Could you drill it out bigger and retap as a last resort
1989mach1 is offline
