K plane electronic indicating on simrad orVV

K plane electronic indicating on simrad orVV

Old 05-13-2020, 08:34 AM
  #1
Registered
Thread Starter

Join Date: Nov 2018
Location: Spring Hill FL
Posts: 77
Likes: 0
Received 0 Likes on 0 Posts
Default K plane electronic indicating on simrad orVV

Looking for options on how to install electronic indicating on my Kplanes to my vessel view or simrad. I do have a nema 2000 network already with engine data already on the simrad.
Gunradd is offline
Old 05-13-2020, 09:06 AM
  #2
Platinum Member
Platinum Member

flashgordon's Avatar

Join Date: Sep 2012
Location: new baltimore mi
Posts: 389
Received 5 Likes on 5 Posts
Default

hmmmm,,,i dont know about electronic indicator..sorry
i have all mechanical keikhaefer indicators.
good luck
flashgordon is offline
Old 05-13-2020, 03:38 PM
  #3
Registered

Join Date: Dec 2007
Location: Cary, IL
Posts: 164
Likes: 0
Received 1 Like on 1 Post
Default

Later style K-planes have a provision for adding Mercury senders, so you would just need the sender and hardware. Since you already have VesselView you can use the Mercury trim harness that connects both tabs to one of your engines. That will let broadcast trim tab position to VesselView and / or Simrad.

GF?
Got Freedom? is offline
Old 05-14-2020, 07:39 AM
  #4
Registered
Thread Starter

Join Date: Nov 2018
Location: Spring Hill FL
Posts: 77
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Got Freedom? View Post
Later style K-planes have a provision for adding Mercury senders, so you would just need the sender and hardware. Since you already have VesselView you can use the Mercury trim harness that connects both tabs to one of your engines. That will let broadcast trim tab position to VesselView and / or Simrad.

GF?

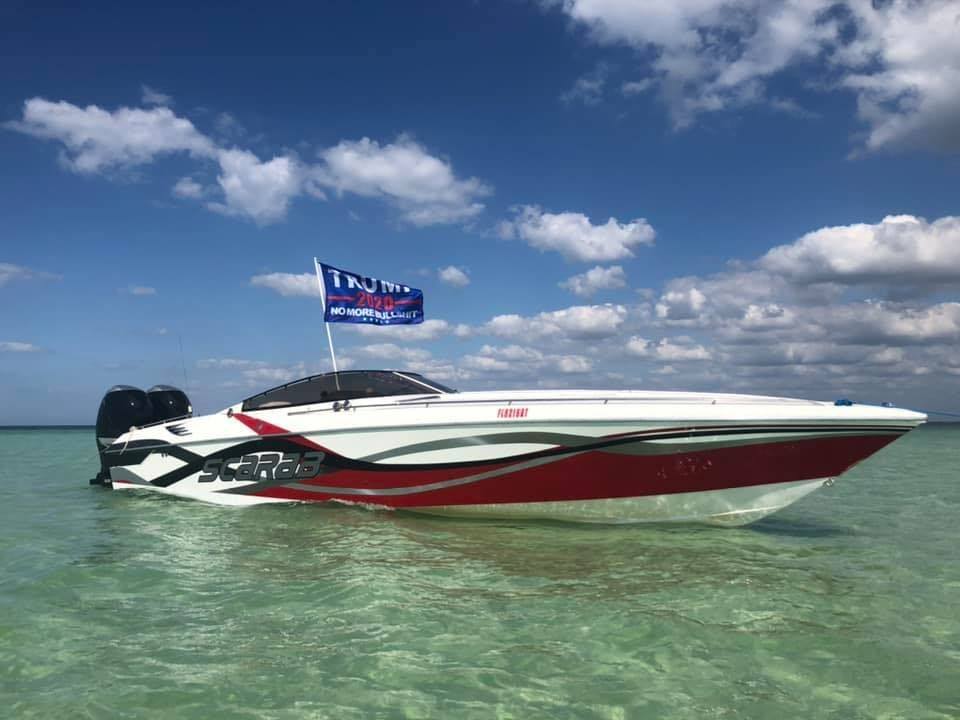

Thanks for the reply. I can get those new senders but still not sure where they get wired into the smart craft system. Will do more reading. I have an old scarab 31 excel and I converted it to twin verado outboards. I am pretty sure the tabs need their own wire harness into the nema network. Hard to find solid info but ill keep searching.


Gunradd is offline
Old 05-14-2020, 11:13 AM
  #5
Registered
iTrader: (5)

Join Date: Jul 2009
Location: Taunton Ma
Posts: 7,677
Received 34 Likes on 24 Posts
Default

Mercury has a harness and trim tab interface module that plugs into the smartcraft junction box, and the. The Vv needs to be setup as 4 engine from what I understand.
Unlimited jd is offline
Old 05-14-2020, 12:10 PM
  #6
Registered
Thread Starter

Join Date: Nov 2018
Location: Spring Hill FL
Posts: 77
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Unlimited jd View Post
Mercury has a harness and trim tab interface module that plugs into the smartcraft junction box, and the. The Vv needs to be setup as 4 engine from what I understand.

Thanks. ill look into that.

Also maybe this mayfair box will work. It converts analog to nema2000. Could use the merc sensors still I'm sure since its just a resistor.
https://www.hardin-marine.com/p-1003...ndicators.aspx
Gunradd is offline
