T-stat oil coolers
07-22-2022 | 02:04 PM
#31
Thread Starter
Registered
Joined: Feb 2009
Posts: 8,356
Likes: 1,515
From: NW Michigan
07-22-2022 | 04:24 PM
#32
Platinum Member
Joined: Feb 2001
Posts: 4,303
Likes: 1,459
From: Virginia Beach

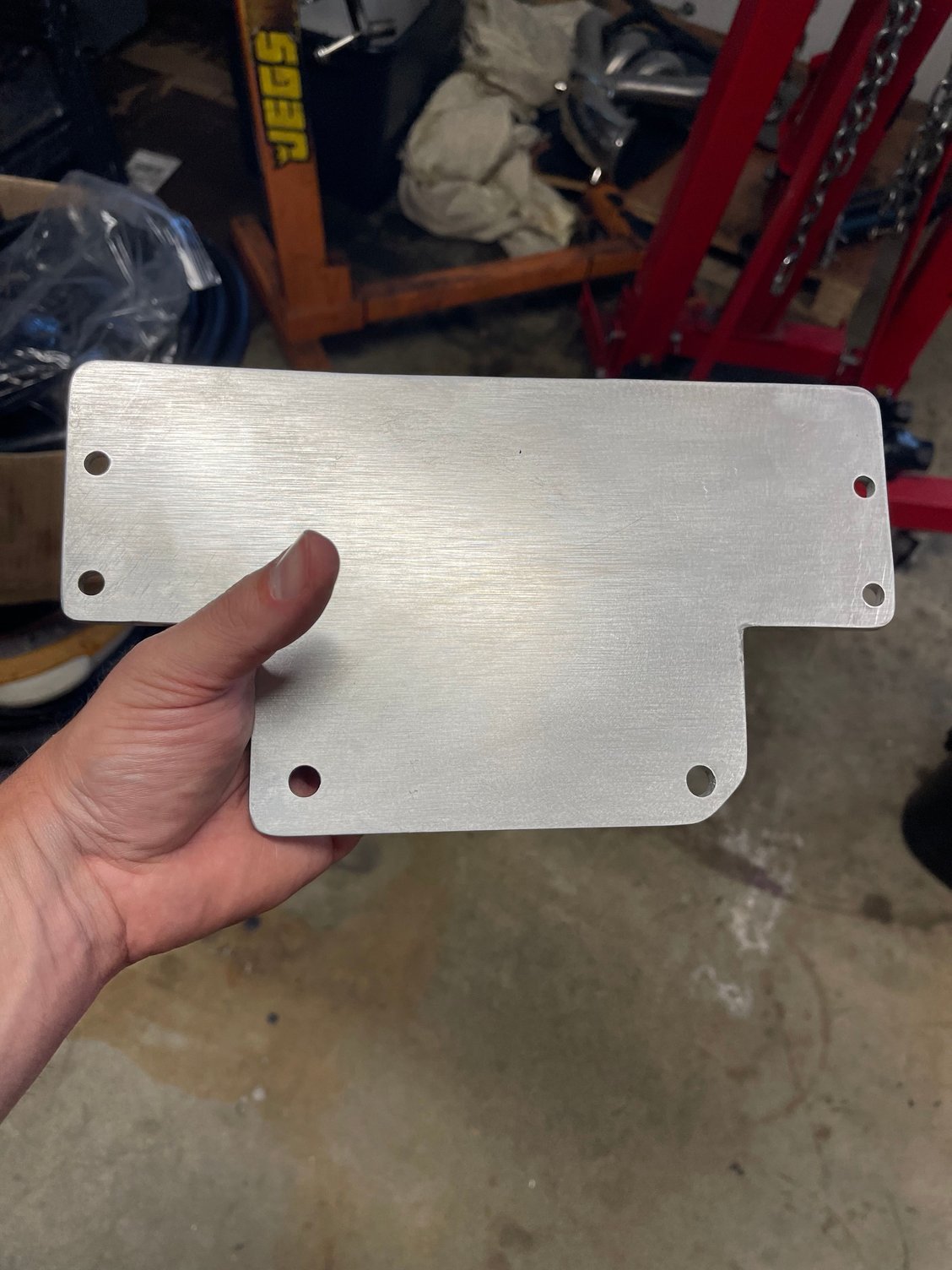

I did make the plate… 1/4-inch aluminum.

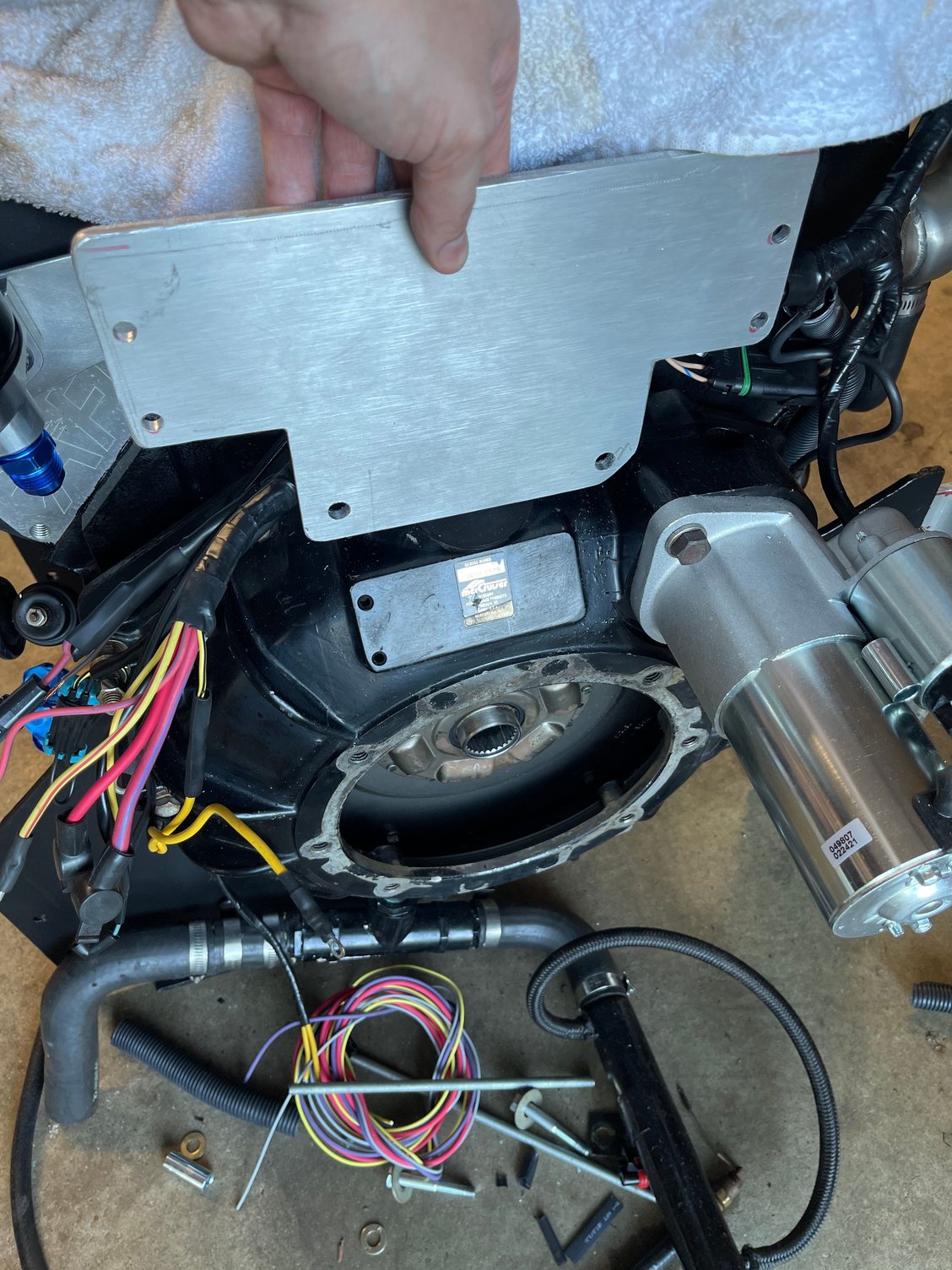

The mounts holding it to the plate are from CP Perf. I used steel bushings to give me some forward space and to strengthen the attachment. I also have the relay for my fuel pump attached to the other side. It closes up the inspection plug for the bellhousing but if I really need to get in there, I’ve got much bigger problems.
The mounts holding it to the plate are from CP Perf. I used steel bushings to give me some forward space and to strengthen the attachment. I also have the relay for my fuel pump attached to the other side. It closes up the inspection plug for the bellhousing but if I really need to get in there, I’ve got much bigger problems.
Last edited by TomZ; 07-22-2022 at 04:28 PM.
08-21-2022 | 03:59 PM
#33
Thread Starter
Registered
Joined: Feb 2009
Posts: 8,356
Likes: 1,515
From: NW Michigan
John,
Basically, hot oil comes out of the remote adapter and goes to the filter. From the filter it goes to the thermostatic control head on the cooler (left side of the picture). Output is through the other side of the cooler and then back to the remote adapter on the block. Water flow and oil flow are opposite to each other.
Pic from Mr. Cool:
Helpful?
Basically, hot oil comes out of the remote adapter and goes to the filter. From the filter it goes to the thermostatic control head on the cooler (left side of the picture). Output is through the other side of the cooler and then back to the remote adapter on the block. Water flow and oil flow are opposite to each other.
Pic from Mr. Cool:
Helpful?
Tom you meant t-state side of cooler (to the RIGHT side picture) Finally rigged, plumped etc and ready to drop in. Had to make a run downstate this weekend.
08-21-2022 | 07:10 PM
#35
Platinum Member
Joined: Feb 2001
Posts: 4,303
Likes: 1,459
From: Virginia Beach
Can’t edit it.
But yes, right side of the pic of the flow diagram.
I think I was referring to the pic of my setup above the flow diagram post.
Running today, my oil temps stayed right around 185-190.
But yes, right side of the pic of the flow diagram.
I think I was referring to the pic of my setup above the flow diagram post.
Running today, my oil temps stayed right around 185-190.
